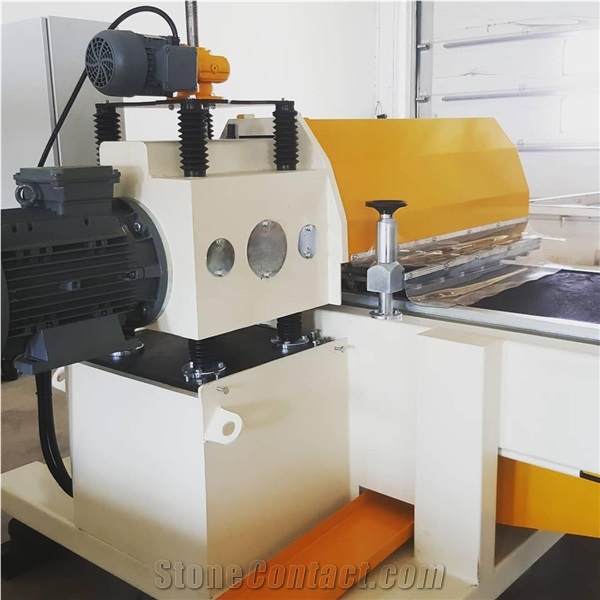

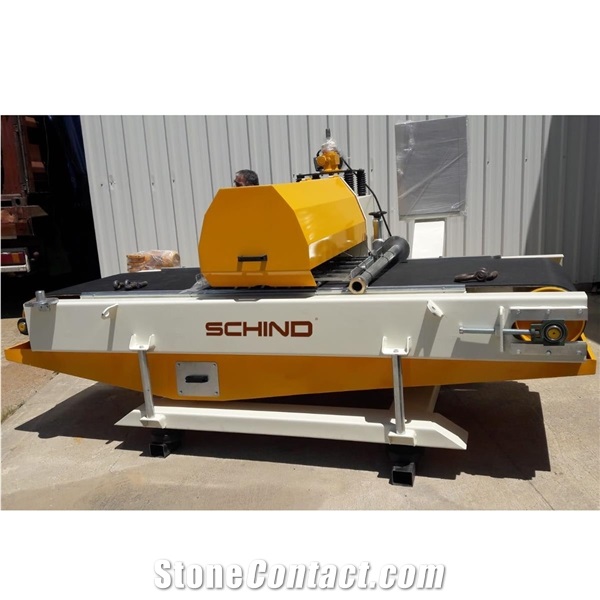

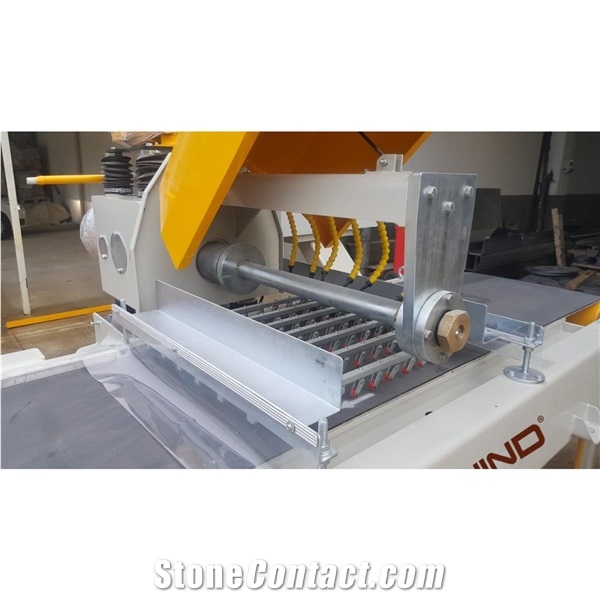

Schind MC01 Marble & Granite Multi Blade Cutting Machine
FOB Price:
Type:
Stone Factory MachinesStone Tile Cutting MachinesMulti-Blade Cross-Cutter,Trimming
Usage:
Granite, Marble, Limestone, Slate, Onyx, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation, Third-party team installation
Maintenance:Remote troubleshooting, Field troubleshooting
Supplier
Eatablished :Jan 05,2002
Main Product:
Marble Cutting, Polishing Machine, Multi Wire Gangsaw, Block Cutting, Marble Block, Diamond Tool|
Machinery Function Features
The marble or granite strips from the calibrating and polishing machine are positioned 90 ° to the saws and cut in series.
Our machine has a strong steel body structure and it is painted with epoxy paint.
Machine dimensions may be changed according to customer request. And double head is possible.
Technical Data
Parameters |
Unit |
CHK-01 |
Water requirement for each spindle |
L/min |
60 |
Machine height (H) |
mm |
2000 |
Min.Strip Machinable width |
mm |
50 |
Machine length (L) |
mm |
3550 |
Voltage |
V |
380V |
Conveyor system control motor power |
kw |
0.55 |
Max. working strip thickness |
mm |
120 |
Discs diameter |
mm |
250-350 |
Disc-holder head motor power |
kw |
22 |
Max.Strip Machinable width |
mm |
120 |
Min. working strip thickness |
mm |
10 |
Bridge advancement speed |
cm/min |
65 |
Machine width (W) |
mm |
2100 |
Disc-holder head movement motor power(first one excluded) |
kw |
0.18 |
Spindle advancement motor power |
kw |
0.75 |
Saw Speed |
c/min |
2800 |
Approximate weight |
Kg |
1500 |
Number of disc-holder heads |
nr |
Min:2 / Max: 13 |
