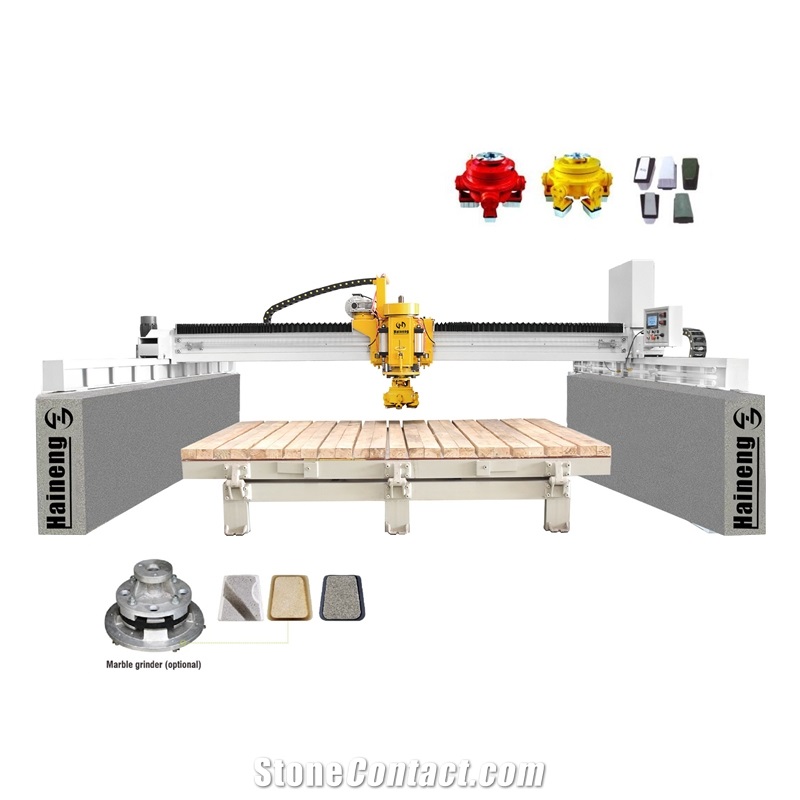

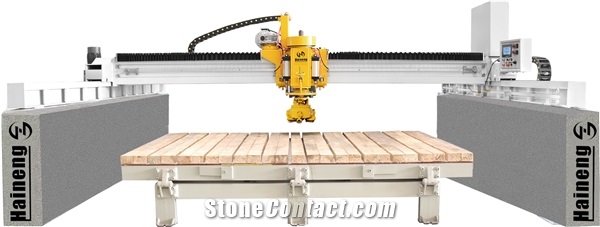

NHN Single Head Stone Polishing Machine

FOB Price:$13000-14000

Type: Stone Factory MachinesStone Surface Processing Machines Single Head Polishing Machine
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time: 20 Working Days
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Online software upgrade, Regular guidance & maintenance

Supplier

Quanzhou Xinhaineng Machinery Co,. Ltd.

Quanzhou Xinhaineng Machinery Co,. Ltd.
New Haineng

ChinaChina level4YR idicon

Eatablished :Apr 13,2017

Main Product:

Stone Machinery, Stone Cutting Machine, Stone Polishing Machine, Stone Profiling Machine, CNC Bridge Saw, Stone Engraving Machine|

Contact supplier

Start Order

You may also like
Automatic Head-Changing Single Head Grinding & Polishing Machine
Automatic Head-Changing Single Head Grinding & Polishing Machine
Mirror - CNC Single Head Polishing Machine
Mirror - CNC Single Head Polishing Machine
Gantry Type Single Head Polishing Machine
Gantry Type Single Head Polishing Machine
K-Lux Single Head Slab Polishing Machine for Workshop
K-Lux Single Head Slab Polishing Machine for Workshop
Bridge Type Automatic Single Head Polishing Machine
Bridge Type Automatic Single Head Polishing Machine
  • Overview
  • Components
  • Video
Machinery Function Features
Widely used for surface grinding & polishing, such as tombstones, slabs with Automatic operation. Machine for Granite or marble is available to your choice.
Technical Data
Parameters
Unit
NHN Single Head Stone Surface Polishing Machine
Power of single polishing head
kw
15
Spindle rotation speed
r/min
2900
Slabs max. processable width
mm
2000
Slabs max. processable length
mm
3200
Y axis stroke
mm
3200
Machine overall length
mm
5800
X axis stroke
mm
2100
Standard voltage
Volt
380
Compressed air min. pressure
bar
0.35-0.5
Number of polishing head
nr
1
Approx. Weight
Kg
4500
Machine overall height
mm
2450
Diameter of polishing heads/plates
mm
470
Machine overall width
mm
3200
Installed total power
kw
21.6
Z axis stroke
mm
150
Polishing slabs efficiency
m2/h
3-3.5

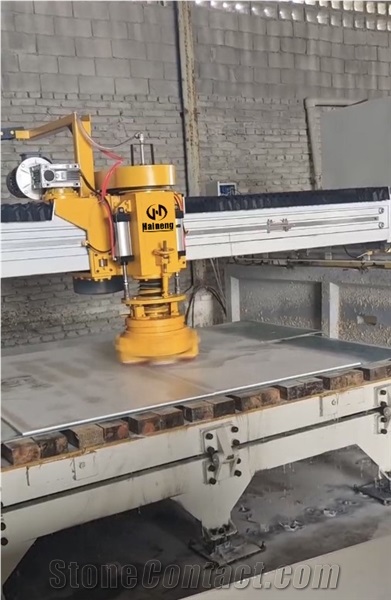

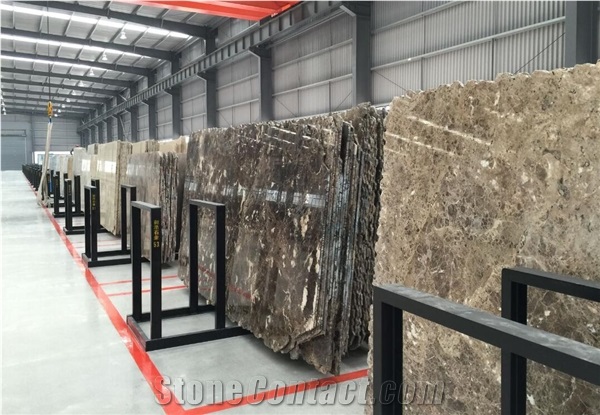

Processed Stone Photos
  • Processed Stone Photos

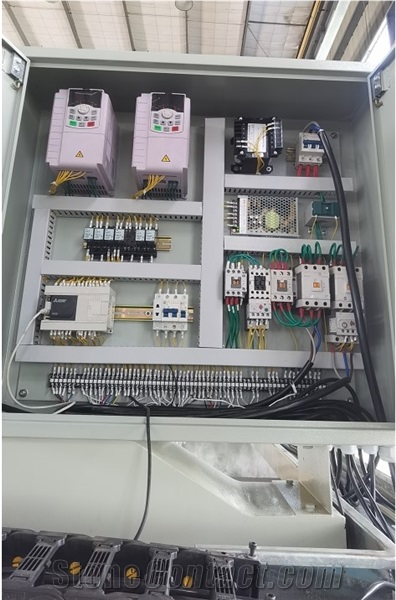

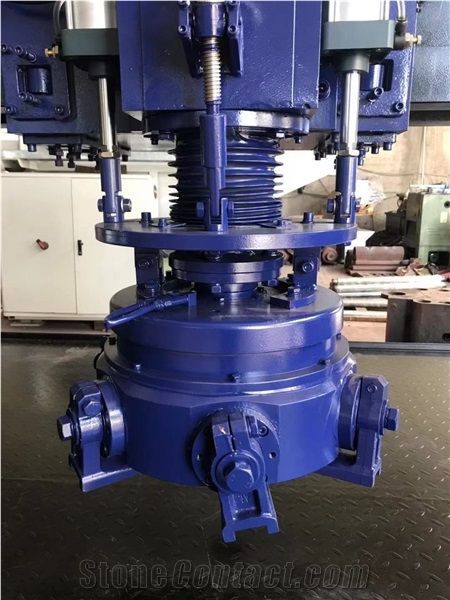

Components

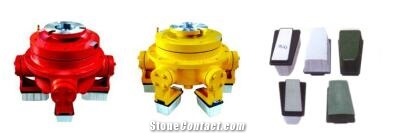

Consumables
Video

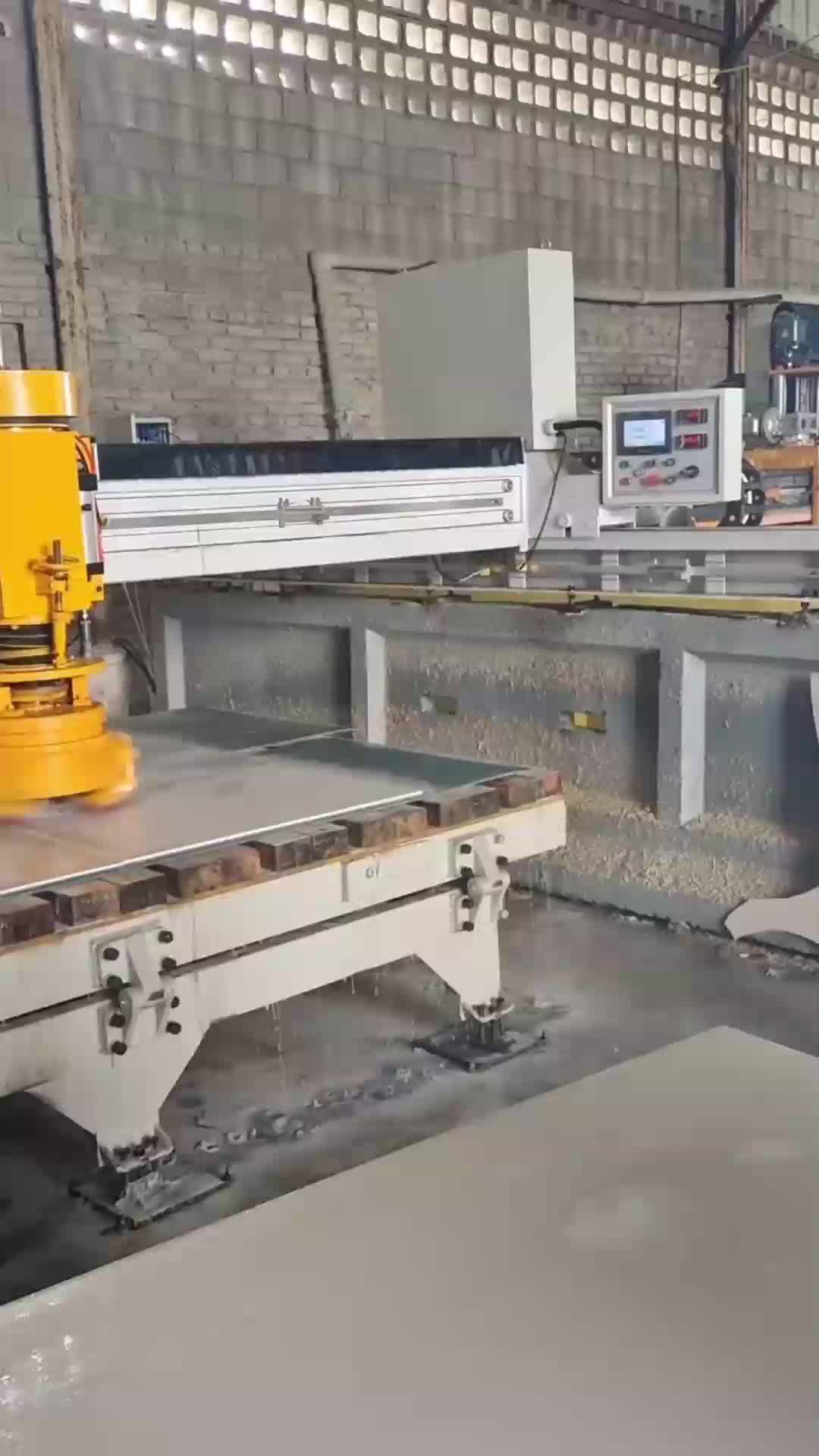

Operation Video Screen.PrimaryScreen.Bounds.Height
