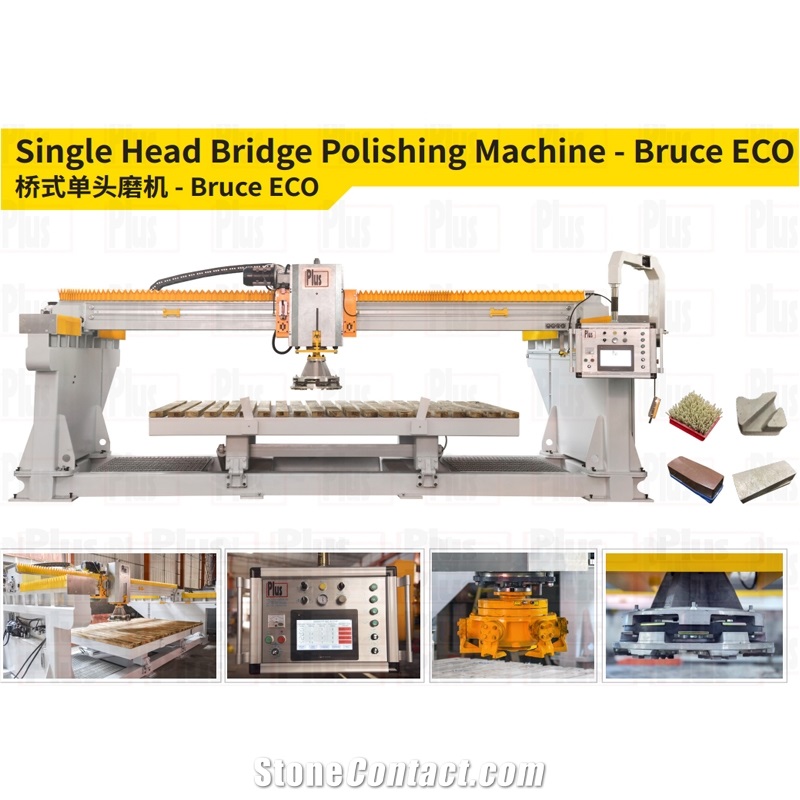

Single Head Bridge Polishing Machine - Bruce ECO

FOB Price:$15000-23000

Type: Stone Factory MachinesStone Surface Processing Machines Single Head Polishing Machine
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time: 3 weeks
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation, Third-party team installation
Maintenance:Online software upgrade, Regular guidance & maintenance, Remote troubleshooting, Field troubleshooting

Supplier

STONEPLUS MACHINERY CO.,LTD

STONEPLUS MACHINERY CO.,LTD
Stoneplus

ChinaChina idicon

Eatablished :Aug 15,2007

Main Product:

Bridge Cutter, Multi Head Polishing Line, Mitre Saw, Block Cutter, CNC Working Center, Waterjet Cutter|

Contact supplier

Start Order

You may also like
Mirror - CNC Single Head Polishing Machine
Mirror - CNC Single Head Polishing Machine
Bridge Type Single Head Polisher Machine
Bridge Type Single Head Polisher Machine
Round Cake Single Head Polishing Machine
Round Cake Single Head Polishing Machine
Single Head Polishing Machine With Auto Change Heads Function
Single Head Polishing Machine With Auto Change Heads Function
K-Lux Single Head Slab Polishing Machine for Workshop
K-Lux Single Head Slab Polishing Machine for Workshop
  • Overview
  • Components
Machinery Function Features

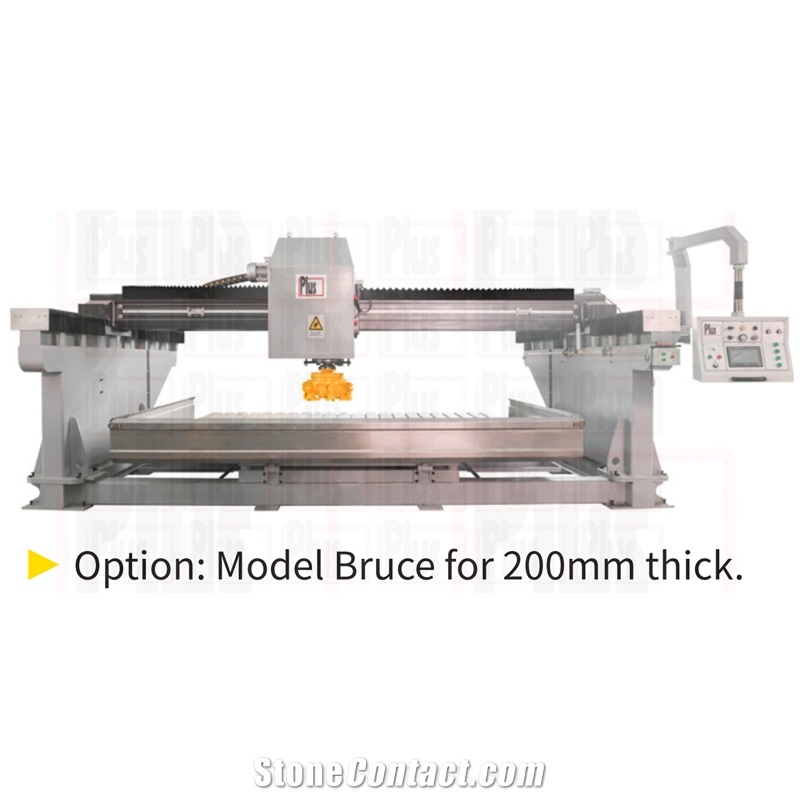

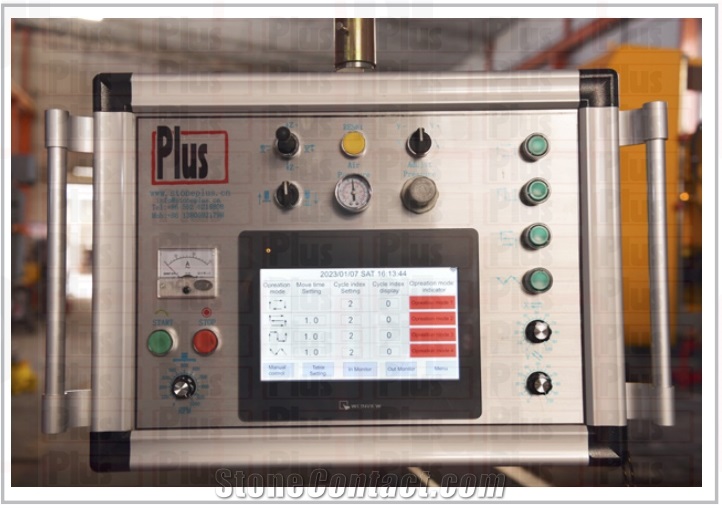

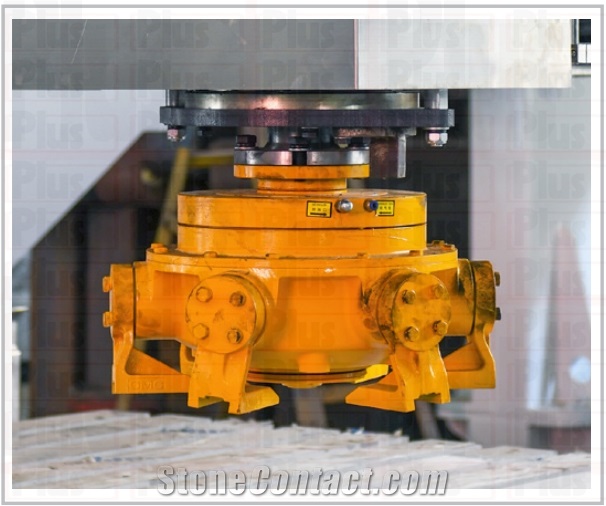

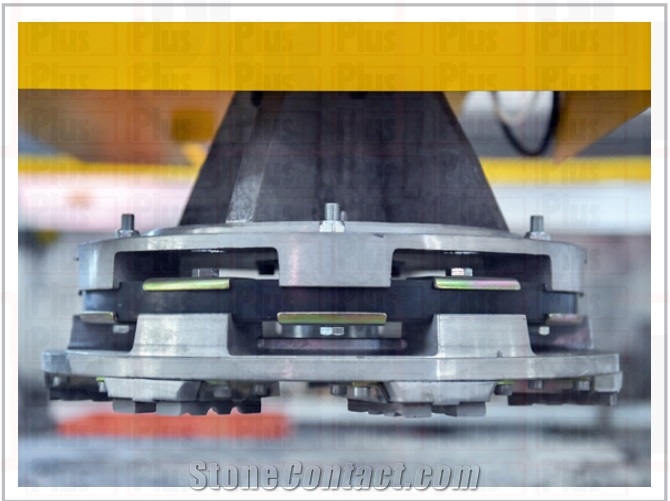

Polishes large slabs up to 3400×2000mm and 100mm thick. (customizable to over 200mm upon request) Capable of polishing granite and marble by switching the polishing head. The polishing head RPM is adjustable via an inverter, allowing it to work on all types of stone. Air pistons maintain stable pressure on the slabs for high-quality polishing. Linear guides on side rails. 4 automatic working modes. Polishes 12-16 slabs of 3200×2000mm using 5 abrasive steps within 8 hours. Optional: Automatic Head Change. Optional: Installed with a CNC system and a camera for polishing irregularly shaped slabs.

Technical Data
Parameters
Unit
Bruce ECO
Water consumption
m³/h
2
Max working thickness
mm
100 (Above 200mm on request)
Table tilting degree
°
85
Overall dimensions
mm
5800/3400/2260 H
Max working length/width
mm
3400/2000
Power of main motor
Kw
15.0
Rpm of the polishing head
Adjusted by inverter
Weigh of machine
Kg
6500
Total power
Kw
23.0
