Edge Profiling Machine-EP1
FOB Price:$3500-5000
Type:
Stone Factory MachinesStone Finishing, Profiling MachinesEdge Profiling, Polishing Machine
Usage:
Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time:
3 weeks
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation, Third-party team installation
Maintenance:Online software upgrade, Regular guidance & maintenance, Remote troubleshooting, Field troubleshooting
Supplier
Eatablished :Jan 01,2007
Main Product:
Stone Cutting Machine, Edge Machine, Stone Polishing Machine, Block Cutting Machine, Multi Edges Profiling And Polishing Machine|
You may also like
Machinery Function Features

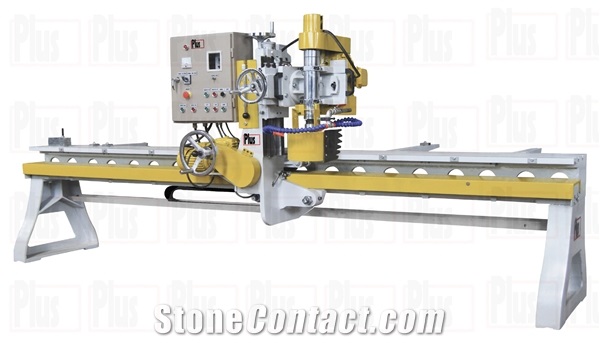

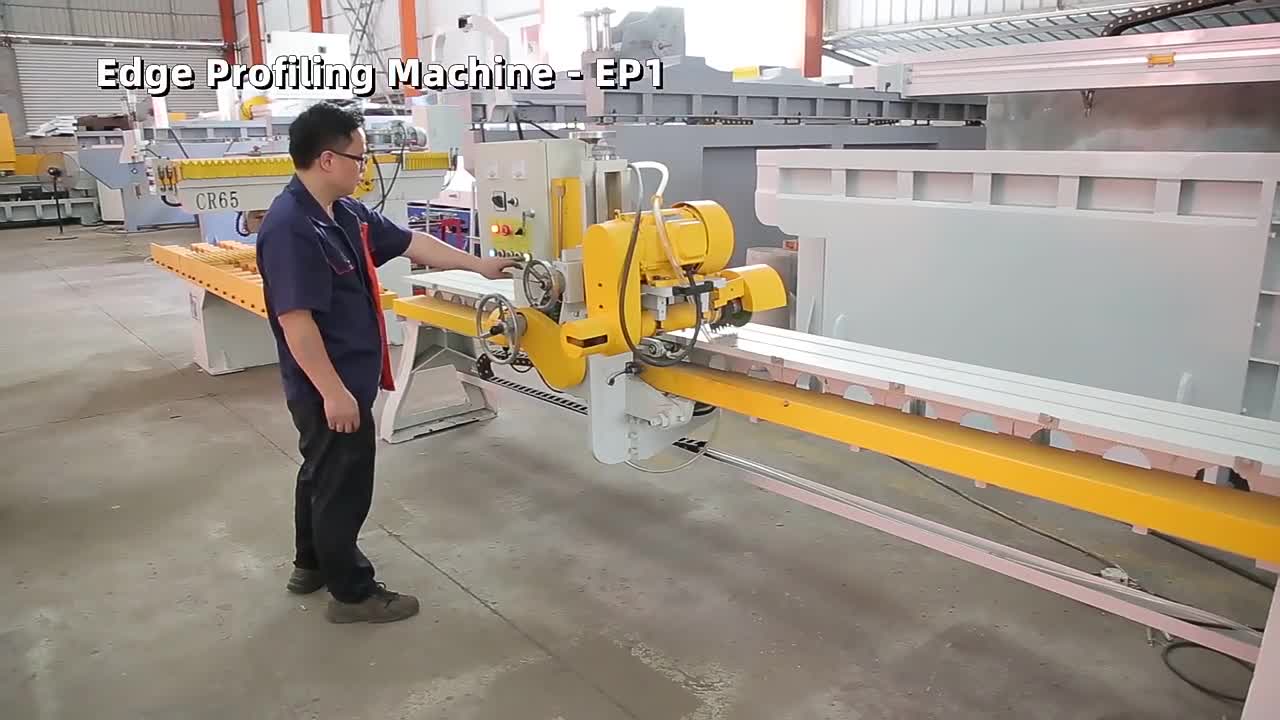

Edge Profiling Machine-EP1

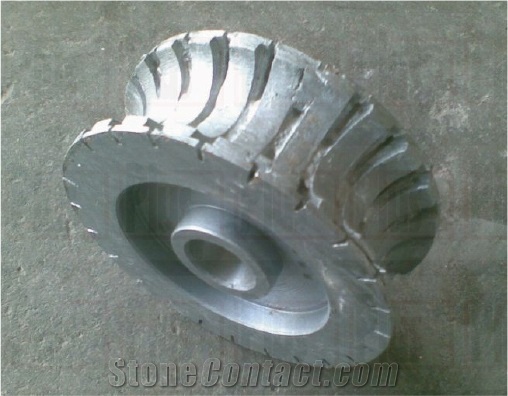

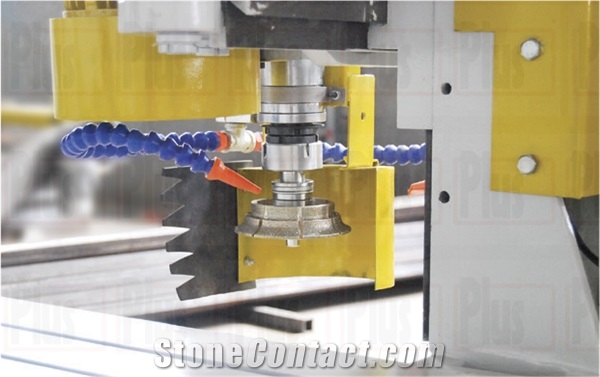

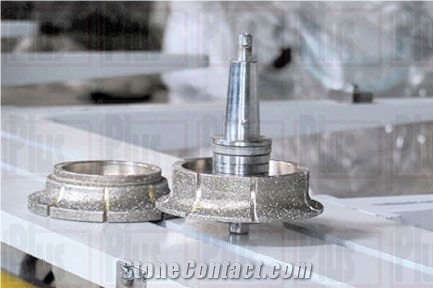

The machine is to make the edge of countertops. By using the diamond wheels of corresponding shapes,

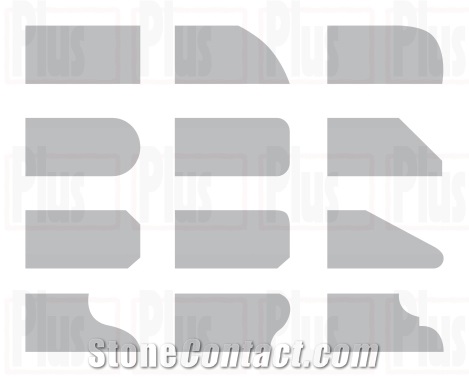

it can profile the bullnose,half bullnose, ogee, flat and etc.The pre-polishing of the edge can be done by polishing wheels.The machine can do the linear edge automatically. it can also do the arc edge by holding the arm manually.
The work feeding speed is adjustable by inverter.
Technical Data
Parameters |
Unit |
EP1 |
EP1 |
Diameter of drilling holes |
mm |
6-100 |
6-100 |
Machine dimensions |
mm |
3800/1500/1600H |
4300/1500/1600H |
Power of main motor（2 speeds） |
Kw |
4.0/3.3 |
4.0/3.3 |
Spindle speed |
rpm |
1900/3880 |
1900/3880 |
Work feeding speed |
m/min |
0.2-4.0 |
0.2-4.0 |
Cutting head tilting degree |
° |
any degree |
any degree |
Max thickness of stone |
mm |
150 |
150 |
Max length of stone |
mm |
3100 |
3600 |
Processed Stone Photos
