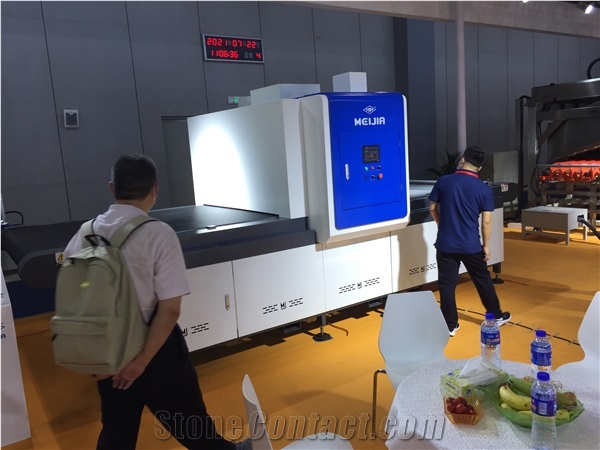

DG1323 DG Series Roller Printing Machine For Sintered Stone, Ceramic, Porcelain
FOB Price:
Type:
Artificial Stone MachinesPrinting, Decorating Machine
Usage:
Artificial Stone
After-Sale
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Online software upgrade, Regular guidance & maintenance, Remote troubleshooting, Field troubleshooting
Supplier
Eatablished :Jan 02,2017
Main Product:
Industrial Digital Printing, Artificial Stone Machine|
You may also like
Machinery Function Features
DG Series Roller Printing Machine features:
* Single/double/three turrets can be installed.
* The servo control system can adjust the height automatically and accurately.
* With protection function for stacking tiles.
* With automatic synchronization function of the belt and the roller.
* The scraper can be adjusted in both direction on the X axis and Y axis, so that the scraper is in close contact with the roller and the printing effect is better.
* Touch screen control, simple operation, real time monitoring, easy to adjust the parameter.
Technical Data
Parameters |
Unit |
DG1323 |
DG1600 |
DG2200 |
Height of printing platform |
mm |
1050+/-50 |
1050+/-50 |
1050+/-50 |
Central Distance |
mm |
1025 |
1200 |
1550 |
Machine overall height |
mm |
2200 |
2200 |
2200 |
Machine overall length |
mm |
2700 |
5100 |
5500 |
Machine approx. weight |
Kg |
1500 |
2400 |
3000 |
Max. printing speed |
m/min |
50 |
20 |
20 |
Machine overall width |
mm |
2050 |
2400 |
3100 |
Roller height |
mm |
1323 |
1600 |
2200 |
Max. Printing area |
mm |
1150 |
1400 |
1900 |
Roller diameter |
mm |
458 |
458 |
458 |
Total Power |
kw |
2.2 |
3 |
3 |
