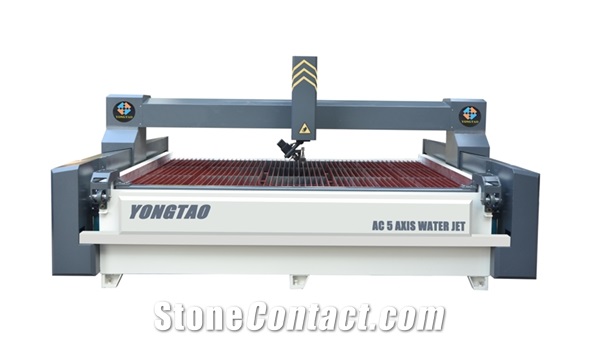

YJ-3020-5L AC 5 Axis Water Jet Marble Cutting Machine

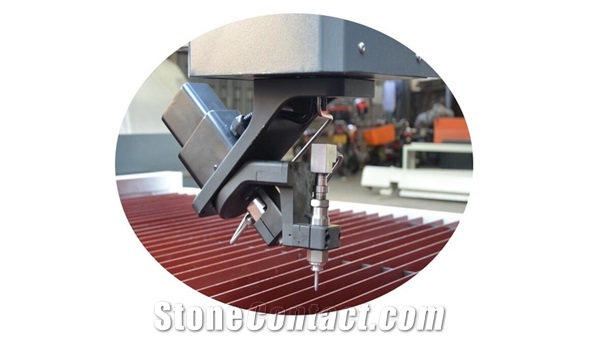

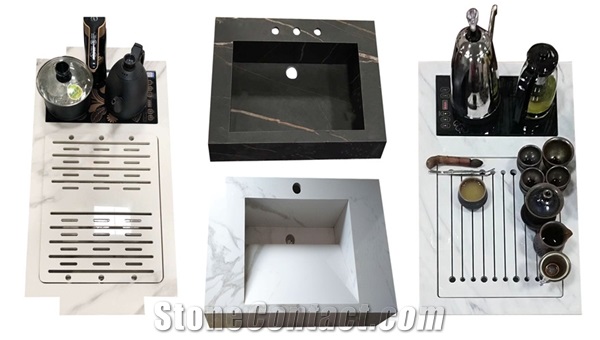

YJ-3020-5L AC 5 Axis Water Jet Marble Cutting Machine Product name: YJ-3020-5L AC 5 Axis Water Jet Marble Cutting Machine Origin: Foshan, Guangdong, China Brand name: YONGTAO Processing materials: porcelain large format tiles, rock slab, ceramic board, quartz stone, marble, stone, granite, artificial stone and other architectural decoration materials Transport method: by sea , truck , railway (container transport) AB 5 axis Water Jet Cutting Machine cutting angle: 0-10 degree AC 5 axis Water Jet Cutting Machine cutting angle: 0-55 degree Characteristic of YJ-3020-5L AC 5 Axis Water Jet Marble Cutting Machine Yongtao AC 5 Axis Water Jet Marble Cutting Machine, which is upgraded by AB 5 axis water jet cutting machine, Yongtao machine according to the market demand for research and development production of a large angle cutting of water jet cutting machine, cutting Angle can be 0-55 degrees adjusted, for example 45 degrees cutting for washbasin, rock slab table, tea table, reception desk, wardrobe and other products of cutting processing. The surface of the cutting edge won't crack, cutting effect is good, the stitching is very perfect. Drawing on the computer, it can cut out the desired shape, any curve, any graphics, can be in CAD software editing amplification, narrow. It is high precision cutting of 5 axis water jet. It is simply execute the command parameters on the computer, with a 3 axis water jet cutting machine cutting edge will not be able to process the point of view, has simple operation, easy to learn, easy maintenance, the low failure rate, and advantage in many mechanical. The main parts of machine adopts imported precision CNC machine tool processing, guarantee the accuracy of 5 axis water jet cutting machine, let the customer to buy water jet cutting machine processing products, always keep the industry leading level. On a global scale, Yongtao 5 axis water jet cutting machine has been widely applied in multiple industries, is one of the other cutting methods cannot reach cooling cutting, irreplaceability. Yongtao water jet cutting machine, is the first research and development of AC 5 axis water jet cutting machine famous manufacturer in China. In the processing of building materials products, it is your first choice of processing machinery equipment, good stability, high performance, is worth buying a 5 axis water jet cutting machine, really save labor good products. Advantages of YJ-3020-5L AC 5 Axis Water Jet Marble Cutting Machine: 1. AC 5 axis designing is adopted to realize the linkage of X, Y, Z, A and C. 2. High quality servo motor and servo driver are adopted to control cutting accuracy. 3, 0-55 degree cutting, can do large angle cutting for a variety of materials. 4. Corner cutting, can achieve the effect of linear cutting, no dead Angle, edge collapse. A set of water jet cutting configuration includes the following major components: 1. Water jet cutting table 2. CNC water jet control system 3. Abrasive supply system 4. Water jet ultra-high pressure supercharging system 5. Circulating cooling system Mechanical Package Size of YJ-3020-5L AC 5 Axis Water Jet Marble Cutting Machine 3020 AC five-axis water jet cutting table package size: 4.1m*3.2m*1.65m Package size of water jet supercharging system: 1.3m*0.95m*1.25m Package size of water jet abrasive feeding system: 0.6m*0.6m*0.95m Package size of CNC water jet control system: 0.65m*0.65m*1.67m Machine parameters YJ-3020-5L AC 5 Axis Water Jet Marble Cutting Machine Maximum cutting thickness of metal: 40mm Maximum cutting thickness of rock slab, ceramic slab, stone, glass, marble, quartz stone, granite and artificial stone: 50mm Maximum cutting size: 3000mm*2000mm Machining accuracy :±0.1mm Gem nozzle diameter: 0.33mm Nozzle size of sand pipe: 1.0mm Maximum displacement: 11.1l /min Maximum sand usage: 190g/min Maximum stroke: 60 strokes /min
