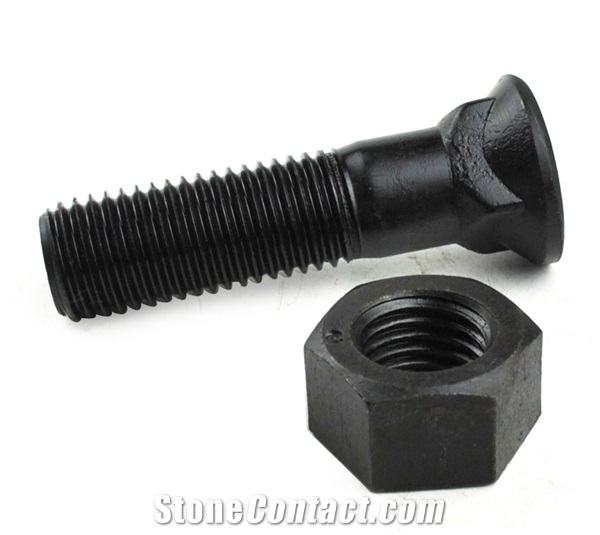

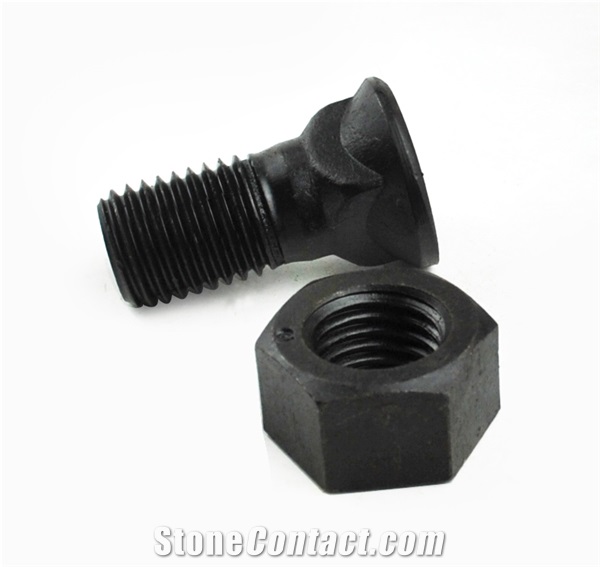

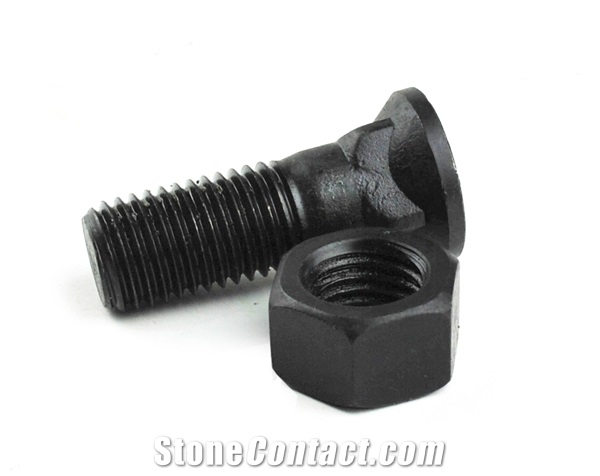

Caterpillar Excavator Track Bolt Nut And Plow Bolt Nut 6V1723/CR4135

Name: Caterpillar Excavator Track Bolt Nut And Plow Bolt Nut 6V1723/CR4135
Brand: Ningbo Fancheng Machinery Parts Manufacturer
SKU: 6428
Price: 1 USD
Availability: InStock

FOB Price:$1-2

Type: Stone Quarry MachinesQuarry Heavy EquipmentsExcavator

Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine

After-Sale

Lead Time: 15days

Warranty:12 Months

Install and Guarantee:Customer pay for installation, Remote guidance installation, Third-party team installation

Maintenance:Online software upgrade, Regular guidance & maintenance, Remote troubleshooting, Field troubleshooting

Trade Terms

Port: Ningbo- China

Delivery Details: FOB,CIF

Payment :

Supplier

Ningbo Fancheng Machinery Parts Manufacturer

China

Eatablished :May 04,2009

Main Product:

Bucket Tooth Pin Lock, Caterpillar Bucket Tooth Pin Lock, Track Bolt Nut, Plow Bolt Nut, Komatsu Bucket Tooth Pin Lock, Excavator Bucket|

Contact supplier

Start Order

You may also like

SD30U Mini Excavator

The Crawl Type Excavator For Quarry

EXCAVATOR SWING GEARBOX E320C

SWIVEL BUCKET (TILTING)

5KC3SB,5KC3M Bucket Chisel Tooth And Adapter

Product Detail
Company Profile

Overview
Components
Video
Trade Terms
Customer Case

Machinery Function Features

Minimum Order Quantity: 500 PCS HRC:38°-42° Material:40Cr Place of Origin: Ningbo,China Certification: ISO9001:2008 Packaging Details: Carton box + Wooden case Delivery Time: 25-30 days after confirmation of the order Payment Terms: T/T Supply Ability: 500 tons per month

Technical Data

Parameters	Unit	Caterpillar track bolt
Maximum Vertical Wall Digging Depth	mm	200
Maximum Reach - Ground Level	mm	200
Minimum Loading Height	mm	100
Bucket capacity	m3	1

Work Example

Ningbo Fancheng Machinery Parts Manufacturer(Fancheng for short)is located in Ningbo,a well-konwn port city of China.Fancheng is an export-oriented enterprise,specializing in producing engineering machinery parts which include excavator bucket tooth pins and fasteners like bolts and nuts.it was established in 2002 and covers an area of 8000 sq.m. with a building area of 5000 sq.m.Fancheng has total 100 staffs.including 15 technical persons and 2 senior engineers. Our Products are exported to dozens of countries and areas such as North America,South America,Europe,Middle East and Australia.

Mainly include:

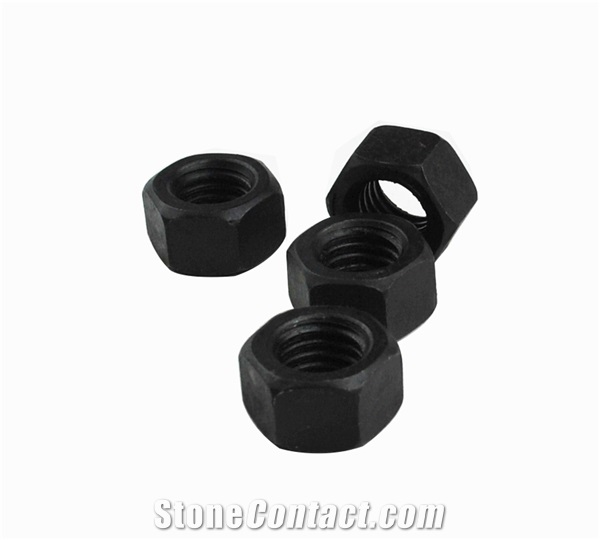

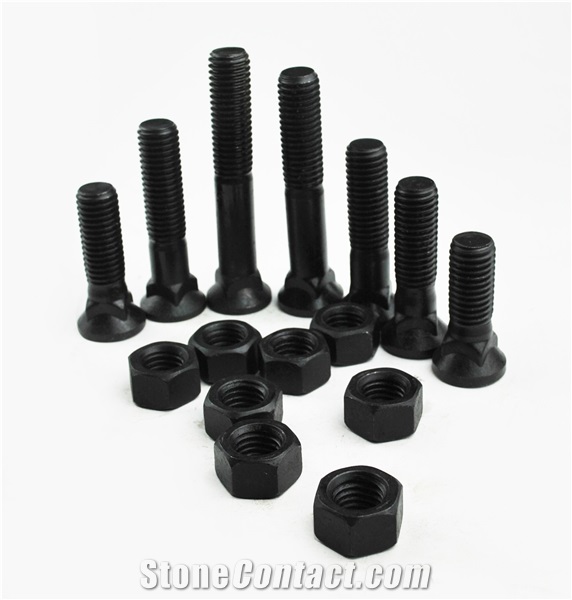

Track Bolt & Nut:

Part No Dimension Wgt. (kgs)

8H7504 1/2"UNF-20X38" 0.06KG

R24688 1/2"UNF-20X40 W 0.07KG

Ac231/70097287 1/2"UNF-20X48 B 0.07KG

In2760/616191C 1/2"UNF-20X48" 0.07KG

2A3223 2"UNF-20X47" 0.08KG

AC1119/70644688 1/2"UNF-20X49 B 0.4KG

6S3419/Ft888 1/2UNF-20NUT(19z15) 0.04KG

4K7038 1/26"UNF-18X42 0.1KG

Ac82/R15309 9/16"UNF-18UNFx49 B 0.11KG

7H3596/CR429 9/16"UNF-18X51 0.11KG

I N1199/61699C1 9/16"UNF-18X51 0.12KG

5P4684/CR3623 9/16"UNF-18X73 0.14KG

5A3187 9/16"unf-18X76 0.15KG

F T2728/76015987 9/16"unf-18X85 B 0.16KG

7K2017/CR1968 9/16"unf-18muT(22X18) 0.05KG

CR3707/8U2703 5/8"UNF-18x46 0.13KG

7H3597 5/8"unf-18x51 0.14KG

Cr1251 5/8"unf-18x547 0.15KG

5H8756/616207C1 5/8"unf-18x57 0.16KG

9G3110/AC226 5/8"unfx57B 0.16KG

3T8601/CR4357 5/8"UNF-18x67 B 0.17KG

9G8592/CR5573 5/8"unf-18x83 B 0.2KG

5A4104/3P2274 5/8"unf-18x89 0.2KG

3T8580 5/8"unf-18x91 B 0.21KG

1M1408/CR1250 5/8"UNF-18nuT(25X18) 0.06KG

1S1859/CR1105 9/4"UNF-16X55 0.23KG

Yh3598 5/8"unf-18x61 0.24KG

6V1792/CR4441 3/4"UNF-18X81 B 0.26KG

8S8804 3/4"UNF-16x63 0.25KG

7F8619/CR331 3/4"UNF-16x70 0.265KG

1061642 3/4"UNF-16X75 B 0.29KG

Cr3842/311345R2 3/4"UNF-16X76 0.28KG

6V1792/CR4440 3/4"UNF-16X81 B 0.3KG

Cr5444/1070719 3/4"UNF-16X99 B 0.34KG

5A7524 1D1295 3/4"UNF-16X702 0.35KG

9S1838/CR3326 3/4"UNF-16X105 B 0.36KG

2P9670/CR3119 3/4"UNF-16X112 0.35KG

6T1441/CR4699 3/4"UNF-16X124.5 B 0.41KG

1S1860/CR1967 3/4UNF-16NUT(28x19) 0.08KG

7H3599/9M7444 7/8"UNF-14x67 B 0.37KG

316910R1 7/8"UNF-14x76 0.4KG

7T2748 7/8"unf-14x85 B 0.43KG

6V1723/CR4135 7/8"UNF-14x89 B 0.44KG

6V1724/CR4132 7/8"UNF-14x95 B 0.46KG

9W9058/CR4789 7/8"UNF-14x115 B 0.53KG

8S0395/CR2709 7/8"UNF-14x121 B 0.54KG

6V1725/CR4133 7/8"UNF-14x127 B 0.56KG

2S2140/CR1969 7/8UNF-14NUT(33x22.5) 0.12KG

7G6442/CR4136 7/8unf-14nut(33x33.5)B 0.15KG

2M5657/9M7445 1"UNF-14X75 B 0.55KG

3T6308/CR4029 1"UNF-14X84 B 0.57KG

6T2638/CR4670 1"UNF-14X90 B 0.6KG

6V1726/CR4036 1"UNF-14X101 B 0.65KG

6V1727/CR3858 1"UNF-14x110 B 0.68KG

7T2283/CR4669 1"UNF-14x123 B 0.74KG

8S1723/CR2669 1"UNF-14x141 B 0.81KG

6V1728/CR3859 1"UNF-14X148 B 0.84KG

1S6421/CR1970 1"UNF-14NUT(38x25) 0.2KG

7G0343/CR4037 1"UNF-14NUT(38x39)B 0.23KG

7T1000 1-1/8"UNF-12X96 B 0.85KG

5p3968 1-1/8"unf-12X107 B 0.88KG

7T0999/CR5258 1-1/8"UNF-12x134 B 1.1KG

7T0998/CR5257 1-1/8"UNF-12x164 B 1.2KG

9W4480 1-1/8"UNC-7x139.5 1.1KG

5P8221/CR3835 1-1/8"UNF-12NUT(42x44)B 0.3KG

6T8853 1-3/8"UNF-12x110 1.5KG

6I8648 1-3/8"unf-12X121 1.6KG

6T8521/CR5640 1-3/8"unf-12x153 1.8KG

6T8520/CR5639 1-3/8"unf-12x184 2KG

3T6292/CR5638 1-3/8"unf-12nut(54X45)B 0.7KG

101-32-11210 M12X1.5X40 0.07KG

Ft887/571946 M12x1.25unt(19x15) 0.03KG

205-32-21210 M14X1.5X45 0.1KG

203-32-21220 M14X1.5X56 0.11KG

OK21K M14X1.5NUT(22X15) 0.04KG

205-32-51120 M16X1.5X50 0.14KG

130-32-21252E M16X1.5X82 0.2KG

516125 M16X1.5NUT(24X16) 0.06KG

79039443 M18X1.5X55F 0.19KG

79004259 M18X1.5X60 0.2KG

79039445/FT982 M18X1.5NUT(27X18) 0.08KG

20Y-32-11210 M20X1.5X53F 0.23KG

9W3619 M20X1.5X55D 0.25KG

79035814-FT2110/154-32-211323 M20X1.5X62F 0.26KG

6Y0846 M20X1.5X63 0.27KG

14Y-32-11210/71401192 M20X1.5X65F 0.27KG

Ft1100 M20X1.5X68 0.27KG

9W3361/FT2111 M20X1.5NUT(28X22) 0.08KG

207-32-51210 M22X1.5X56F 0.3KG

71428357 M22X1.5X62F 0.32KG

6Y9024 M22X1.5X67D 0.33KG

76007851/FT2205 M22X1.5X70F 0.35KG

9W4381/CR5923 M22X1.5NUT(32X22) 0.13KG

208-32-51210 M24X1.5X65F 0.38KG

21M-32-11260 M24X1.5X72 0.42KG

175-35-11210/KM378 M24X1.5X76 0.46KG

178-32-11220 M24X1.5UNT(35X24) 0.15KG

195-32-11210/KM263 M27X1.5X82 0.62KG

6Y7432 M27X1.5X90 0.66KG

195-32-41210/KM6361 M27x2.8X93 0.68KG

195-32-11221 M27X1.5NUT(41X27) 0.23KG

195-32-41220/KM1151 M27X2.0NUT(41X35)B 0.27KG

195-32-61210 M30X2.0X96 0.85KG

pc1250/KM2348 M30X2.0X102 1.1KG

195-32-61220 M30X2.0NUT(46X38)B 0.46KG

198-32-41330/KM3193 M33X2.0X114 1.3KG

198-32-31340 M33X2.0X185 1.8KG

198-32-31220 M33X2.0NUT(50X42)B 0.5KG
