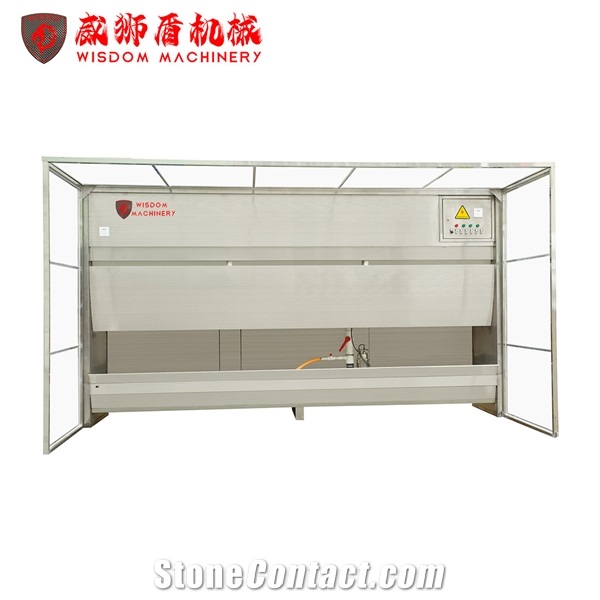

Water Wall Dust Collector For Stone Fiberglass Porcelain Fabricate
FOB Price:$3000-8000
Type:
Stone Factory MachinesStone Factory Cleaning EquipmentsAir Dust Collector
Usage:
Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time:
30days
Warranty:12 Months
Install and Guarantee:Remote guidance installation
Maintenance:Regular guidance & maintenance, Remote troubleshooting
Supplier
Eatablished :Jan 20,2021
Main Product:
Bridge Saw, Stone Cutting Machine, Block Cutting Machine, Wire Saw Machine, Stone Splitter, Stone Polishing Machine|
Machinery Function Features

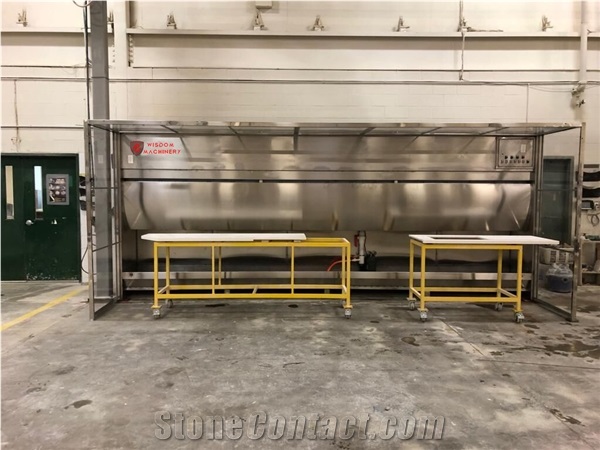

wisdom waterwall dust collector is an all stainless steel, heavy duty,, wet dust collector made to eliminate 90% of dust particles. The operation of the water wall dust collection booth is extremely simple, simply push the button and work in front of it.
1.Strong suction power
2.Easy operation
3.Multi safety protection
4.Material use stainless steel
5.With Extension Booth
Technical Data
Parameters |
Unit |
WSDDC3M |
WSDDC4M |
WSDDC5M |
WSDDC6M |
Air speed |
m/s |
3.5-4.2 |
3.5-4.2 |
3.5-4.2 |
3.5-4.2 |
Noise |
db |
70-80 |
70-80 |
70-80 |
70-80 |
Fan power |
kw |
1.5 |
1.5 |
1.5 |
1.5 |
Air intake |
m³/h |
24000-32000 |
35000-42000 |
45000-52000 |
60000-75000 |
NO. of fans |
2 |
3 |
4 |
5 |
|
Dimension |
mm |
3000*720*2100 |
4000*720*2100 |
5000*720*2100 |
6000*720*2100 |
Water pump power |
kw |
1.5 |
1.5 |
1.5 |
1.5 |
Processed Stone Photos
