Automatic Special-shaped Cutter
FOB Price:
Type:
Stone Factory MachinesStone Tile Cutting MachinesMulti-Blade Cross-Cutter,Trimming
Usage:
Granite, Marble
Supplier
Eatablished :Aug 03,1993
Main Product:
Stone Cutting Machine, Polishing Machine, Edge Polishing Machine, Multi-Blade Cutting Machine, Machine Tools, Stone Machine|
Machinery Function Features

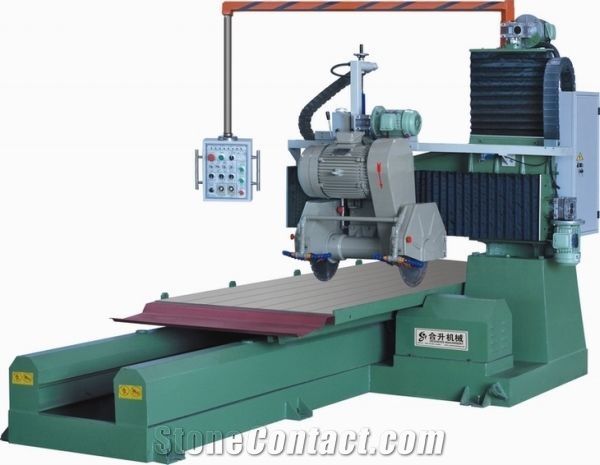

Automatic Special-shaped Cutter
The machine adopts connected body structure, utility model design, advanced PLC system, sensitive tracking allocation and dual-wheel cutting. It is used in processing large line, Rome pillar and big circular arc at any sizes. It has the characteristics of new structure, easy operation, high efficiency, good quality and low cost, etc.
Technical Data
Parameters |
Unit |
HSM-QC02 |
Cooling water requirement |
l/min |
80 |
Machine height (H) |
mm |
2400 |
Machinable width |
mm |
1000 |
Working platform size |
mm |
3000×1000 |
Max. working strip thickness |
mm |
600 |
Machine width (W) |
mm |
2200 |
Lifting travel of cutter |
mm |
210 |
Approximate weight |
kg |
3000 |
Discs diameter |
mm |
φ350-φ500 |
Rotation angle of cutter |
° |
Both left and right are 90° |
Installed electrical power |
kW |
14 |
Maximum lifting travel of main beam |
mm |
400 |
Max. strip length |
mm |
3500 |
Machine length (L) |
mm |
5200 |
Power of main motor |
kW |
11 |
