JOBORN Block Cutting Machine With Double Directions

Name: JOBORN Block Cutting Machine With Double Directions
Brand: FUJIAN JOBORN MACHINERY CO.,LTD.
SKU: 6589
Price: 37500 USD
Availability: InStock

FOB Price:$37500-43500

Type: Stone Factory MachinesStone Block Cutting MachinesVertical-Horizontal Block Cutting Machine

Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine

After-Sale

Lead Time: 25~30 days after prepayment received

Warranty:12 Months

Install and Guarantee:Customer pay for installation, Remote guidance installation, Third-party team installation

Maintenance:Online software upgrade, Regular guidance & maintenance, Remote troubleshooting

Supplier

FUJIAN JOBORN MACHINERY CO.,LTD.

JOBORN MACHINERY

China level 4YR

Eatablished :Jul 28,2015

Main Product:

Stone Block Cutting Machine, Bridge Saw Machine, Stone Polishing Machine, CNC Bridge Cutting Machine, Bridge Cutting Machine, Stone Profiling Machine|

Contact supplier

Start Order

You may also like

Slicing Cutting Machine For Kerbstone

Bridge Type Of Two-Direction Block Cutting Machine

Vertical-Horizontal Stone Block Cutter

WYMJ-40000 Horizontal Column Polishing And Cutting Machine

Vertival-Horizontal Double Directions Stone Block Cutting Machine

Product Detail
Company Profile

Overview
Components
Video
Customer Case

Machinery Function Features

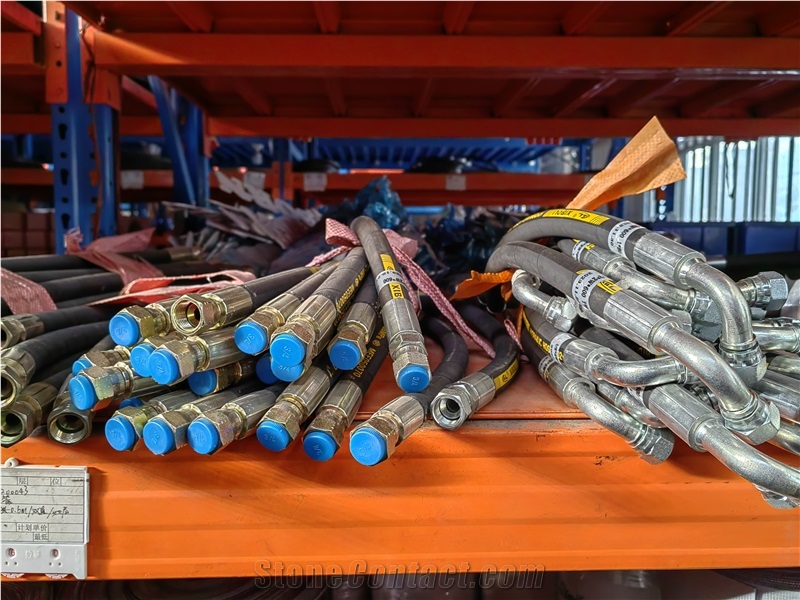

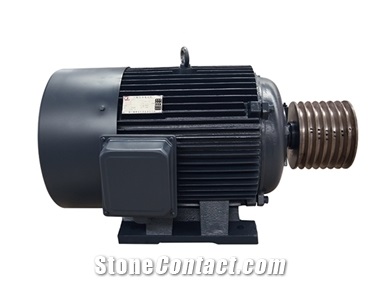

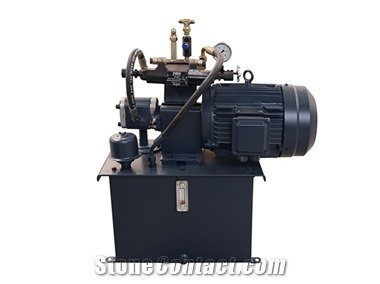

1.Taiwan famous hydraulic system.The hydraulic components from Taiwan first-line brand,react more quickly，works more stable. 2.Domestic premium brand main motor with high efficiency and more energy saving,make the cutting more powerful,and saving electricity more. 3.Germany Siemens inverter, feeding more stable; imported or domestic famous brand electrical components, with lower failure rate, help you to worry less and save more labor. 4.It uses hydraulic lifting system, combination of chrome-plated guide pin and wear guide bush, with small gap, wearable, beautiful structure, and guide sleeve with multi-layer seals, with waterproof, dust-proof, anti-spill, improving the service life. 5.The machine have a horizontal knife strcture,help you saving more labor. 6.Revolving working feed platform (Optional)

Technical Data

Parameters	Unit	SQC-1600S	SQC-1800S	SQC-2000S
Total Power	kw	100	100	100
Max Disc. Diameter(Vertical)	mm	1600	1800	2000
Machine Dimension(LxWxH)	mm	8000x4400x3700	8000x4400x3700	8000x4400x3700
Weight	kg	13000	13500	14000
Horizontal Motor Power	kw	15	15	15
Max Processing Length	mm	4000	3800	3600
Max Lifting Stroke(Z Axis)	mm	1350	1350	1350
Diameter of Horizontal Disc.	mm	400	400	400
Horizontal Cutter Stroke(Vertical)	mm	750	850	950
Main Motor Power	kw	75	75	75
Max Processing Width	mm	2200	2200	2200
Water Consumption	m³/h	10	10	10

Software

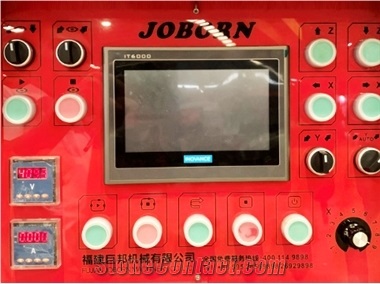

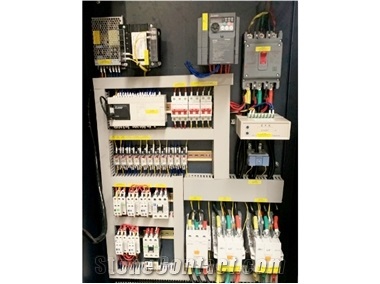

The machine adopts PLC programmable control system and man-machine interface

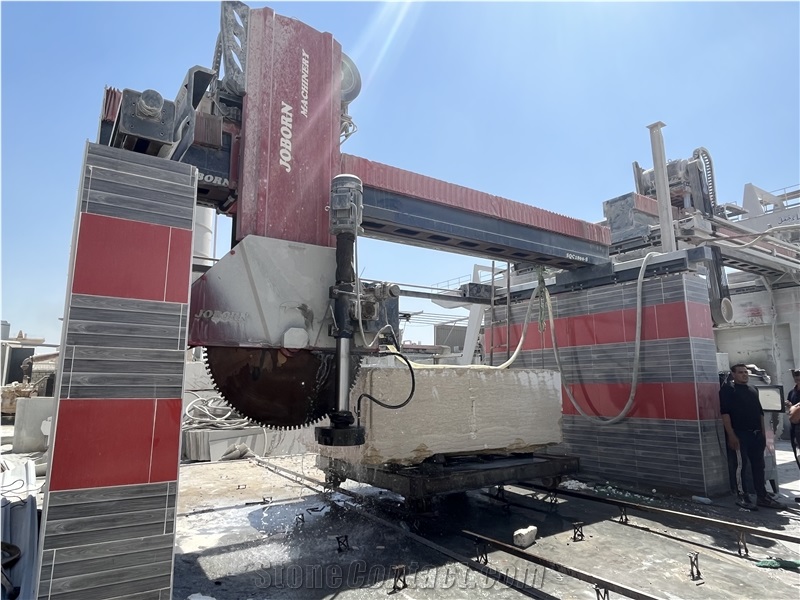

Work Example

The machine adopts PLC programmable control system and man-machine interface, supplemented by ultra-high-precision rotary encoder for slicing, the left and right cutting tools are controlled by frequency converter, and the speed can be adjusted according to the stone material.

The plate is driven by high-precision screw nut, and the key parts are imported high-quality spare parts; combined with the horizontal knife design, the root of the plate can be directly cut during cutting, eliminating the trouble of manual plate unloading and improving efficiency.

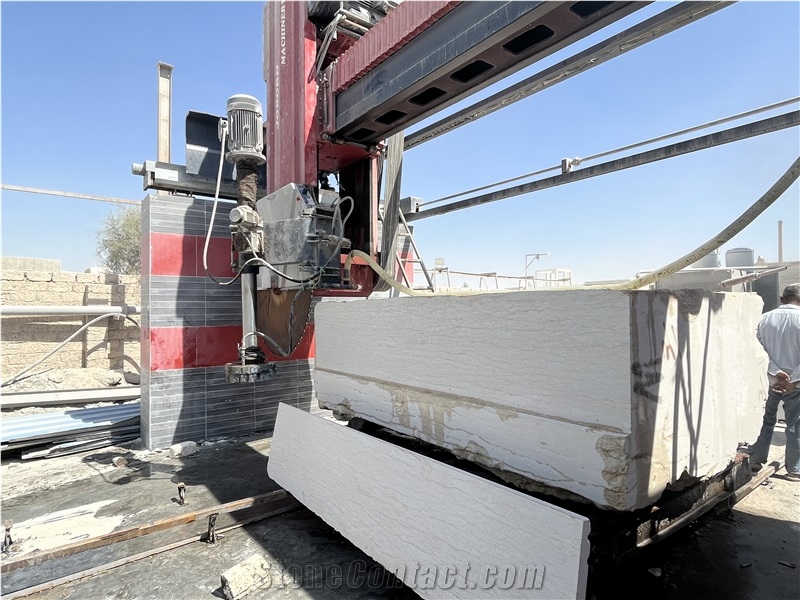

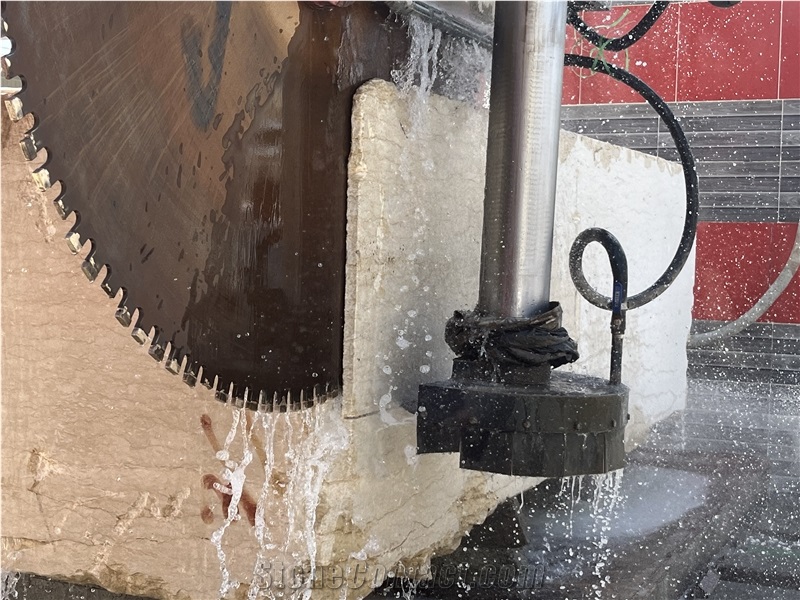

The horizontal knife adopts hydraulic feeding, and the upper and lower lifting adopts the guide column contact surface, which is more reasonable and stable; therefore, it has the advantages of high cutting efficiency, high slicing accuracy, good flatness of the cut plate, high stability, and easy operation. It is especially suitable for For cutting high-value granite and marble blocks.

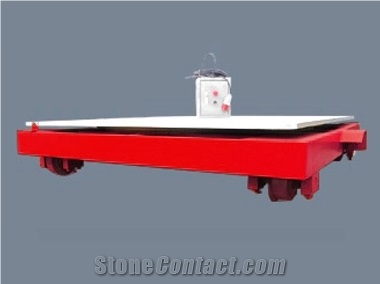

Note: If the production process requires, the user can add a 360° rotating table.
