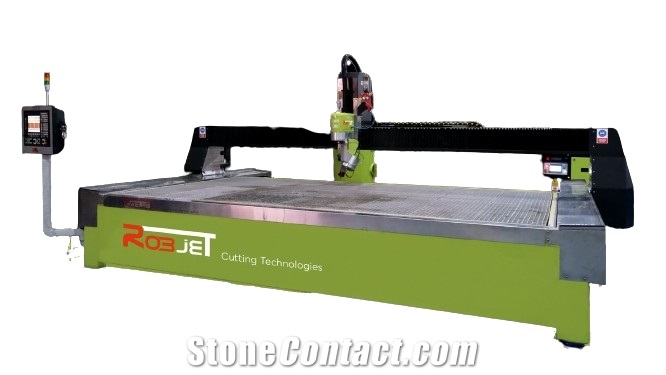

Robjet CUTJET-W5 5 Axis Waterjet Machine
FOB Price:
Type:
Stone Factory MachinesStone Finishing, Profiling MachinesWaterjet Machines
Usage:
Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time:
14-16 weeks
Warranty:12 Months
Install and Guarantee:Customer pay for installation
Maintenance:Online software upgrade, Regular guidance & maintenance, Remote troubleshooting
Supplier
Eatablished :Jan 04,2011
Main Product:
Waterjet Cutting Machines, 3 Axis Waterjet Machines, 5 Axis Waterjet Machines, Robotic Waterjet Machines, Fiber Laser Machines, HP Waterjet Pumps|
Machinery Function Features
The CUTJET-W5 is a cutting bench used for cutting many materials such as glass, marble,
granite, metal, plexiglass. Due to high-pressure abrasive cutting and being a cold process,
problems such as burning, droplets, deformation caused by thermal reasons will be prevented.

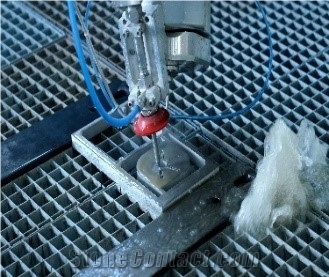

The 5-axis cutting head provides our customers with high-quality cutting opportunities
between 0° and 60°.
Technical Data
Parameters |
Unit |
CUTJET-W5 |
Z-axes travel |
mm |
250 |
Dimensions of the work table |
mm |
2000*4000*250 |
Waterjet pump power |
kw |
37 |
Waterjet max pressure |
bar |
4100 |
Waterjet pump capacity |
L/min |
3,8 |
Y-axes travel |
mm |
2000 |
X-axis travel |
mm |
4000 |

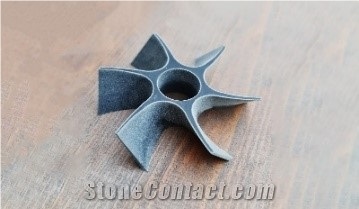

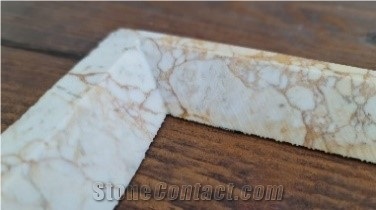

Processed Stone Photos
-
5 Axis cut
-
5 axis cut 2
-
5 axis cut 3
Components
-
50HP pump
-

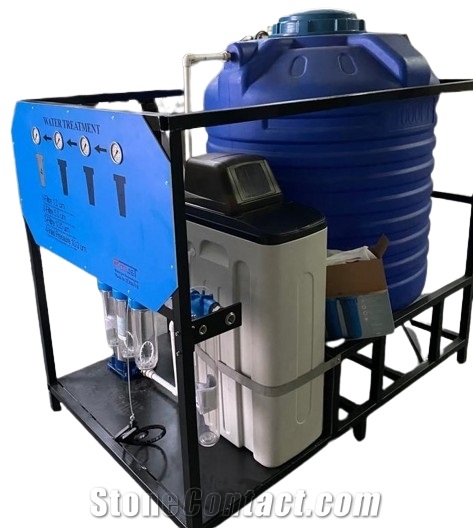

Water softening system
-

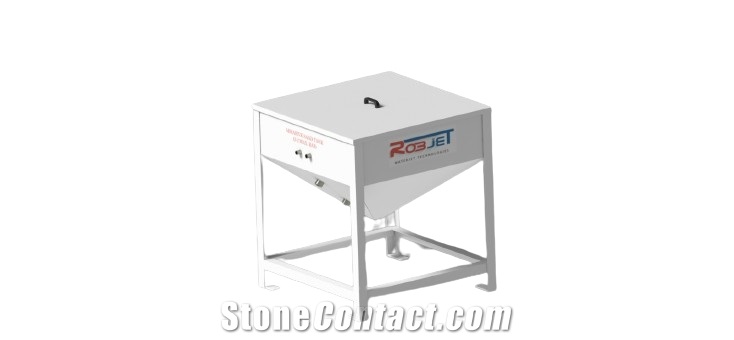

200L Sand tank
Consumables
-

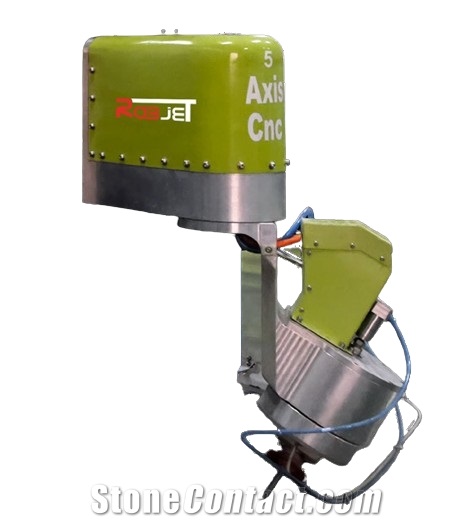

Cutting head components
