Semi Automatic Manual Cutting Machine For Marble Granite Slab And Tile

Name: Semi Automatic Manual Cutting Machine For Marble Granite Slab And Tile
Brand: FUJIAN JOBORN MACHINERY CO.,LTD.
SKU: 6693
Price: 7500 USD
Availability: InStock

FOB Price:$7500-9500

Type: Stone Factory MachinesStone Tile Cutting MachinesStrip Cutting,Edge Trimming Machine

Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine

After-Sale

Lead Time: 25~30 days after prepayment received

Warranty:12 Months

Install and Guarantee:Customer pay for installation, Remote guidance installation, Third-party team installation

Maintenance:Online software upgrade, Regular guidance & maintenance, Remote troubleshooting

Supplier

FUJIAN JOBORN MACHINERY CO.,LTD.

JOBORN MACHINERY

China level 4YR

Eatablished :Jul 28,2015

Main Product:

Stone Block Cutting Machine, Bridge Saw Machine, Stone Polishing Machine, CNC Bridge Cutting Machine, Bridge Cutting Machine, Stone Profiling Machine|

Contact supplier

Start Order

You may also like

Gantry Profile Strip Cutting, Edge Trimming Machine

Oil Immersed Edge Cutting Machine

Stone Trimming Machine

Dual Blades Thin Stone Veneer Saw

Right Angle Saw Cut Brick And Cladding Stone Cutting Machine For Wall

Product Detail
Company Profile

Overview
Components
Video

Machinery Function Features

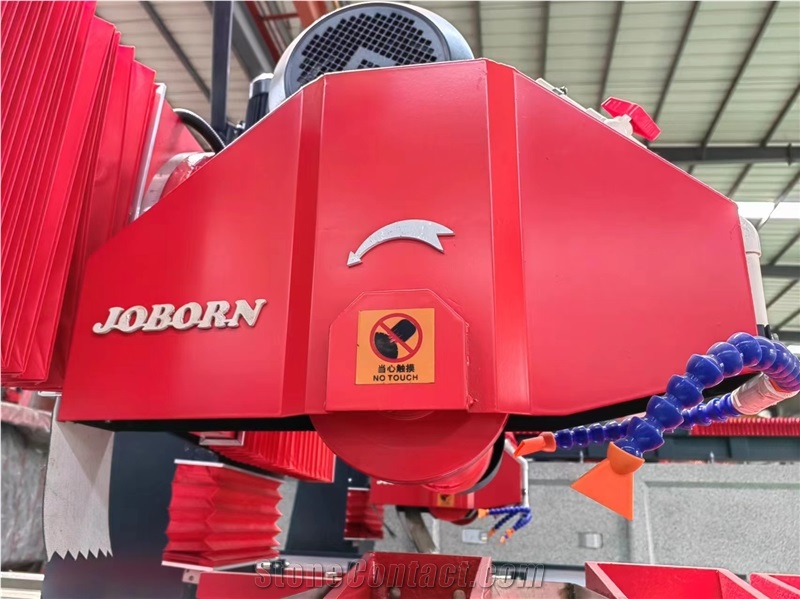

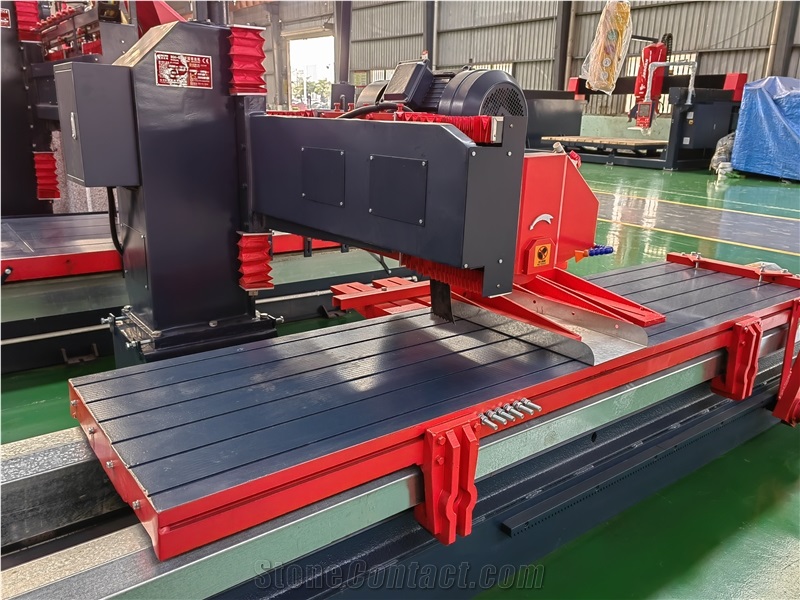

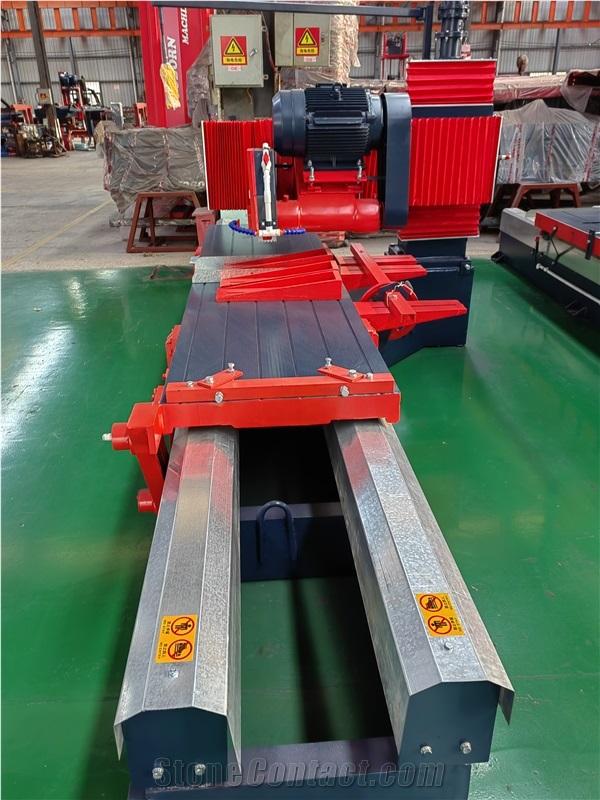

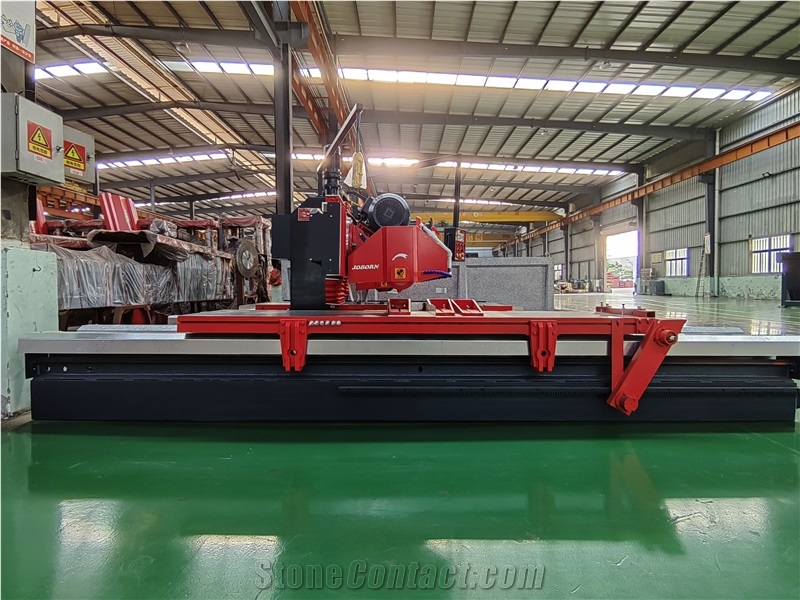

SQA-600 manual cutting machine. This series machine uses combined structure; the main head can rotate 180 degree and be electrically moving up and down. The whole machine has compact structure, fine appearance, stable functions and high processing precision, which suits for edge cutting and milling of small slates, lath and thick tiles.

Technical Data

Parameters	Unit	SQA-600-A	SQA-600-B
Minimum strip width	mm	30	30
Machinable Length	mm	2700	3200
Main motor power	kw	15	15
Machine width (W)	mm	2200	2200
Machine length（L）	mm	5500	6000
Cutting angles	°	0~180	0~180
Worktable length	mm	3000	3500
Approximate weight	Kg	2800	3200
Cooling water requirement	m3/h	3	3
Max disc diameter	mm	600	600
Machinable width	mm	1100/1200	1100/1200
Installed electrical power	kw	16	16
Machine height (H)	mm	2250	2250
Worktable width	mm	750	750

Software

The Machine Control by Manual.

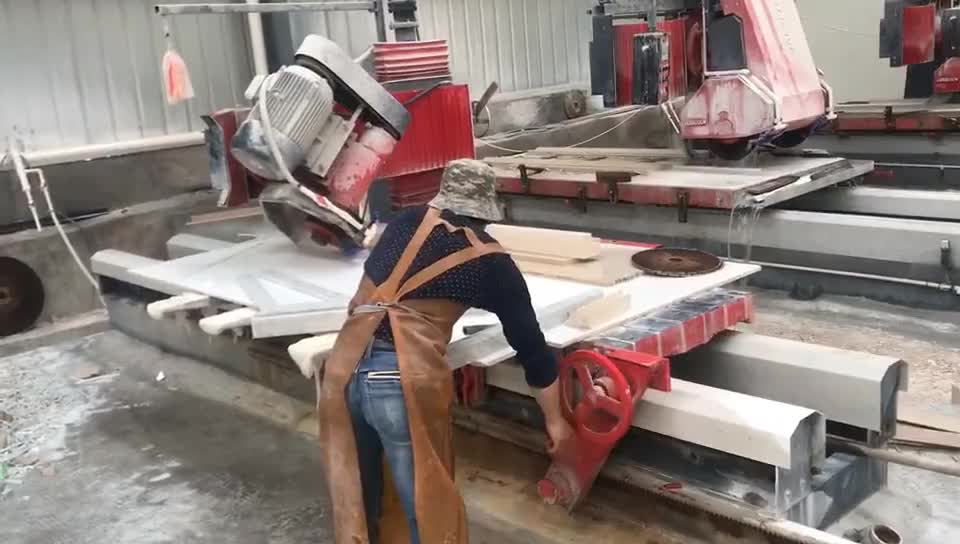

Work Example

SQA-600 manual cutting machine. This series machine uses combined structure; the main head can rotate 180 degree and be electrically moving up and down.

The whole machine has compact structure, fine appearance, stable functions and high processing precision, which suits for edge cutting and milling of small slates,

lath and thick tiles.

Standard instructions:

Mechanical part: The main machine adopts the screw nut structure to move up and down and left and right, and its maximum stroke is 350 and 1120mm, respectively (standard).

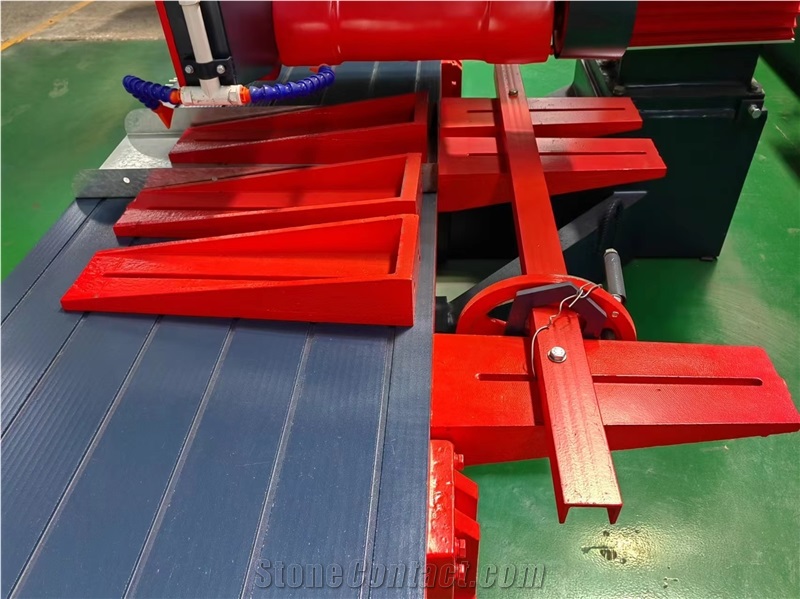

The work table 3000/3500*750mm is made of integral casting, the work table uses the rack and pinion structure to move back and forth, and its maximum stroke is 3000mm.

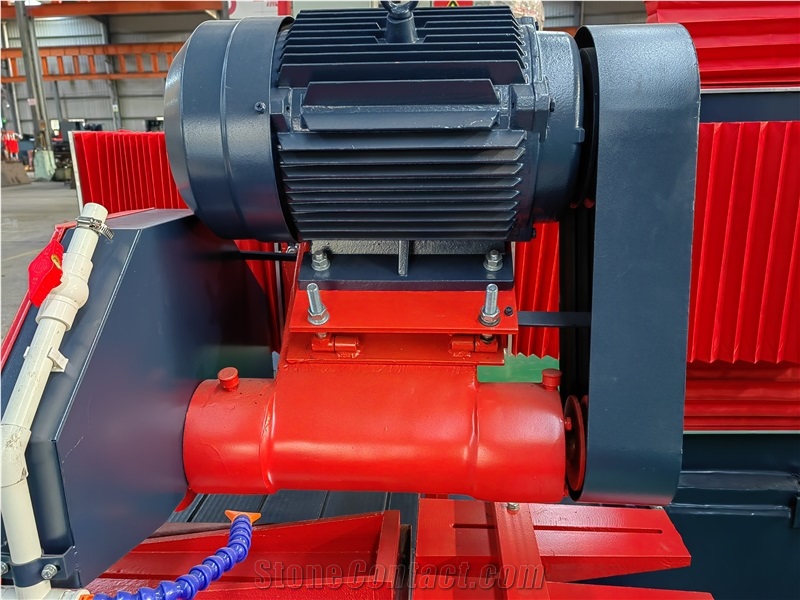

The maximum saw blade diameter of the main machine is 600mm; The main motor is 15kW-4P;

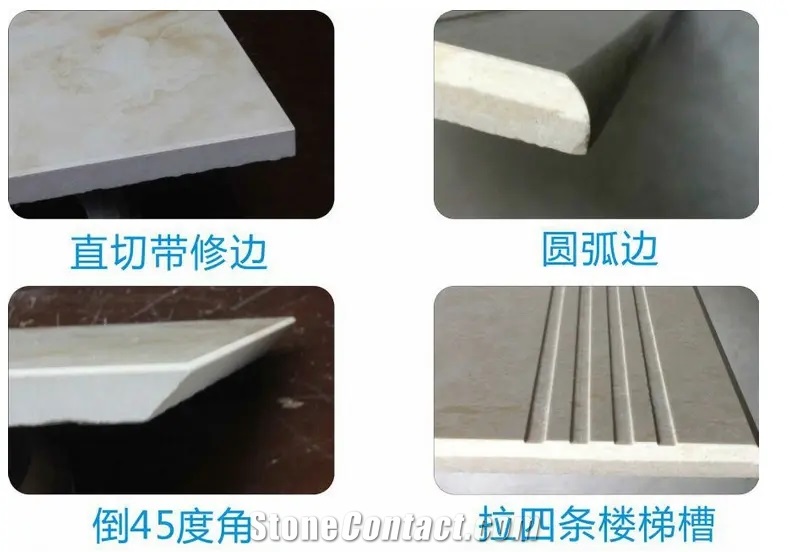

Processed Stone Photos
