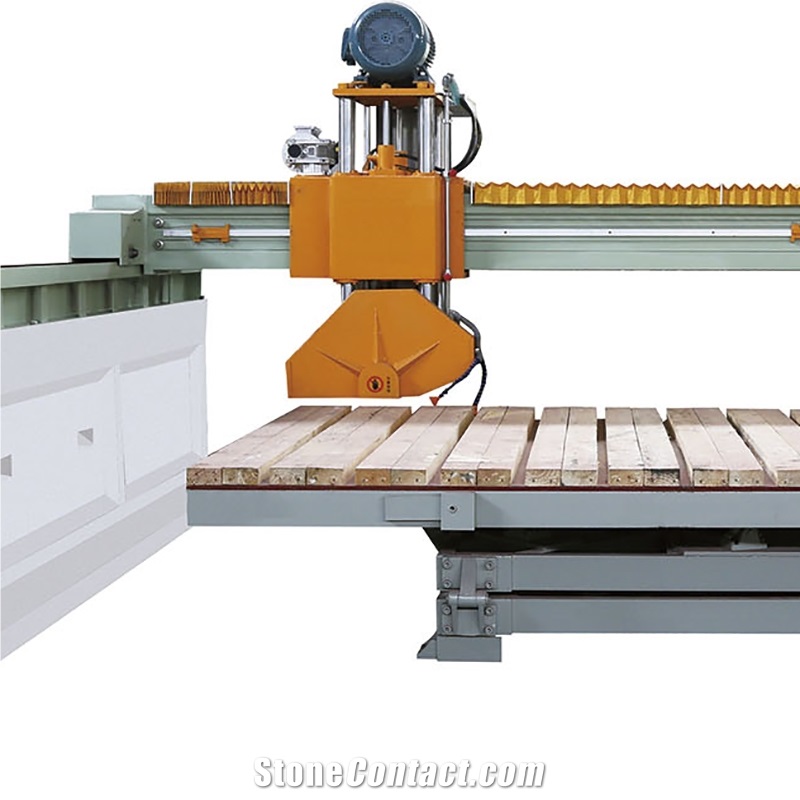

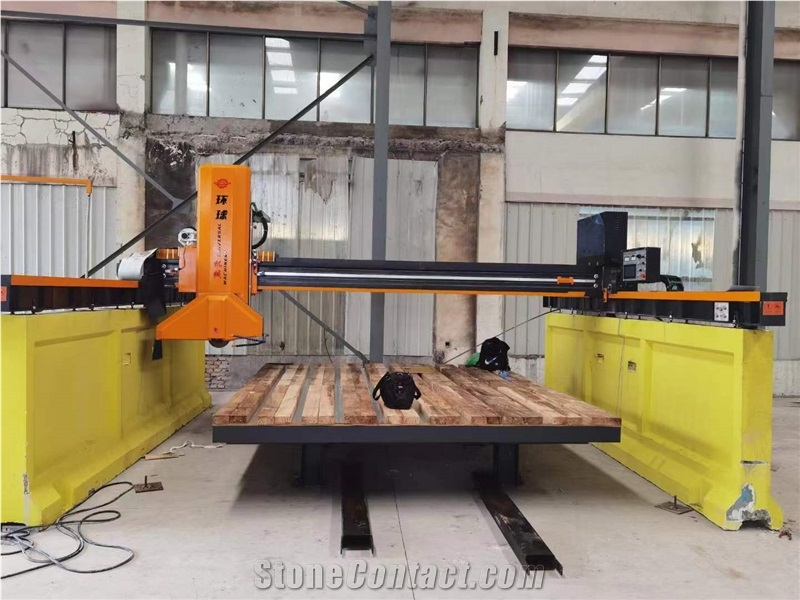

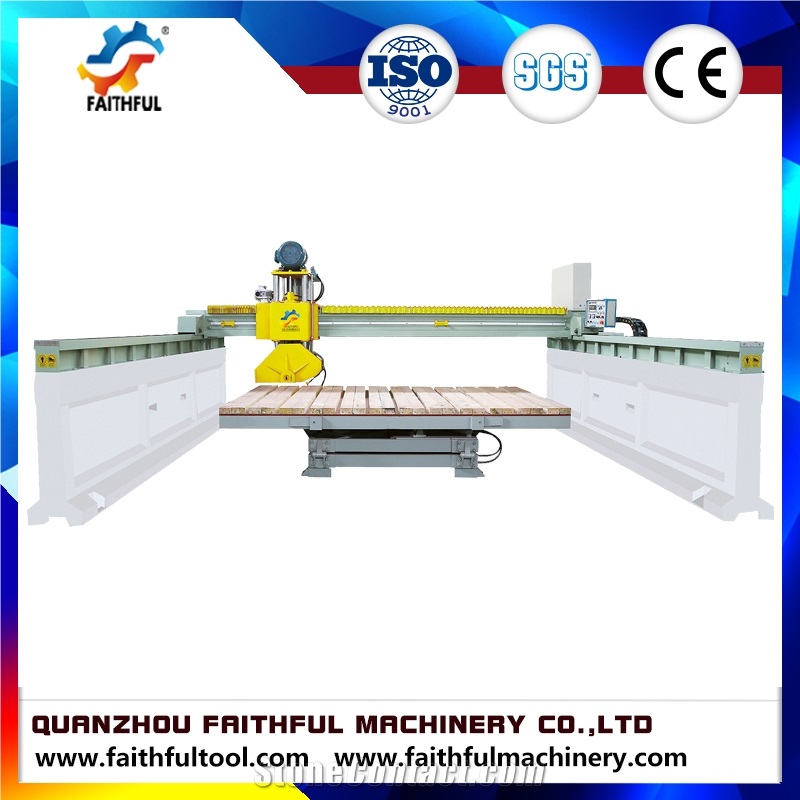

Bridge Saw Machine HQHW-400/600

This machine adopts the PLC control system, the operation interface is a combination of touch screen and mechanical button to control the interface ,input operating parameters through interface (including cutting size specification, moving speed) Etc), the cutting process is automated and programmed.The touch screen adopts Chinese、English and Russian operation interface, Suitable for most countries and regions.Adopting the processing method of slice cutting, the spindle can hang multiple saw blades, uses high-precision screw nut driving, combined with ultra-high precision rotary encoder, high slicing precision and high cutting efficiency.This machine adopt four guide column with double hydraulic lifting structure, with high stability to ensure the machine safe operation.The left- right moving of the saw blade and the back- forth moving of the beam are driven by three-phase asynchronous motor, adjusts the speed by inverter control and encoder feedback. The beam and side beam adopt rack and pinion and v-shaped slide rail structure, with high precision, low failure rate and durable.
