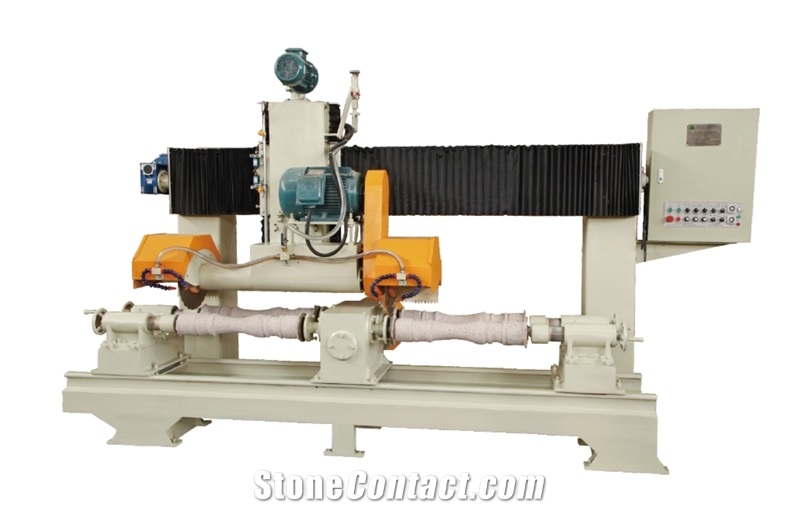

XYJ-800 (IV) Mini -Column, Balustrade Lathe Machine
FOB Price:
Type:
Stone Factory MachinesStone Finishing, Profiling MachinesColumn, Balustrade Lathe Machine
Usage:
Granite, Limestone, Onyx, Basalt, Sandstone
After-Sale
Lead Time:
lst one month
Warranty:6 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation, Third-party team installation
Maintenance:Online software upgrade, Regular guidance & maintenance, Remote troubleshooting, Field troubleshooting
Trade Terms
Port:
XIAMEN- China
Delivery Details: FOB,CFR,CIF,EXW,Express Delivery
Payment :
Supplier
Eatablished :Sep 10,2018
Main Product:
Stone Machine, Cnc Machine, Cutting Machine, Polishiing Machine, Cutting Disc, Polishing Pad|
Machinery Function Features
1,this machine is controlled by PLC system. AC contactor and breaker adopt Schneider brand. Inverter adopt Toshiba brand.
2,Cutter head moves left and right by screw rod transmission,is controled by inverter.
3, Cutter head goes up and down by screw rod transmission,is controled by inverter.
4,worktable is driven by motor with belt transmission. Revolving speed can be adjusted by inverter according to the hardness of the stone.
5,This machine takes advantage of Optical Fiber Amplifier to receive the signal copying the shape of template you want to process.
Technical Data
Parameters |
Unit |
XYJ-800 (IV) |
gross power |
kw |
15.25 |
overall dimension |
mm |
3800*1250*2300 |
blade diameter |
mm |
400 |
processing size |
mm |
4*200*800 |
main motor power |
kw |
11 |
gross weight |
t |
1.45 |

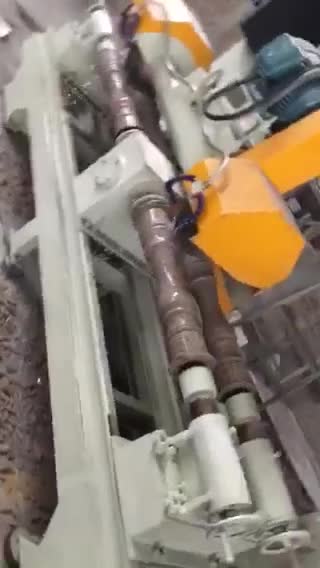

Processed Stone Photos
