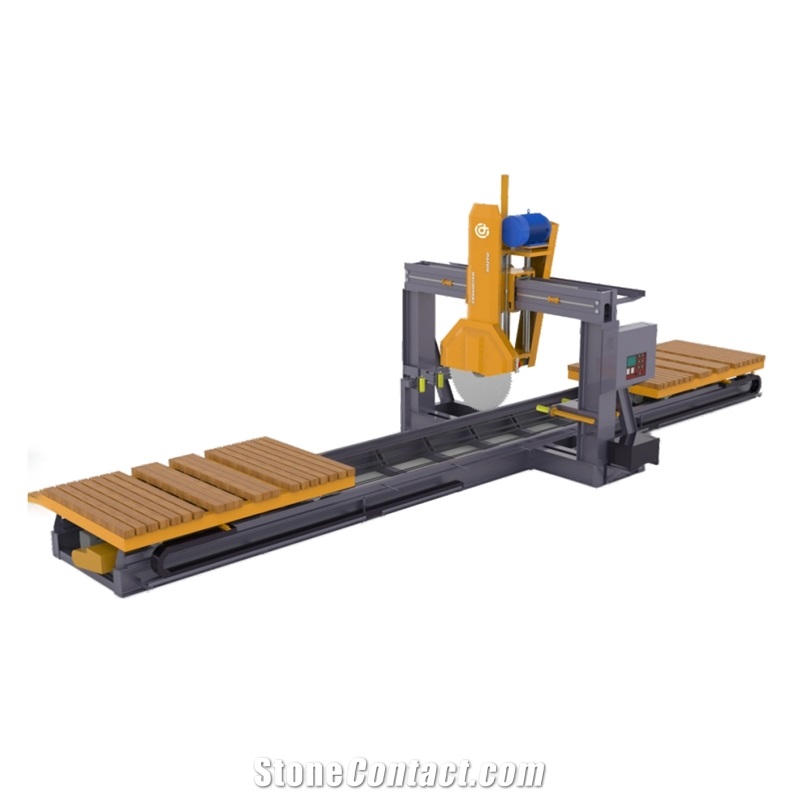

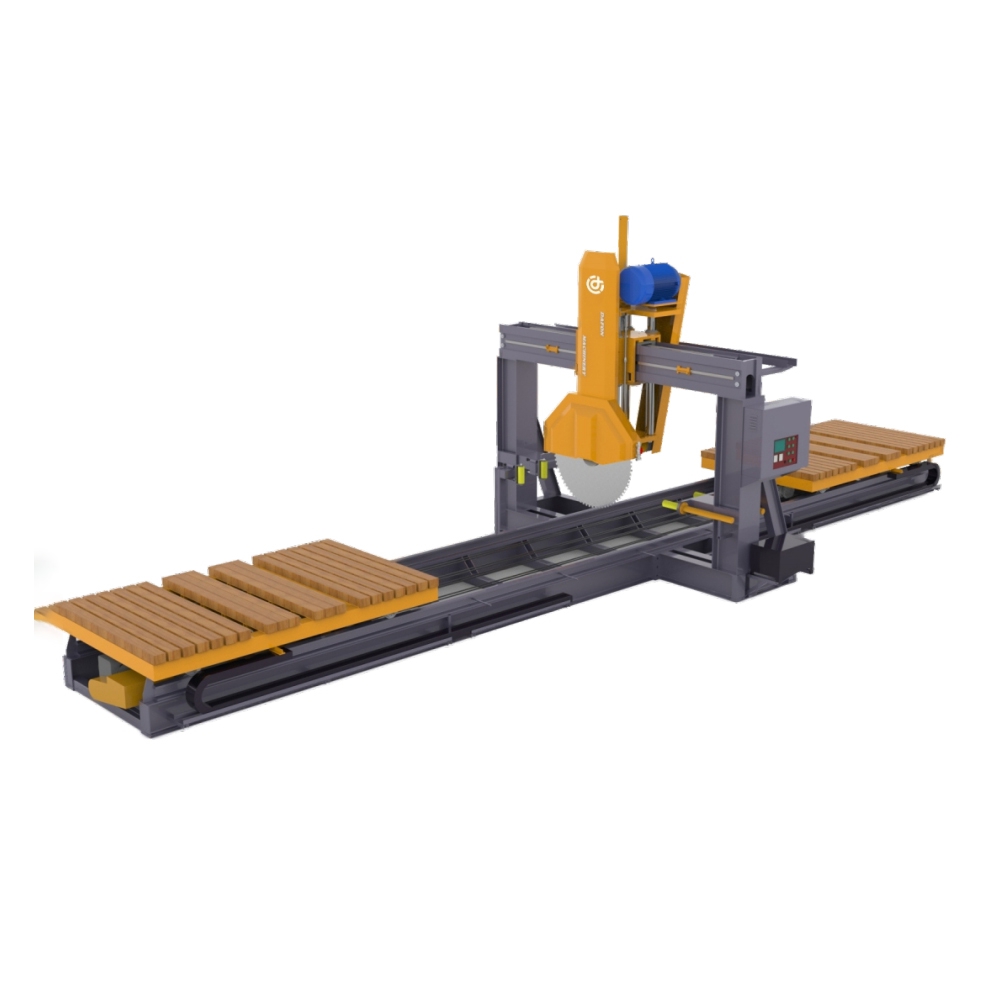

Kerb Stone Edge Cutting Machine With Double Trolley

FOB Price:$26000-29000

Type: Stone Factory MachinesStone Tile Cutting MachinesSingle Disc Cutting Machine
Usage: Granite, Marble, Quartzite
After-Sale
Lead Time: 7 days after receiving deposit
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation, Third-party team installation
Maintenance:Online software upgrade, Regular guidance & maintenance, Remote troubleshooting, Field troubleshooting
Trade Terms
Port: Xiamen Port- China
Delivery Details: FOB,CFR,CIF,EXW
Payment : Payment Payment Payment Payment Payment Payment
More
  • 81
  • 82
  • 83

Supplier

Eatablished :Feb 15,2017

Main Product:

Kerbstone Cutting Machine Line, Block Cutter Machine, Bridge Saw Machine, Automatic Line Polishing Machine, Water Filter Plant, Diamond Tools|

Contact supplier

Start Order

  • Overview
  • Components
  • Video
  • Trade Terms
Machinery Function Features

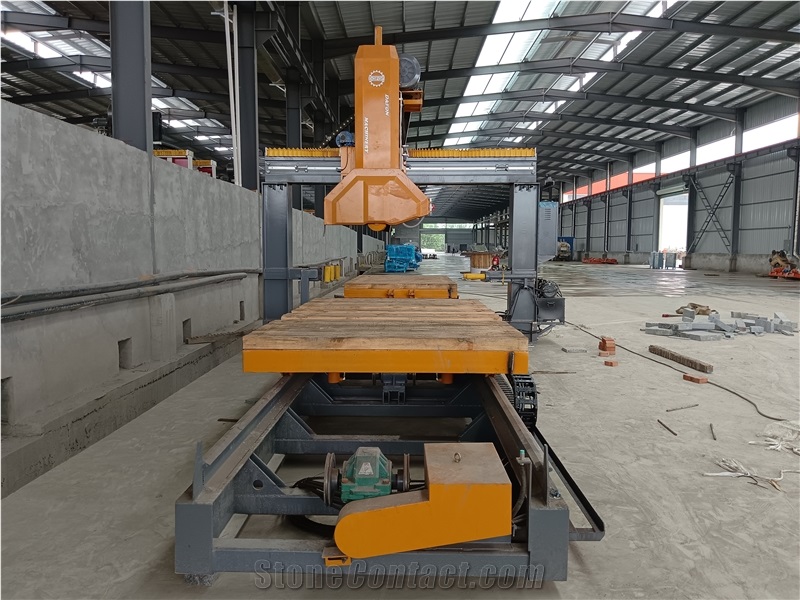

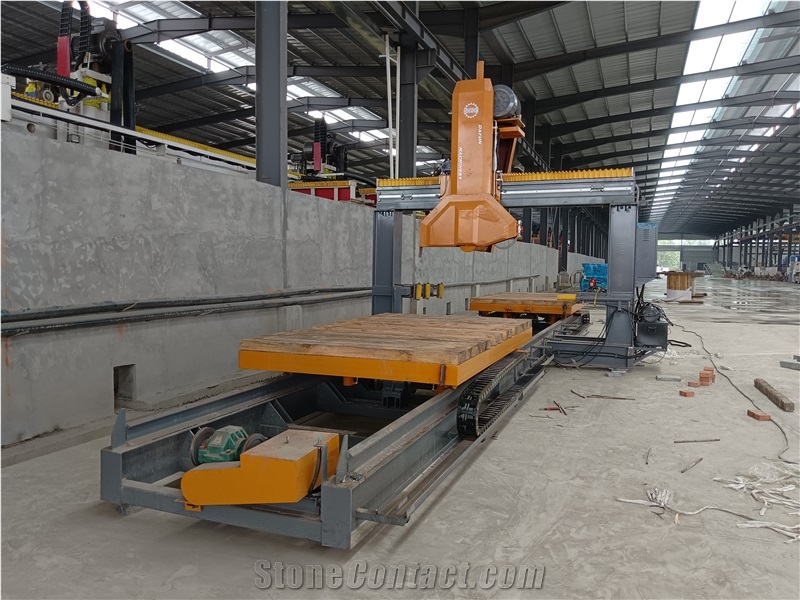

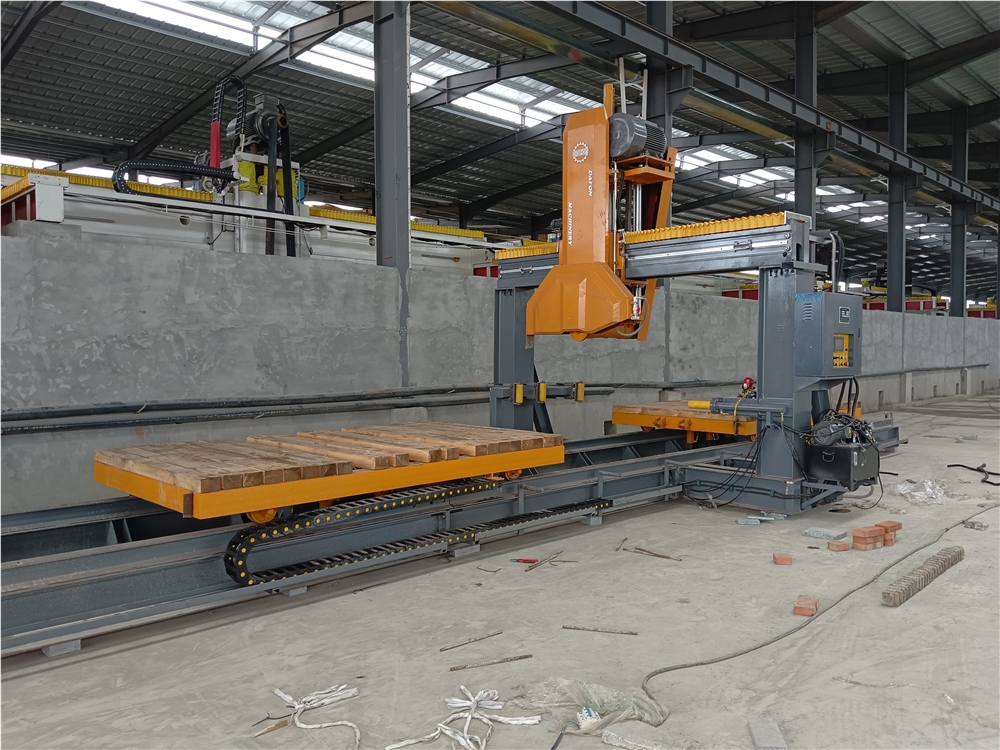

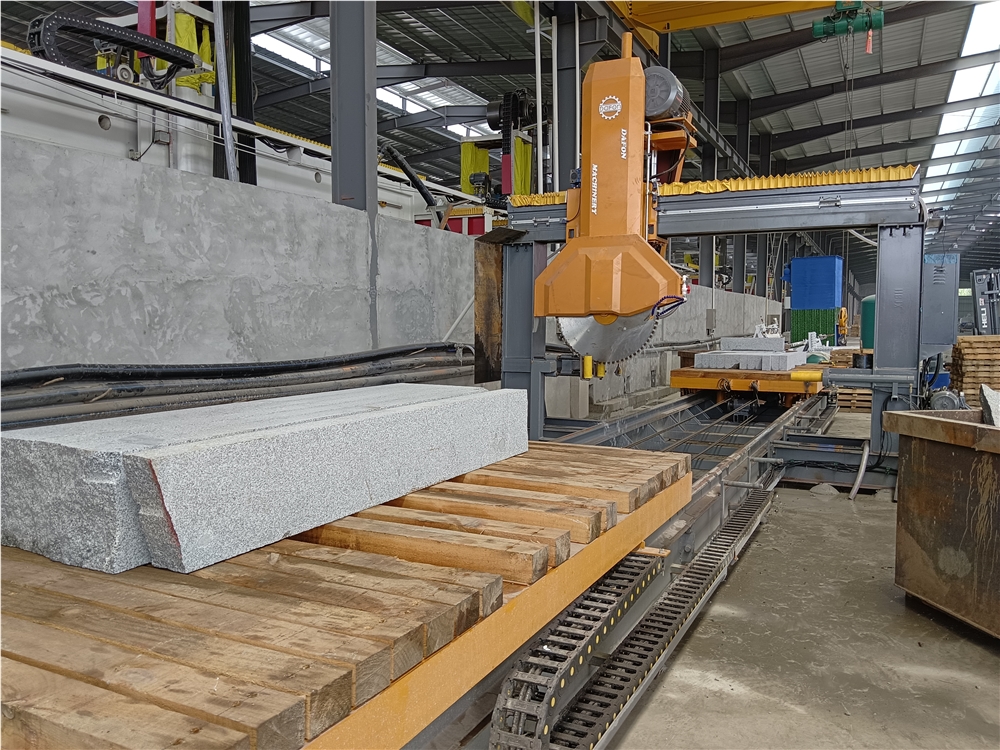

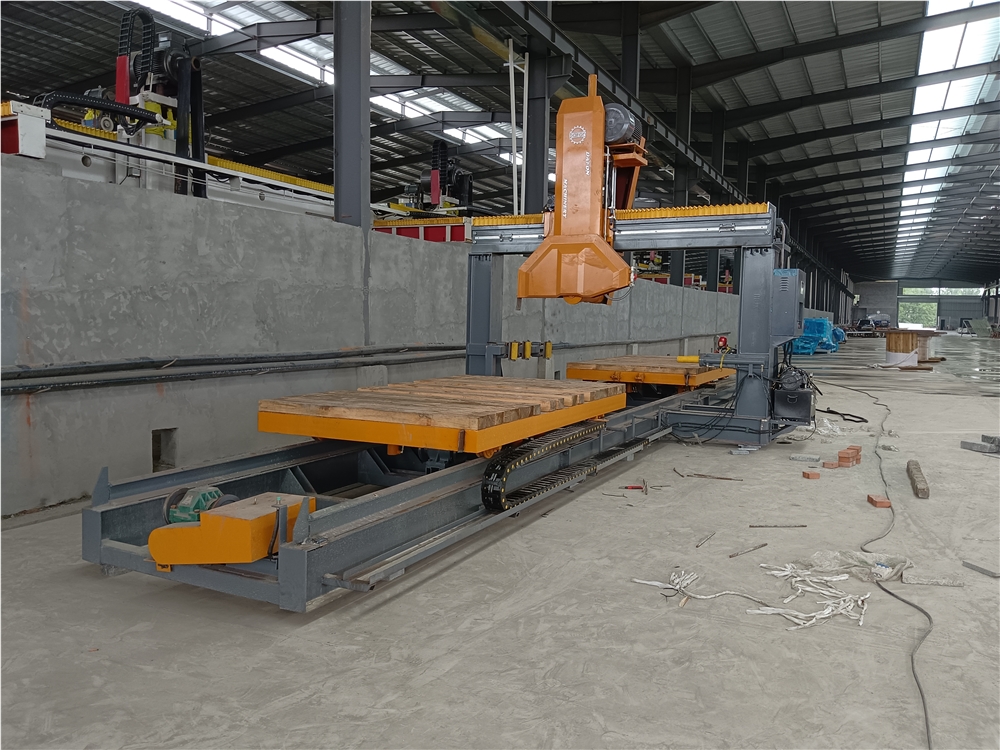

The kerbstone edge cutting machine uses a double trolley for loading. When one trolley is working, the other trolley moves to the end to load or unload the stone. This reduces the time spent on loading or unloading and greatly improves work efficiency. It is suitable for workshops that cannot install assembly lines due to lack of space in order to improve efficiency. The chassis welded with 38kg rails and H steel ensures the accuracy of the kerbstones, and the processed products have both quantity and quality.
Technical Data
Parameters
Unit
DFL-SD1200
Max.feeding size(L*W*H)
mm
2700*1700*450
Max.number of saw blades
mm
1
Main motor power
kw
22
Overall dimensions(L*W*H)
mm
12000*4200*4600
Spindle diameter
mm
120
Max.blade diameter
mm
1200
Work Example

Processed Stone Photos
  • Processed Stone Photos

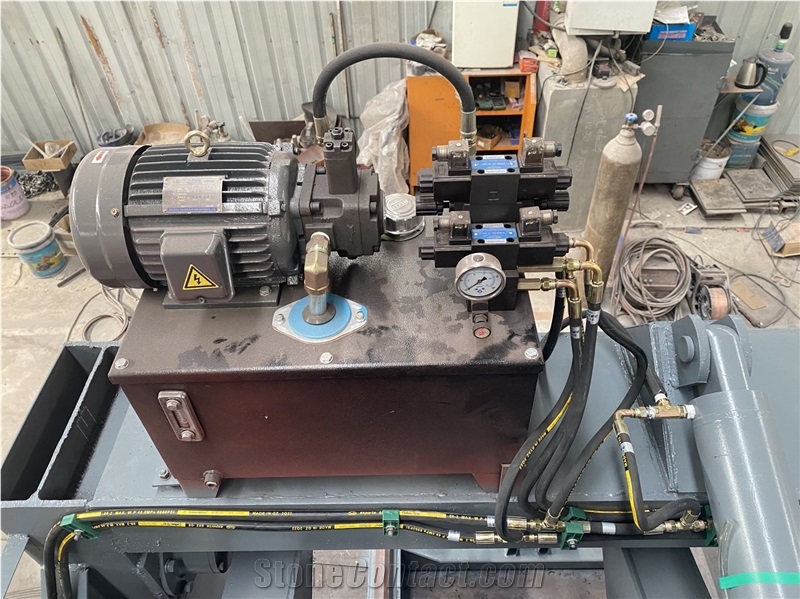

Components

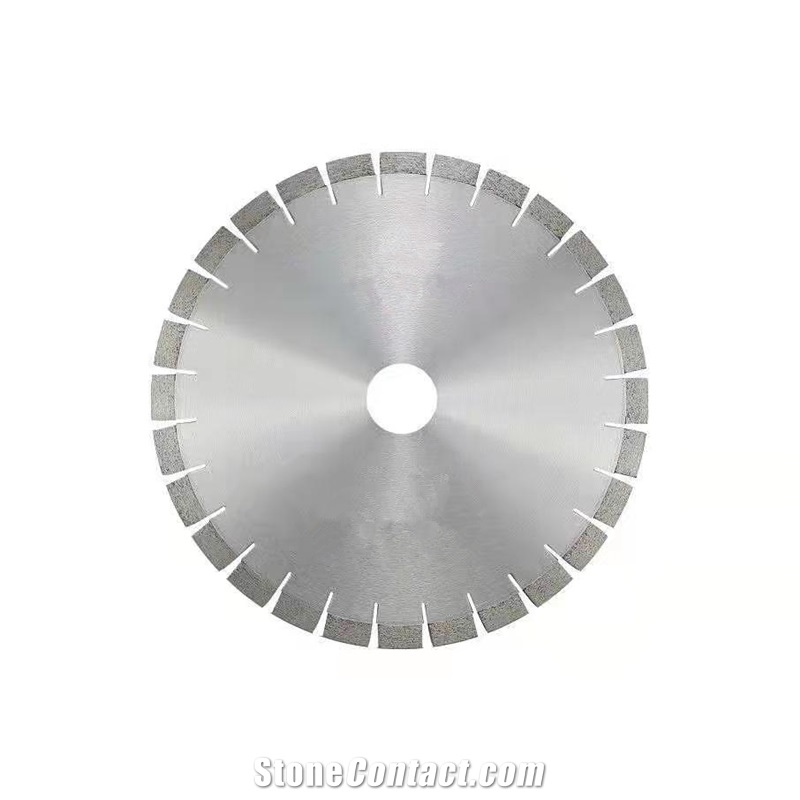

Consumables
Video

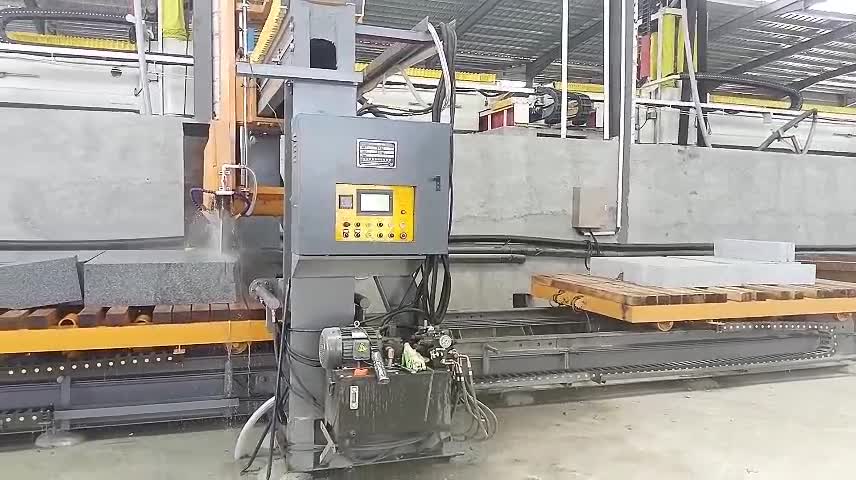

Operation Video Screen.PrimaryScreen.Bounds.Height
