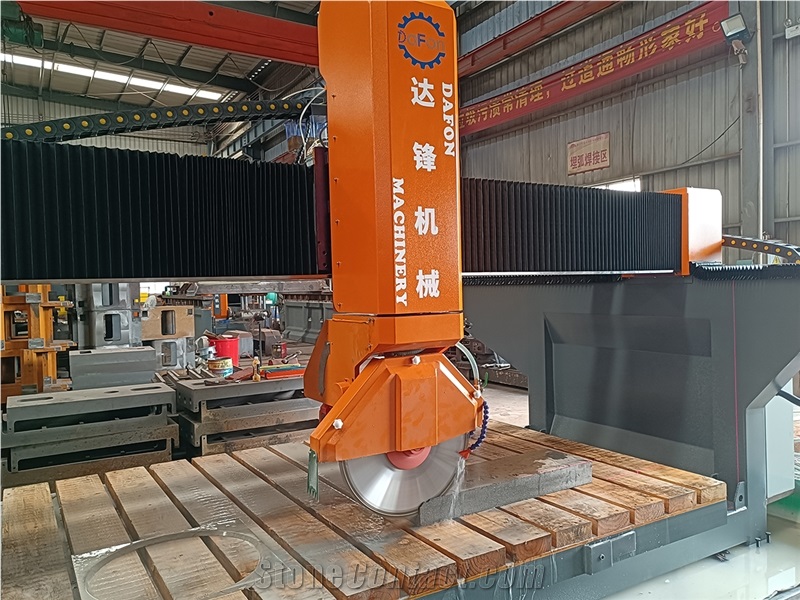

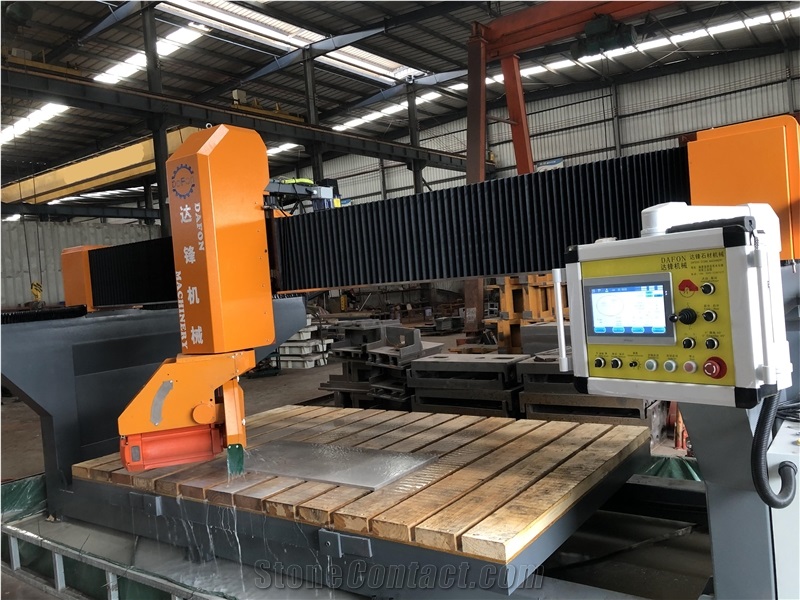

4-Axis CNC Slab Cutting Machine
FOB Price:$13500-16500
Type:
Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine
Usage:
Granite, Marble, Sandstone
After-Sale
Lead Time:
15 days after receiving deposit
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation, Third-party team installation
Maintenance:Online software upgrade, Regular guidance & maintenance, Remote troubleshooting, Field troubleshooting
Supplier
Eatablished :Feb 06,2023
Main Product:
Kerbstone Cutting Machine, Kerbstone Chamfering Machine, Granite Block Cutting Machine, Granite Slabs Cutting Machine, Marble Cutting Mahcine, Stone Slabs Polishing Machine|
Machinery Function Features
This equipment adopts an integrated body for easy installation and movement, the beam adopts integrated casting, standard with frequency converter to achieve infinitely variable speed cutting, add the voltage regulator to ensure the stability of precision electronic components, reduce the electronic components failure due to unstable voltage. x, y, and z axis are used in the linear guide walking more silky smooth, suitable for stone finishing, chamfering splicing, and so on, as well as table panel cutting.
Technical Data
Parameters |
Unit |
DFQ-F600 |
Worktable Weight |
Kg |
4000 |
Machine length |
mm |
5500 |
Machine width |
mm |
3150 |
Worktable rotation angle |
n° |
Optional |
Max.length of the cut slab |
mm |
3200 |
Machine height |
mm |
3430 |
Total power |
kw |
28.9 |
Max.width of the cut slab |
mm |
2000 |
Worktable dimension(L*W) |
mm |
3200*2000 |
blade rotating degree |
n° |
0~360 |

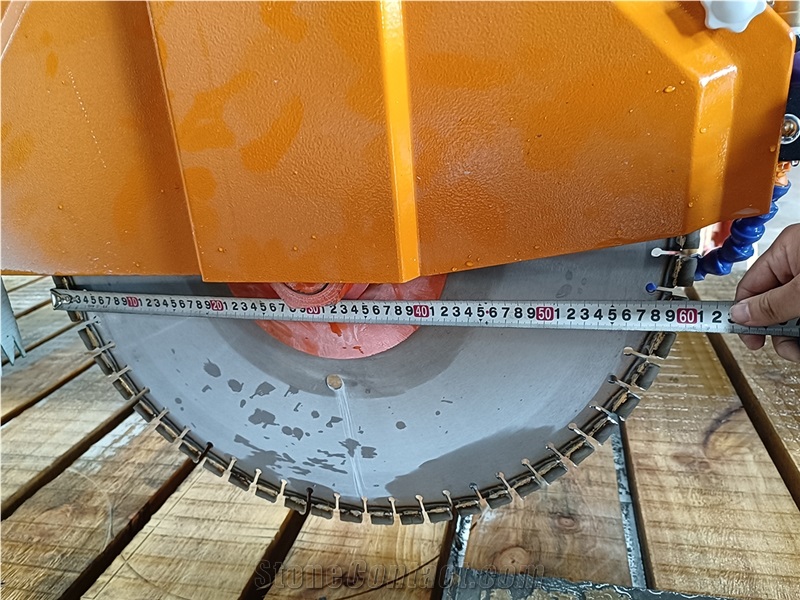

Blade diameter |
mm |
625 |
Max.height of the cut slab |
mm |
180 |
Main motor power |
kw |
18.5 |
Worktable tilting degree |
n° |
0-85 |
blade max.chamfering size |
n° |
0-45 |
Water consumption |
m³/h |
4 |
Work Example
Processed Stone Photos
