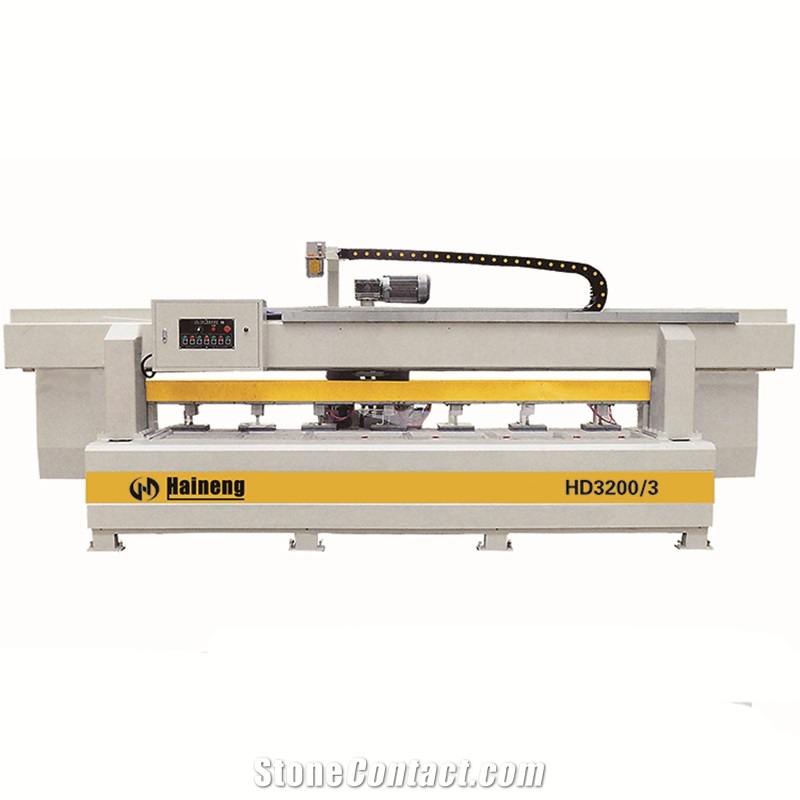

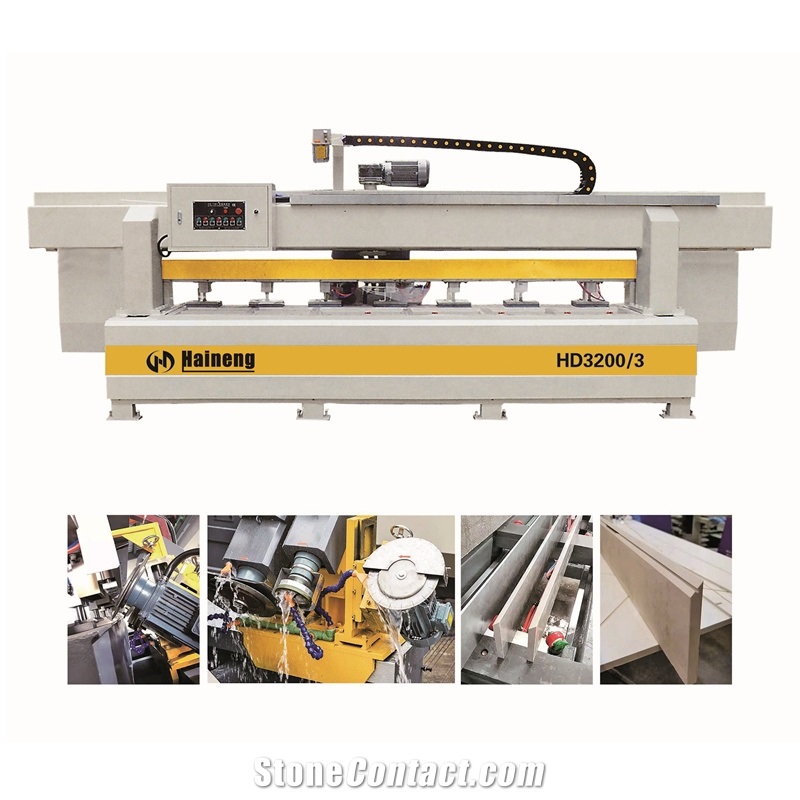

Multi-Function 45 Degree (Slab) Chamfering Machine
FOB Price:$6200-6800
Type:
Artificial Stone MachinesSquaring and Chamfering Machine
Usage:
Granite, Marble, Limestone, Artificial Stone, Quartzite
After-Sale
Lead Time:
60 days
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Regular guidance & maintenance, Remote troubleshooting
Supplier
Eatablished :Apr 13,2017
Main Product:
Stone Machinery, Stone Cutting Machine, Stone Polishing Machine, Stone Profiling Machine, CNC Bridge Saw, Stone Engraving Machine|
You may also like
Machinery Function Features
This series of models are suitable for 45 degree chamfering of rock slab, ceramic tile, marble, artificial stone, granite, cement products and other building plates. It is the ideal equipment for small and medium-sized home decoration factories and processing stores.
Technical Data
Parameters |
Unit |
HD3200-1 |
HD3200-2 |
HD3200-3 |
The total power |
kw |
12 |
15 |
18 |
Chamfer Angle |
n° |
45 |
45 |
45 |
Number of chamfering heads |
1 |
1 |
1 |
|
Gas consumption |
m³/h |
3 |
3 |
3 |
Pour the angular velocity |
m/s |
0-2 |
0-2 |
0-2 |
Polishing wheel specifications |
mm |
Inner 40/Outer 150 |
Inner 40/Outer 150 |
Inner 40/Outer 150 |
Gross weight machine |
kg |
2800 |
2800 |
3000 |
Maximum chamfering thickness |
mm |
≤20 |
≤20 |
≤20 |
Installation dimensions |
mm |
5200×1500×2100 |
5200×1500×2100 |
5200×1500×2100 |
Water consumption |
m³/h |
3 |
3 |
3 |
Number of slotted machine heads |
1 |
1 |
||
Number of polished heads |
1 |
1 |
2 |
|
Maximum chamfer width |
mm |
≥35 |
≥35 |
≥35 |
Chamfering saw blade diameter |
mm |
Φ300-Φ350 |
Φ300-Φ350 |
Φ300-Φ350 |
Slotted saw blade diameter |
mm |
Φ300-Φ350 |
||
Maximum chamfer length |
mm |
≤3200 |
≤3200 |
≤3200 |

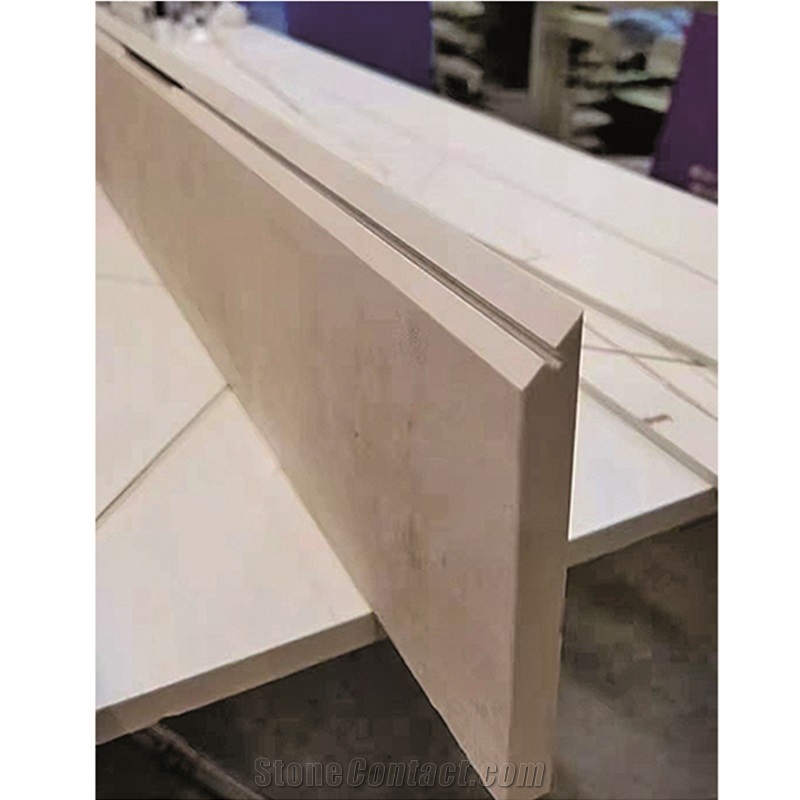

Processed Stone Photos
Components
-
¥Payment Required
Consumables
-
saw blade
Video
Install Video

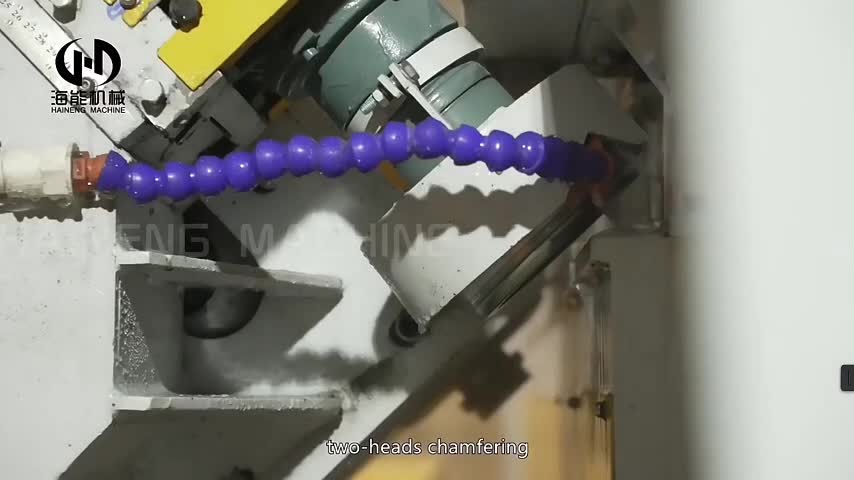

Operation Video
