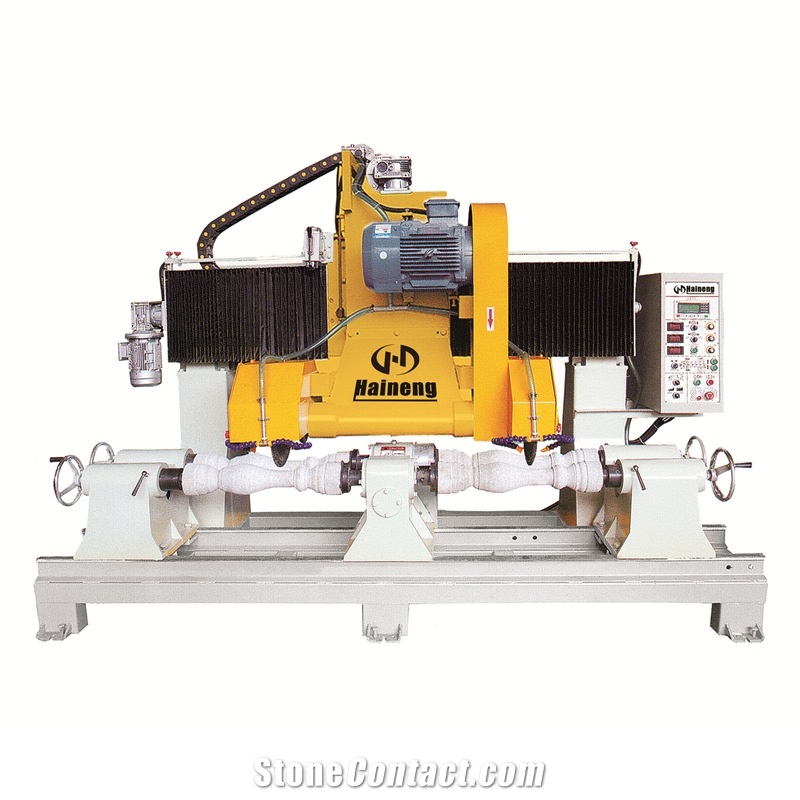

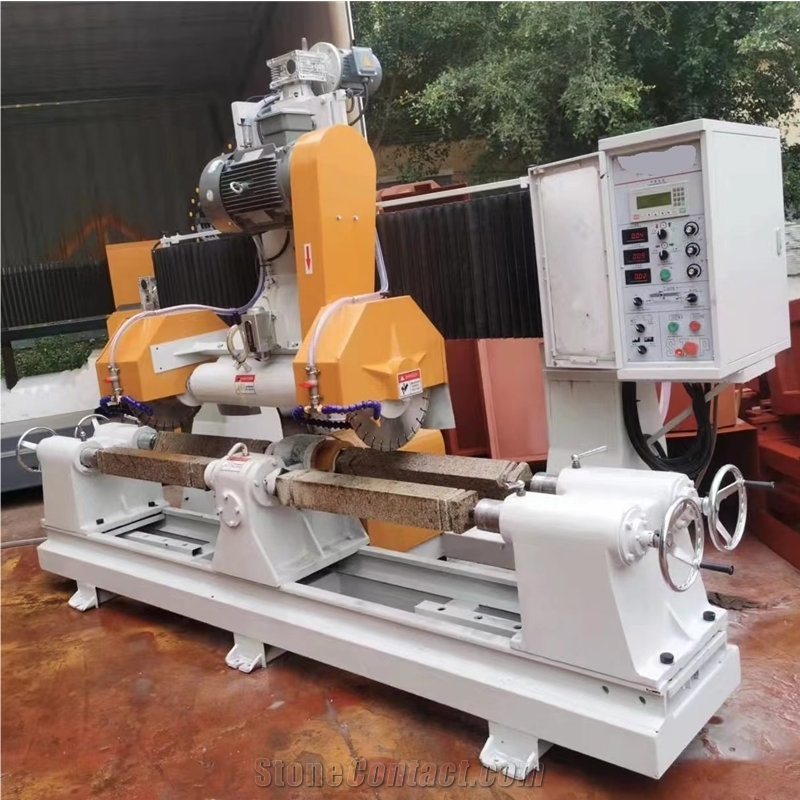

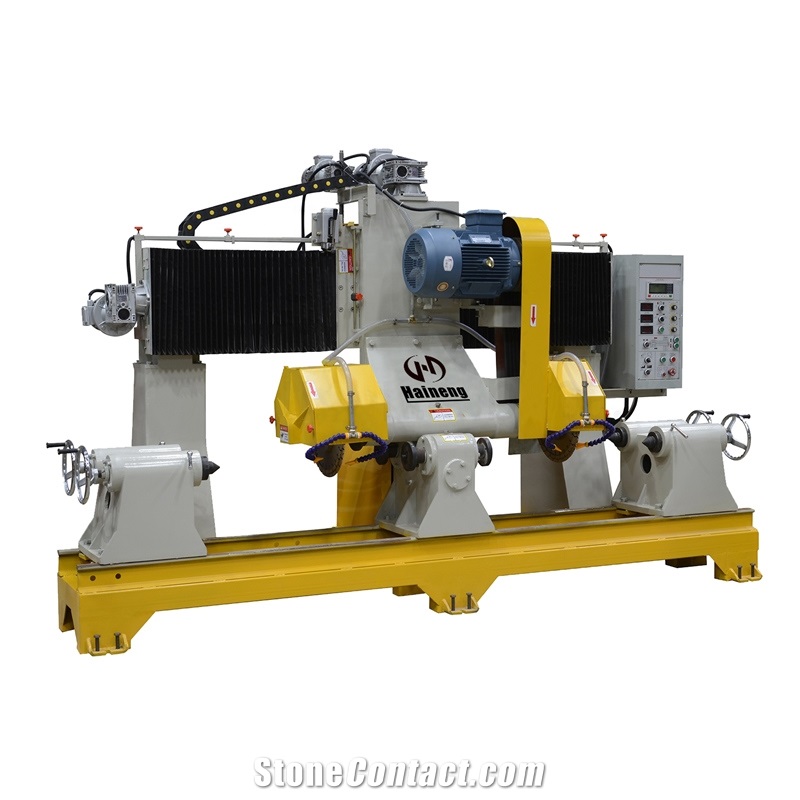

YF200 One Side Four Balusters Profiling Machine
FOB Price:$8000-8800
Type:
Stone Factory MachinesStone Finishing, Profiling MachinesColumn, Balustrade Lathe Machine
Usage:
Granite, Marble, Limestone, Slate, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time:
60 days
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Regular guidance & maintenance, Remote troubleshooting
Supplier
Eatablished :Apr 13,2017
Main Product:
Stone Machinery, Stone Cutting Machine, Stone Polishing Machine, Stone Profiling Machine, CNC Bridge Saw, Stone Engraving Machine|
You may also like
Machinery Function Features
The Portal type machine design, the microcomputer control, the optical fiber monitoring.four blocks can be processed at one time.
The circular railing, sphere, column can be cut arbitrary shaped bottom, column cap, cylindrical rotary type stone, changes the manual is not unified. consumption of a large, poor accuracy. automatic control machine. adjustable the size can be achieved after more than one person to operate machine. Machining length can be customized according to customer demand.
Technical Data
Parameters |
Unit |
YF200-4 |
YF200-2 |
Overall dimensions(L×W×H) |
mm |
3200×1225×2100 |
3200×1200×2000 |
Main motor power |
kw |
11 |
7.5-11 |
Water consumption |
m³/h |
3 |
2.5 |
Max.cutting length |
mm |
580-880 |
300-400 |
Total power |
kw |
16.57 |
12 |
Max.diameter diameter |
mm |
Ø300/2pcs Ø210/4pcs |
Ø400/1pcs Ø220/2pcs |
Approximate weight |
kg |
2500 |
3200 |
Blade diameter |
mm |
Ø400-Ø450 |
Ø400-Ø600 |

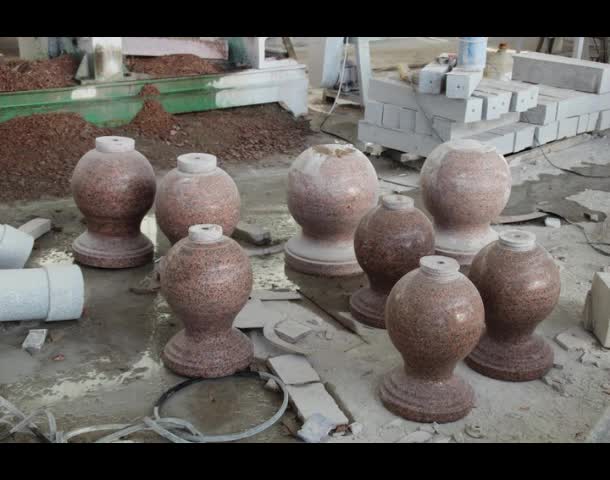

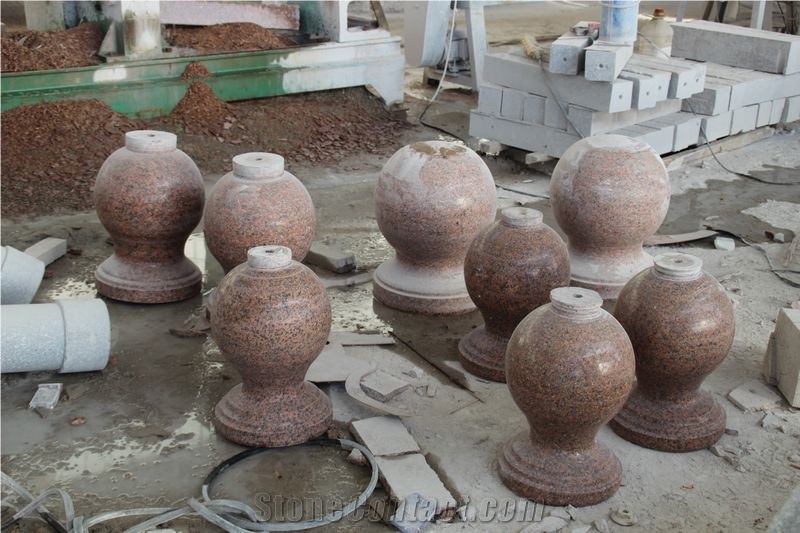

Processed Stone Photos
Components
-

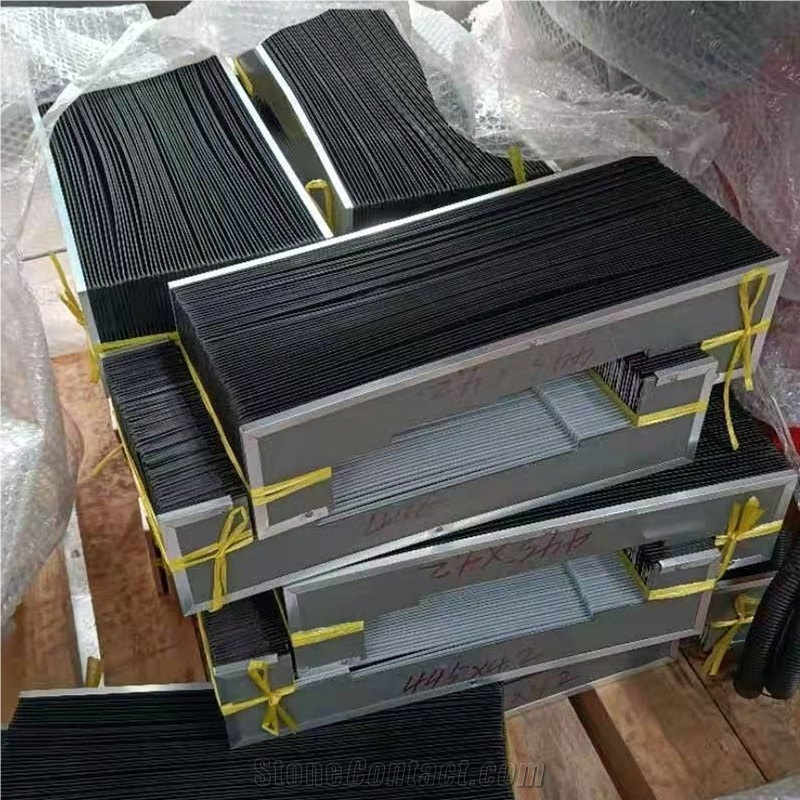

dust cover
¥Payment Required
Consumables
-

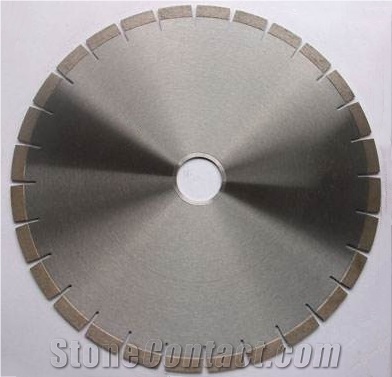

saw balde
Video
Install Video
Operation Video
