Chain Saw Machine For Crawler
FOB Price:$114000-118000
Type:
Stone Quarry MachinesStone Chain Saw MachinesBeam Chain Saw Machines
Usage:
Granite, Marble, Limestone, Slate, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time:
60 days
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Regular guidance & maintenance, Remote troubleshooting
Machinery Function Features

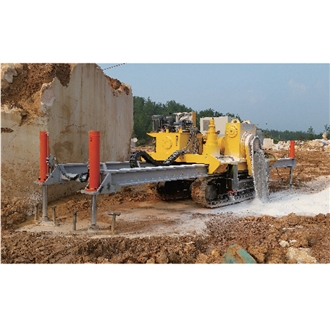

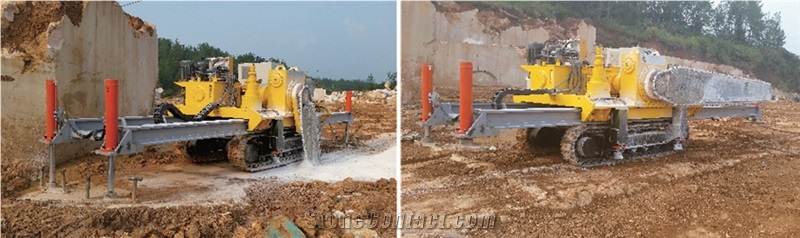

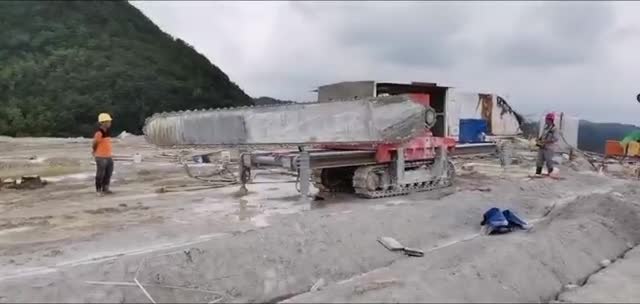

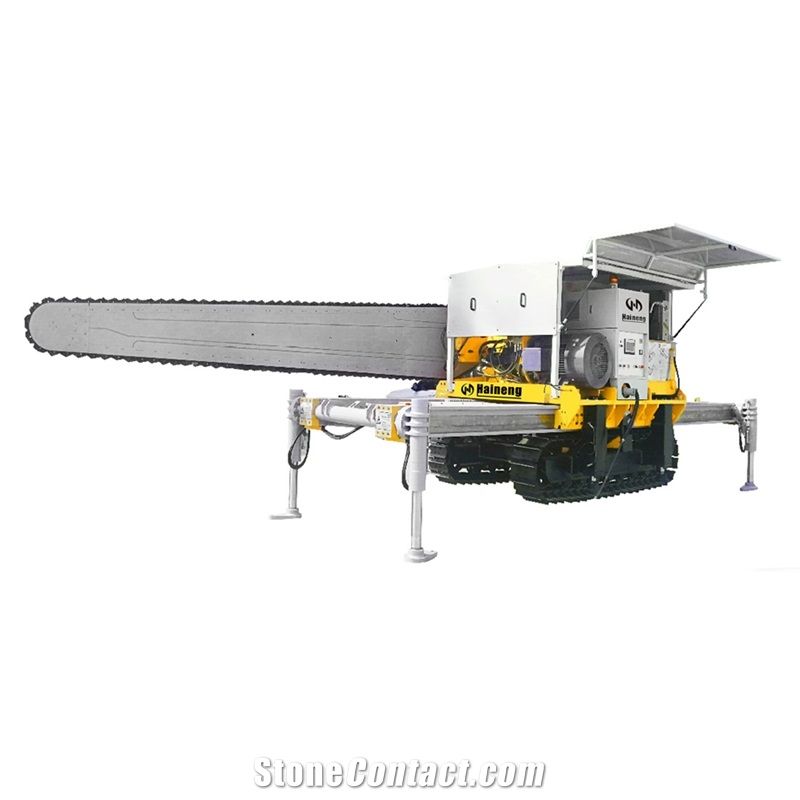

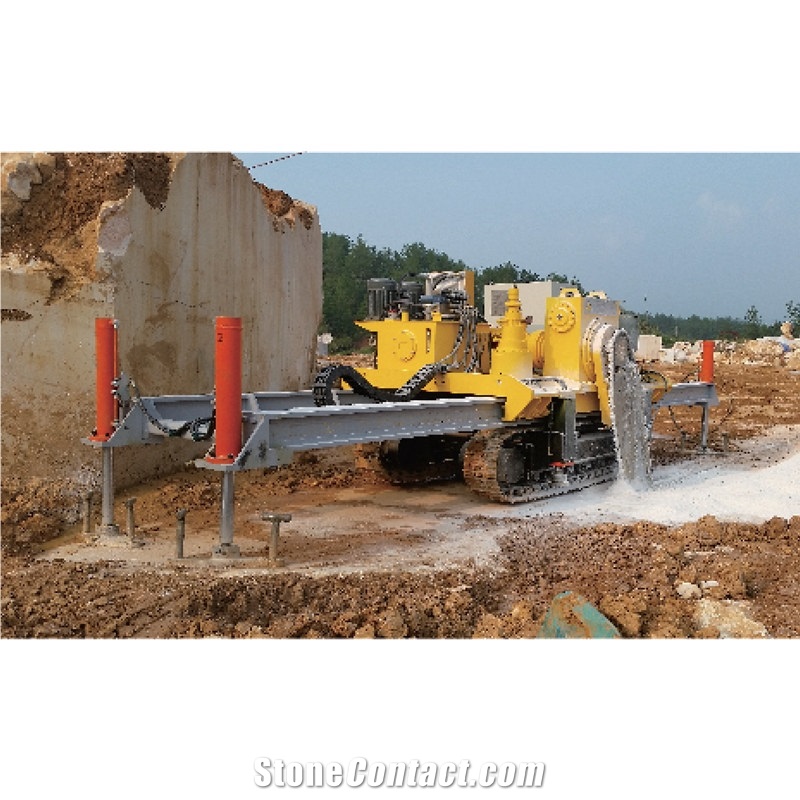

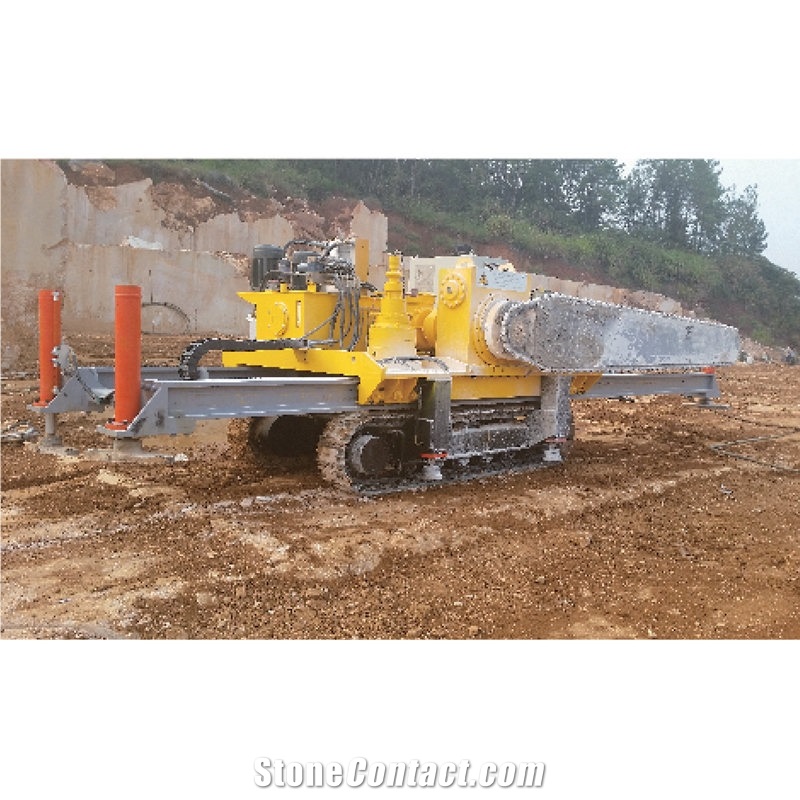

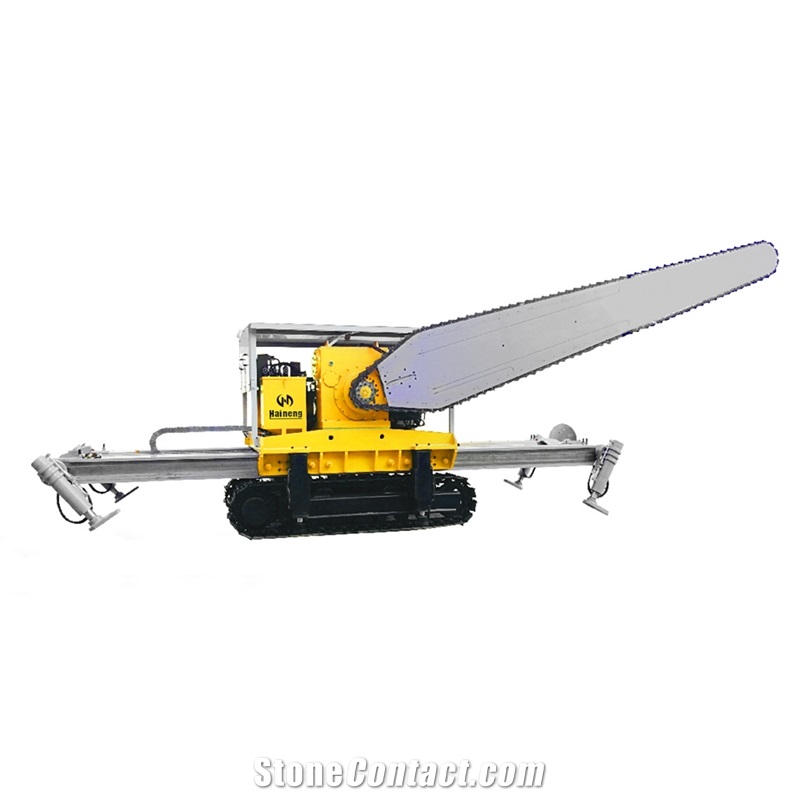

Chain saw for crawler is the enhanced one of orbital-type chain saw, the biggest characteristic of the machine is equipped with a pedrail walking itself, moving conveniently and flexibly.The machine host and pedrail move alternately in working, which don’t need to cooperate with other hoisting machinery moving track, suitable for outdoor use in mines.
The machine can move on the uneven ground, allowing the machine to overcome inclined surfaces up to 25%(14°)
The all machine is driven by a radio remote control (wireless) to allow the operator to follow all operation at a safe disance, suitable for working outside.
Technical Data
Parameters |
Unit |
LLJ2500 |
LLJ4000 |
Cutting width |
mm |
40 |
40 |
Maximum useful cut depth |
mm |
2500 |
4000 |
Cutting speed |
m/h |
0-4 |
0-4 |
Weight |
kg |
13000 |
14500 |
Dimensions |
mm |
6500×2250×2100 |
6500×2250×2100 |
Installed power |
kw |
55 |
75 |
Video
Install Video
Operation Video
