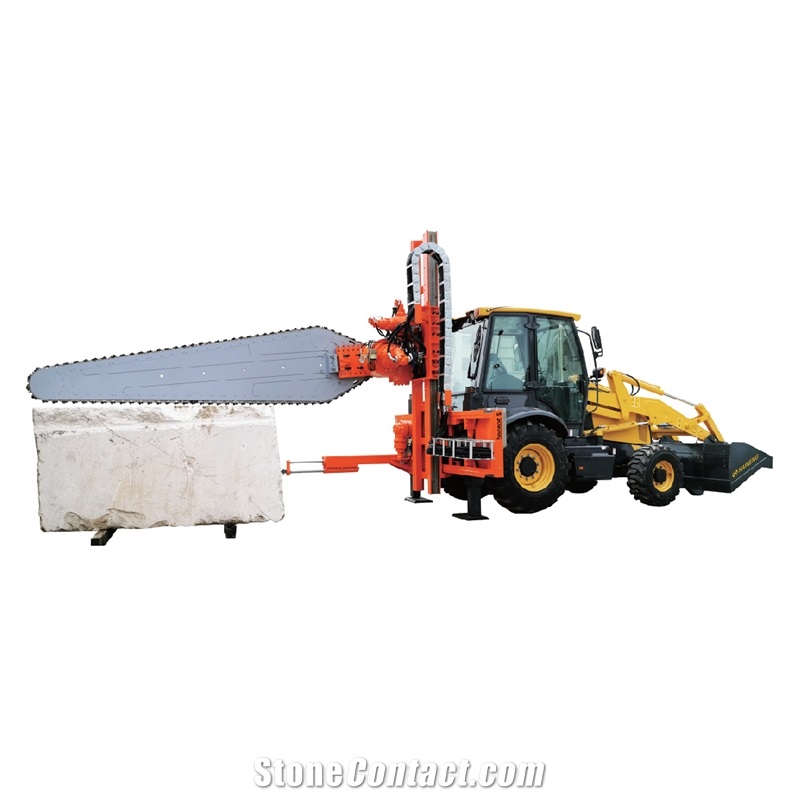

LCLJ3400 Chain Saw For Wheel Loader - Backhoe Squaring Chain Saw
FOB Price:$160000-165000
Type:
Stone Quarry MachinesStone Chain Saw MachinesBackhoe Squaring Chain Saw
Usage:
Granite, Marble, Limestone, Slate, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time:
30 days
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Regular guidance & maintenance, Remote troubleshooting
Supplier
Eatablished :Apr 13,2017
Main Product:
Stone Machinery, Stone Cutting Machine, Stone Polishing Machine, Stone Profiling Machine, CNC Bridge Saw, Stone Engraving Machine|
Machinery Function Features

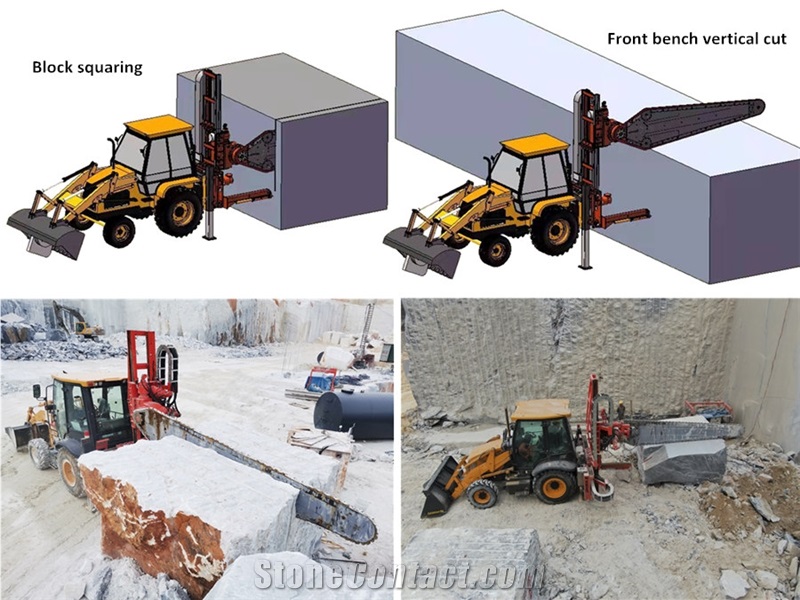

SMT-CS3400 chain saw for wheel loader consists of chain arm cutting system and wheel loader , mainly used for cuting large blocks and cutting strip ore belt in mine , its features are :
1.This machine is powered by the diesel engine of the wheel loader , which can work independently without external power supply.
2.Mining operators work in the sealed cab in a friendly and safe working environment .
3.The machine can move fast and operate conveniently with high efficiency .

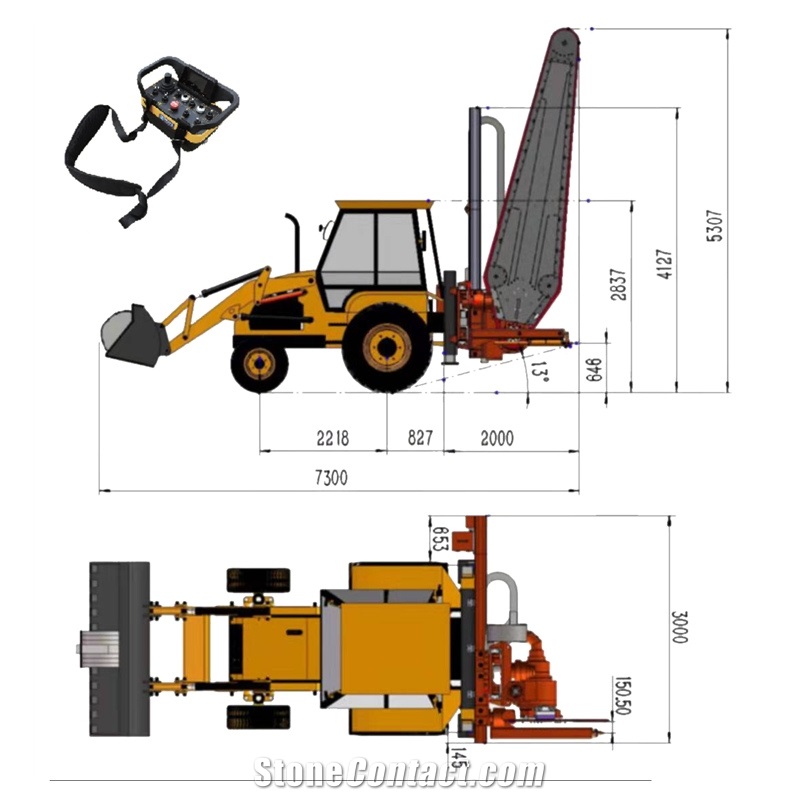

Technical Data
Parameters |
Unit |
SMT-CS3400 |
Arm rotation |
n° |
90 |
Grease tank capacity |
kg |
30 |
Total weight, including wheel loader |
kg |
11000 |
Weight of cutting unit |
kg |
3800 |
Round per minutes of the chain rotation pinion |
rpm |
65 |
Total power |
kw |
74.5 |
Horizontal stroke |
mm |
2000 |
Available lenghts of arm(Useful cut) |
m |
Da/from 2m-a/to 3.40m |
Grease capacity |
kg/h |
0.3-1 |
Vertical stroke |
mm |
3000 |
Rear gear movement maximum slope |
21% |
|
Cut width |
mm |
40 |
Round per minutes of the diesel engine |
rpm |
1400-1500 |

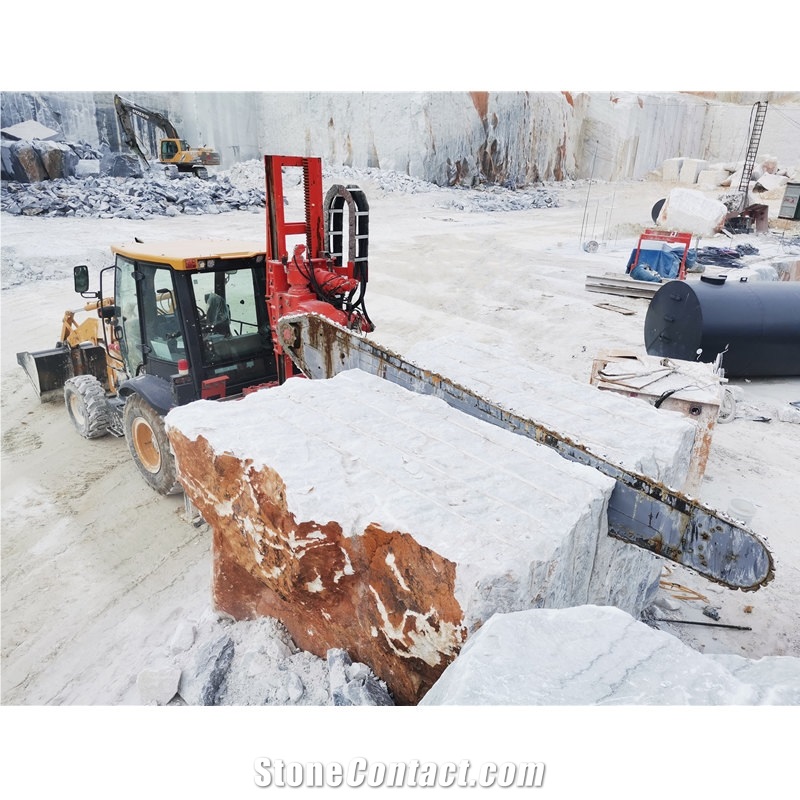

Processed Stone Photos

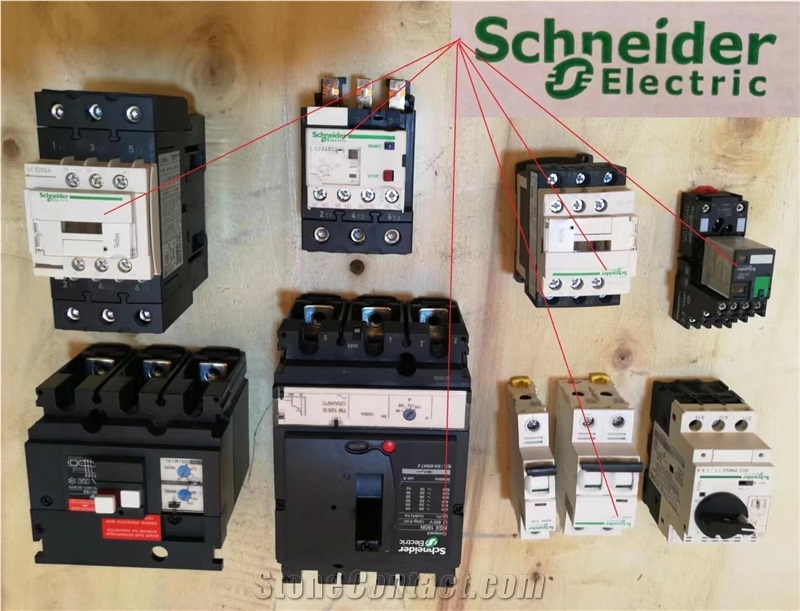

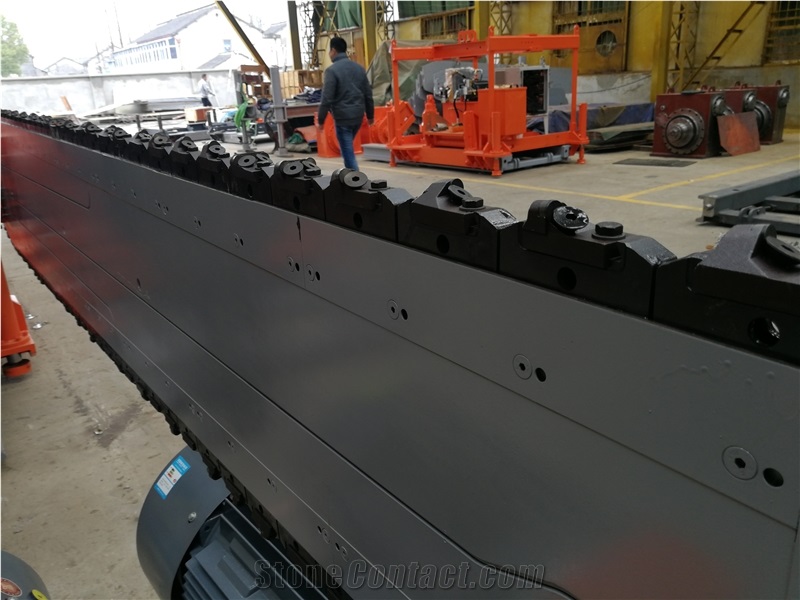

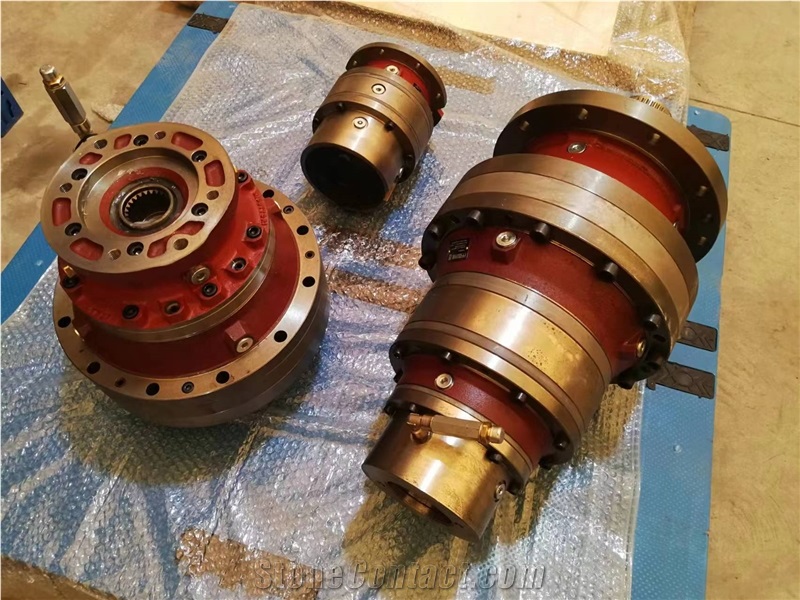

Components
-
¥Payment Required -
¥Payment Required -
¥Payment Required

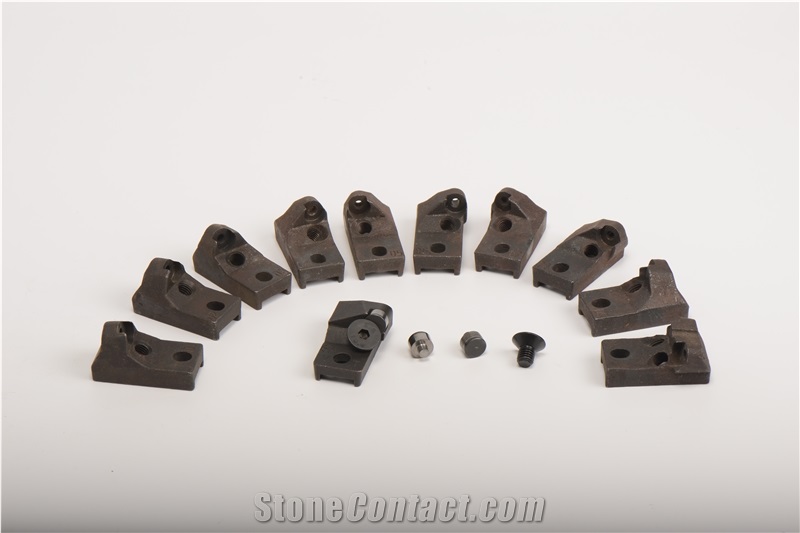

Consumables

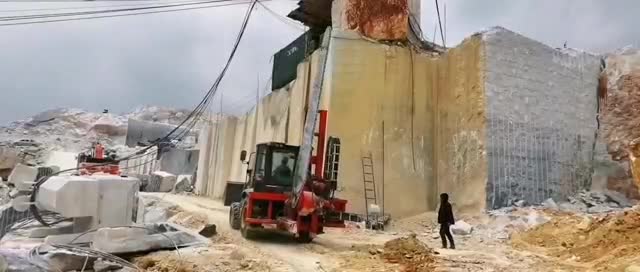

Video
Install Video
Operation Video
