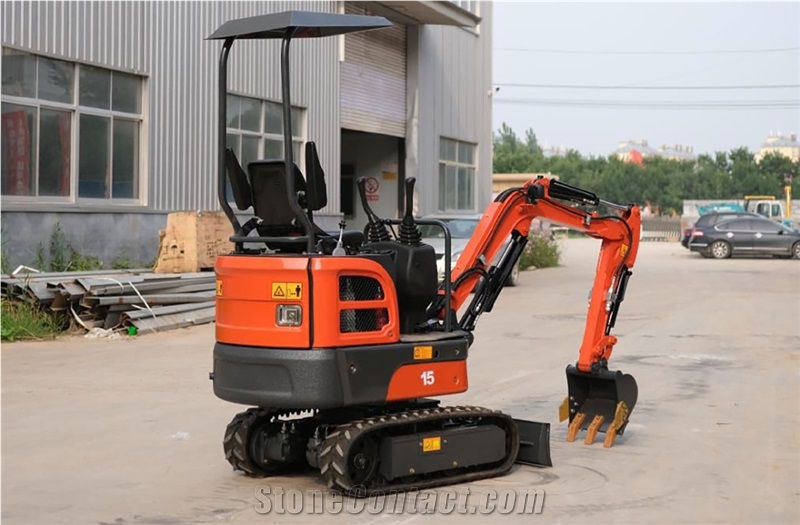

SD 15D Mini Excavator
FOB Price:$5000-20000
Type:
Stone Quarry MachinesQuarry Heavy EquipmentsExcavator
Usage:
Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time:
35 day
Warranty:12 Months
Install and Guarantee:Customer pay for installation
Maintenance:Remote troubleshooting, Field troubleshooting
Trade Terms
Port:
XIAMEN- China
Delivery Details: FOB,CFR,CIF,EXW,Express Delivery
Payment :
Supplier
Eatablished :Sep 10,2018
Main Product:
Stone Machine, Cnc Machine, Cutting Machine, Polishiing Machine, Cutting Disc, Polishing Pad|
Machinery Function Features
SD 15D Mini Excavator
Technical Data
Parameters |
Unit |
SD 15D |
Main pump flow |
L/Min |
25 |
Engine Model |
Kubota D722-EF11 |
|
Bucket Max.digging force |
kn |
7 |
Platform Rotary Speed |
rpm |
14 |
Bucket capacity |
m3 |
0.025 |
Work pressure |
mpa |
16 |
Sinking&Lifting Depth of Bulldozer |
mm |
200/175 |
Track Length |
mm |
1200 |
Min Radius of gyration |
mm |
1425 |
Max Digging Radius |
mm |
3150 |
Rated Power |
10.2kw/2500rpm |
|
L*W*H |
mm |
2880*2190*930 |
Max Dumping Height |
mm |
2150 |
Max Grade ability |
30° |
|
Max Digging Depth |
mm |
1450 |
Platform Width |
mm |
830 |
Ground pressure |
kpa |
35 |
Max Ground Level Excavation Distance |
mm |
3300 |
Max Digging Height |
mm |
2750 |
Max Walking Speed |
km/h |
2.3 |
Track Width |
mm |
180 |
Radius of Tail Gyration |
mm |
890 |
Platform Ground Clearance |
mm |
410 |
