Circular Column, Arc Slab Polishing Machine
FOB Price:$27000-32000
Supplier
Eatablished :Jun 26,2024
Main Product:
STONE CUTTING MACHINE, BRIDGE CUTTING MACHINE, BLOCK CUTTING MACHINE, WIRE SAW MACHINE, WIRE SAW, ENGRAVING MACHINE|

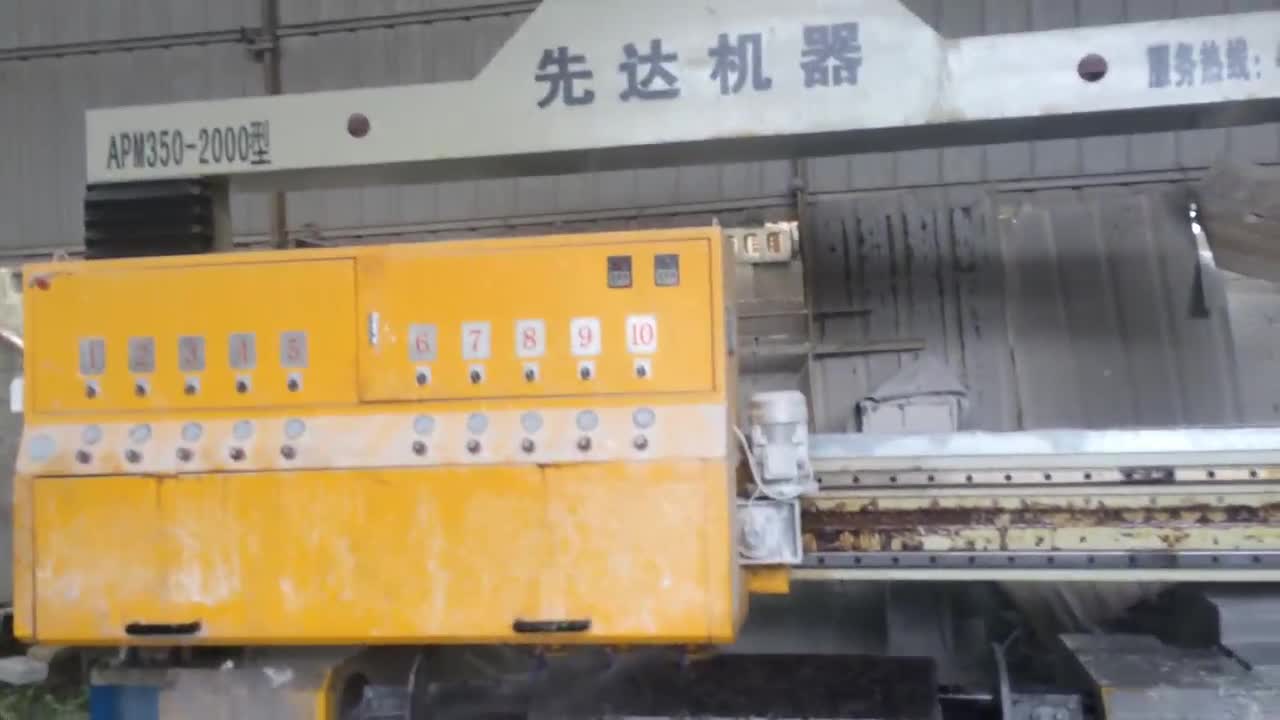

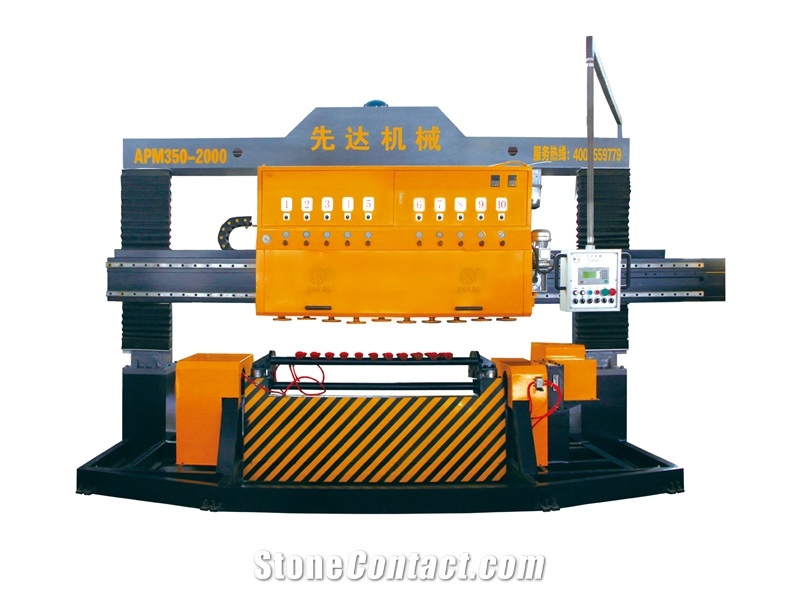

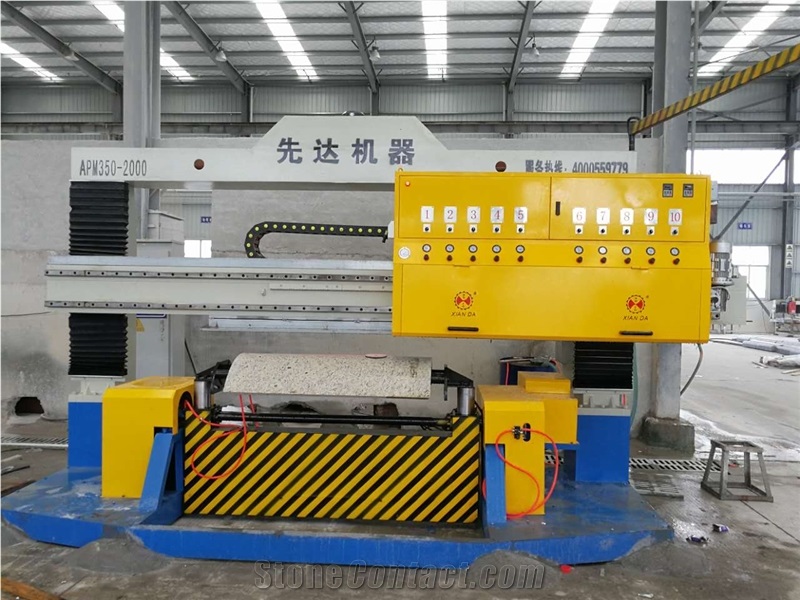

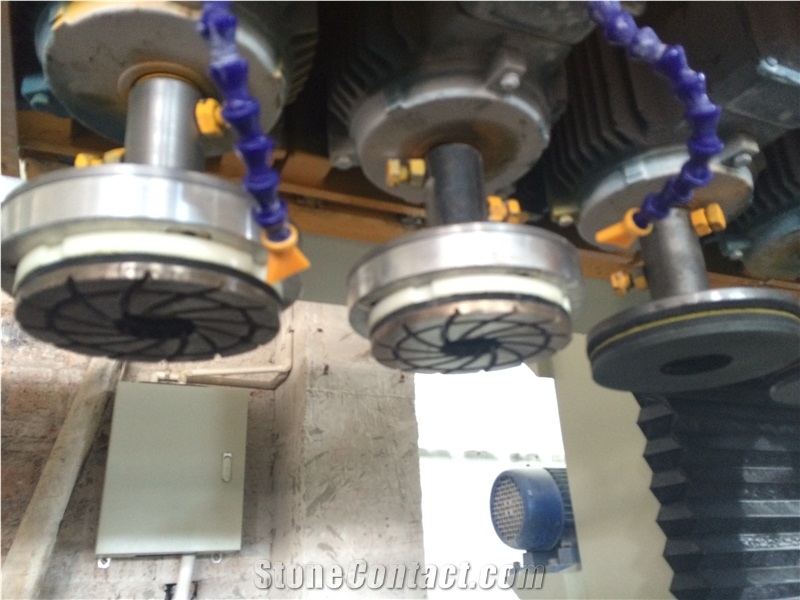

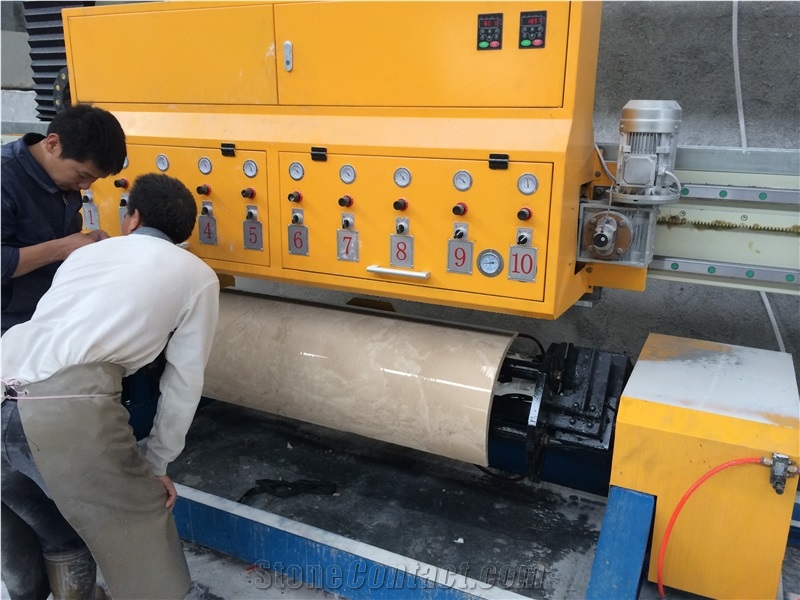

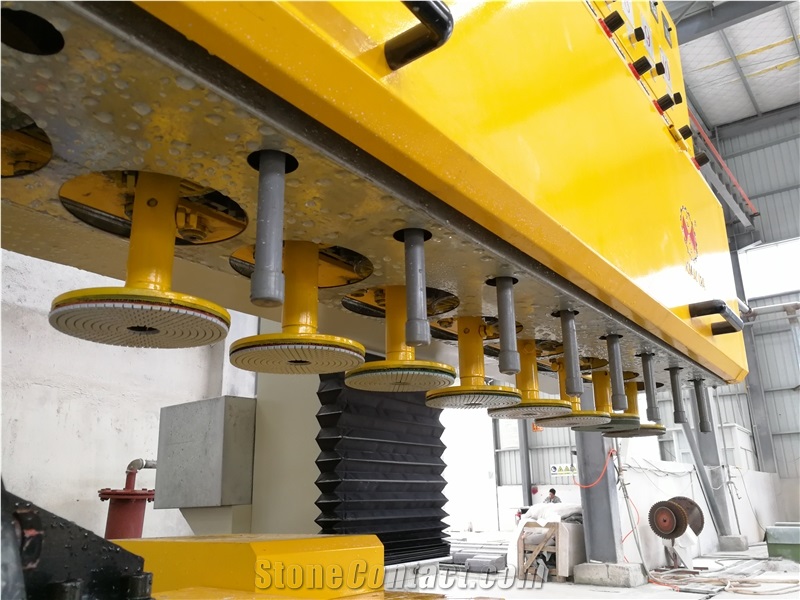

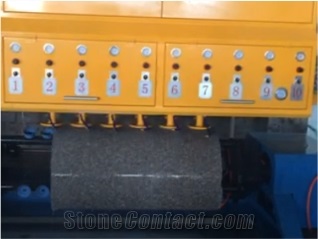

APM-350-2000,Arc Slab Polishing Machine fix the arc slab by vacuum sucker, replaced conventional clamping fixing on both sides, solved the deviation of the squareness and inclination which were generated by the steps trimming-grinding, at the meanwhile, clear the customer's concerns about arc slab edge & angle damage. Machine adopt linear guides, multi grinding head and PLC system. it has a high-precision, high efficiency, easy operation and others, it is the ideal equipment for arc slab polishing.
Parameters |
Unit |
APM350-2000-10 |
Machine overall height |
mm |
2900 |
Max. Processing diameter |
mm |
350-2000 |
Machine overall width |
mm |
1700 |
Machine overall length |
mm |
5200 |
Max. processing arc slab length |
mm |
1300 |
Water consumption |
m3/h |
6 |
Total power |
kw |
30 |
Approx. Weight |
Kg |
5000 |
