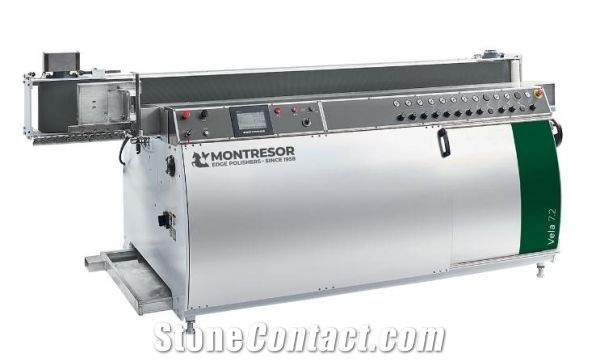

MONTRESOR EDGE POLISHERS VELA 7.2
FOB Price:
Type:
Stone Factory MachinesStone Finishing, Profiling MachinesEdge Profiling, Polishing Machine
Usage:
Granite, Marble, Artificial Stone
Supplier
Machinery Function Features
"The new vertical edge polisher Vela 216 is designed for a mirror polish on straight edges of granite, engineered stone, ceramics and marble from 10 to 60 mm of thickness, with the use of 7 oscillating frontal units.
The frontal unit for mirror polishing are able to act even in case of light cutting defects, or edges slightly out of square.
The innovative system with double conveyor belt guarantees a perfect adherence for work pieces with a width from 45 mm and short sides from 80 mm.
Very sturdy steel structure, totally worked with machine tool, sandblasted before giving a galvanizing epoxy-based undercoat and two layers of undercoat and paint.
Technical Data
Parameters |
Unit |
VELA 7.2 |
Water consumption |
m3/h |
9-10.5 |
Min workpiece length |
mm |
60 |
Max. processing thickness |
mm |
60 |
Approx. Weight |
Kg |
2100 |
Machine overall width |
mm |
1460 |
Max. processing width |
mm |
45 |
Belt advancement speed |
mm/min |
0 – 3500 |
Total power |
kW |
18 – 21 |
Min. processing thickness |
mm |
10 |
Machine overall length |
mm |
3250 |
Air consumption per minute |
l/min |
20 |
Machine overall height |
mm |
1230 |
