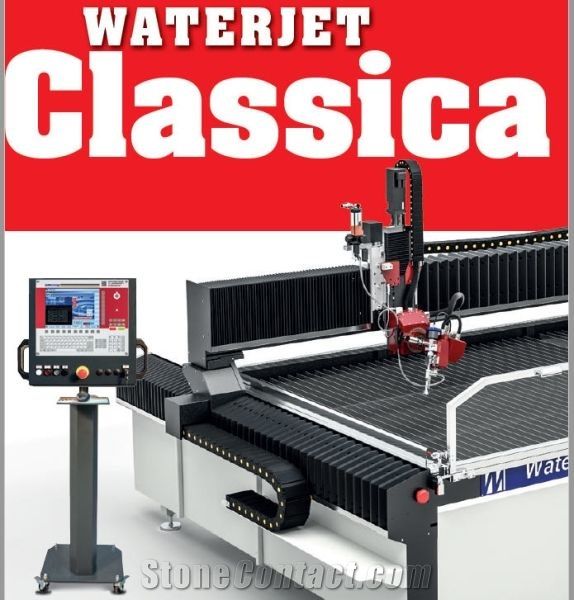

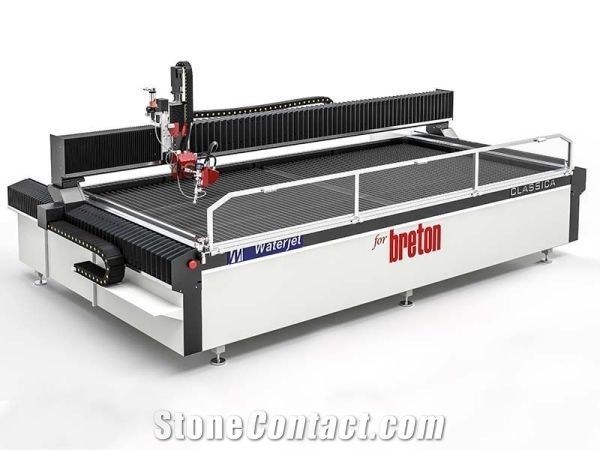

CNC 3- OR 5-AXIS Waterjet Classica Waterjet Saw Machine
FOB Price:
Type:
Stone Factory MachinesStone Finishing, Profiling MachinesWaterjet Machines
Usage:
Granite, Marble
After-Sale
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Online software upgrade, Regular guidance & maintenance
Trade Terms
Delivery Details: FOB
Payment :

Supplier

Breton S.p.A.
Italy
Eatablished :Dec 31,1962
Main Product:
Stone Machines, Cutting Machine, Polising Machine, Wire Saw, Cnc Machines|
Machinery Function Features

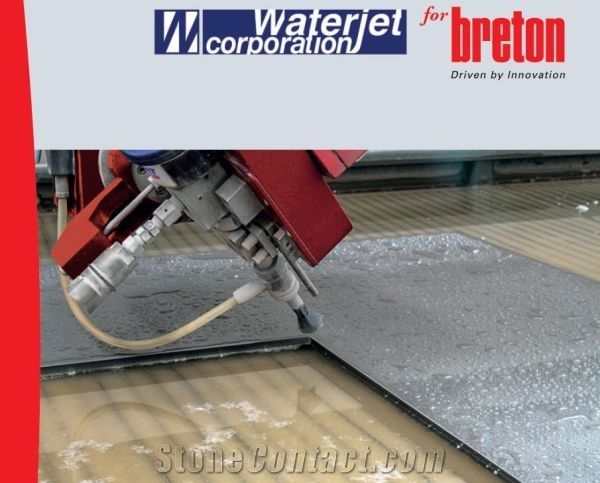

Waterjet Corporation is the well-known Italian company that has, since 1991, been producing waterjet cutting machines used in the stone and metal machining fields, the latter being an industry which requires top performances and precision.
Breton, in order to complete its range of machines for natural and engineered stone processing fabshops, entered into a cooperation agreement with Waterjet Corporation granting exclusive rights for distribution of their cutting machines, all of which are precise, powerful, fast and equipped with a pump of up to 6200 bar (option).

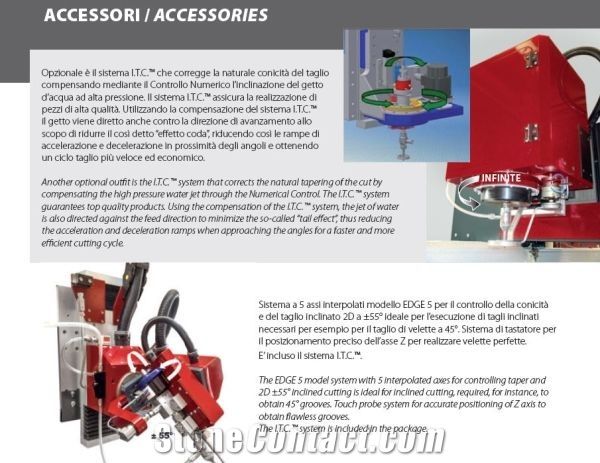

5-AXIS 3D SYSTEM WITH TOUCH PROBE AND ANTI-COLLISION FUNCTION
The exclusive 3D and 2D Bevel cutting system uses an automatically positioned touch probe to maintain constant distance from the nozzle AUTOMATICALLY, thus protecting the nozzle during plane cutting with ± 69° interpolated tilt or with I.T.C. technology.
Technical Data
Parameters |
Unit |
CL 44 |
CL 510 |
CL 612 |
Z-axes travel |
mm |
180 |
180 |
180 |
Machine length (L) |
mm |
2500 |
4460 |
5060 |
Waterjet pump power |
kW |
37 |
37 |
37 |
Y-axes travel |
mm |
1250 |
1800 |
2000 |
Dimensions of the work table |
mm |
1550x1550 |
3675x2100 |
4275x2240 |
Capacity of external tank for abrasive |
kg |
300 |
300 |
300 |
Average level of equivalent sound power |
dbA |
80 |
80 |
80 |
Machine height (H) |
mm |
1700 |
1800 |
1800 |
Machine width (W) |
mm |
2300 |
2260 |
2700 |
X-axis travel |
mm |
1250 |
3400 |
4000 |
Waterjet pump capacity |
l/min |
3.6 |
3.6 |
3.6 |
Approximate weight(including table) |
kg |
3000 |
3500 |
4000 |
Waterjet max pressure |
bar |
3800 |
3800 |
3800 |
X - Y axis displacement speed |
m/min |
0 ÷ 36 |
0 ÷ 36 |
0 ÷ 36 |
