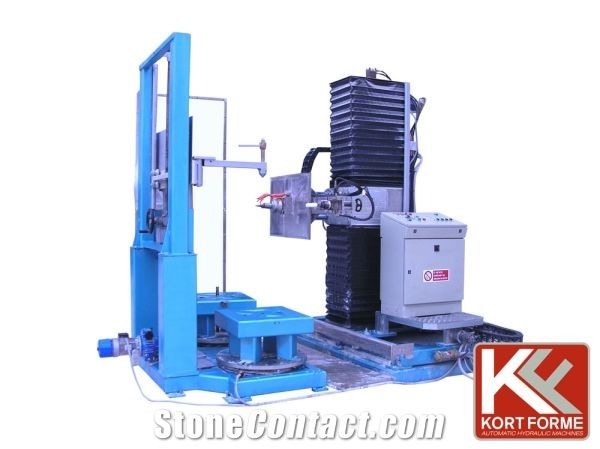

KORT VERTICAL Sculpturing Machine
FOB Price:
Type:
Stone Factory MachinesStone Finishing, Profiling MachinesStone Carving,Engraving Machine
Usage:
Marble, Limestone, Sandstone
After-Sale
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Online software upgrade, Regular guidance & maintenance
Supplier
Eatablished :Dec 29,2000
Main Product:
Sculpturing Machines, Lathes, Tools|
Machinery Function Features
KORT VERTICAL SCULPTURING MACHINE with the following function to core, to rough-hew and to mill, completely automatic and hydraulic. The machine is practice, cheap, fast and sturdy, is highly competitive to work bas-reliefs, statues, capitals, vases...

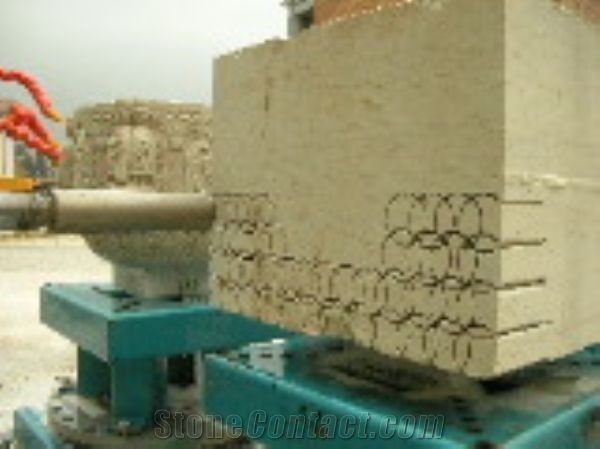

TYPOLOGY OF WORKMANSHIPS

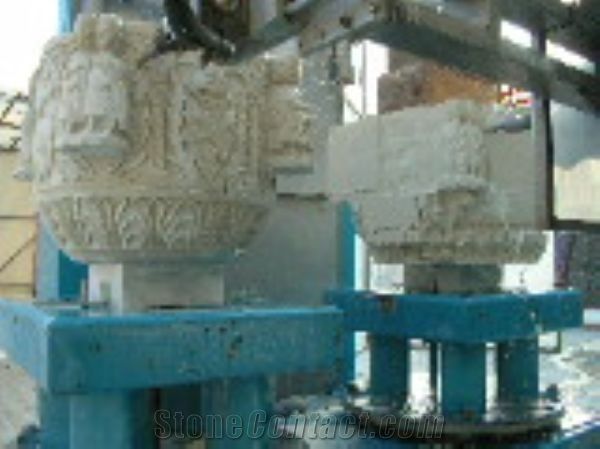

Statues, capitals, vases, wells, fountains
Working dimension: 2000x1100 Ømm
Bas-reliefs
Working dimension: 1800x1100x400 mm
TECHNICAL DATA
TOOL ENGINE POWER:
9,5 kw/ 12,5 Hp
1400 ÷ 3500 rpm
Tool joint 1” (standard)
DISK ENGINE POWER:
5 kw / 6,5 Hp - 1400 rpm
Disk housing Ø 400 mm
ROTATING WHEELBASES:
Hydraulic engine
Synchronized
SELF-ADJUSTABLE COPYING VALVE KORT
WORKING GROUP:
structure in aluminium
chromate sliding shafts
TOTAL POWER:
12 kw / 16 Hp
380 V – 50 Hz
Technical Data
Parameters |
Unit |
KORT VERTICAL |
Total power |
kW |
12 |
Main spindle motor power |
kW |
5 |
Number of engraving head |
nr |
1 |
Disk housing dia. |
mm |
400 |
Max. Processing Width |
mm |
1100 |
Max. processing thickness |
mm |
1100 |
Max. processing length |
mm |
2000 |
Min. Processing Width |
mm |
1100 |
