Mobile Concrete Batching Plant SUMAB 500 (4AG)
FOB Price:€40000-45000
Type:
Artificial Stone MachinesRaw Material Mixer
Usage:
Artificial Stone
After-Sale
Warranty:12 Months
Install and Guarantee:Customer pay for installation
Maintenance:Regular guidance & maintenance, Remote troubleshooting, Field troubleshooting
Supplier
Eatablished :Jan 01,2010
Main Product:
Concrete Plant, Block Making Machine, Precast Machine|
Machinery Function Features

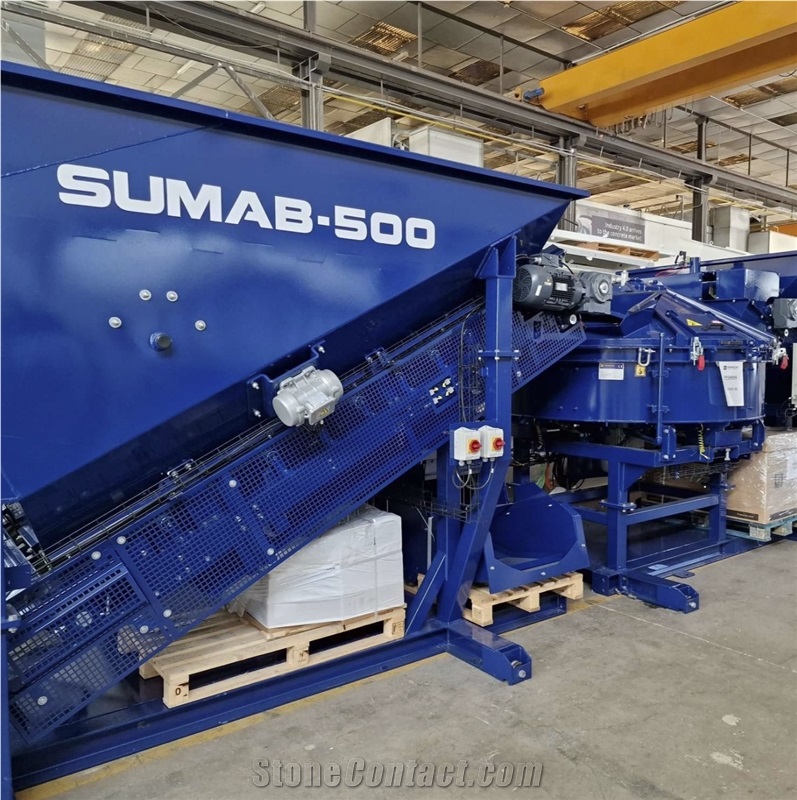

Mobile concrete batching plant SUMAB 500 (4AG)
Mixer with vertical axle FTR-750. Capacity: 750 litres.
Useful vibrated concrete capacity: 500 litres per cycle.
22 kw Siemens geared motor.
Weighing system fitted with 3 load cells of 2,000 kg.
WATER DOSING.
3 HP compressor with 90 litres tank.
AGGREGATE STORAGE HOPPERS.
4 hoppers with a total capacity of 14 m³. Dimensions of the set :
Length : 2 x 5,900 mm. Width : 2,415 mm.
Made of 4 mm steel plate. Support structure made of laminated steel profiles.
Fully automatic.
Dynamic control of production flows. Automatic activation of vibrators and fluidisers .
Weight safety control in scales.
Dynamic cycle corrections.
Quick batching of products for consignment Printing of dispatch tickets.
Technical Data
Parameters |
Unit |
SUMAB 500 (4AG) |
Machine overall length |
mm |
5900 |
Machine overall width |
mm |
2415 |
Useful vibrated concrete capacity: |
lt |
500 per cycle |
Total motor power |
kw |
22 |
Weighing system fitted with 3 load cells |
kg |
2000 |
Mixer with vertical axle FTR-750 |
lt |
750 |
