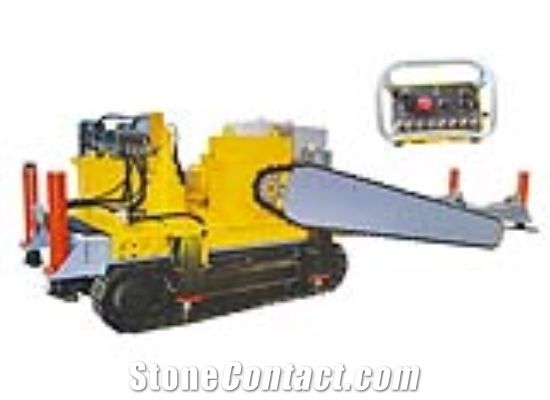

Crawler type chain saw
FOB Price:
Type:
Stone Quarry MachinesStone Chain Saw MachinesSquaring Chain Saw Machines
Usage:
Granite, Marble
Supplier
Machinery Function Features
Crawler-type chain saw is the enhanced one of orbital-type chain saw,the biggest characteristic of the machine is equipped with a pedrail walking itself,moving conveniently and flexibly. The machine host and pedrail move alternately in working , which don't need to cooperate with other hoisting machinery moving track, suitable for outdoor use in mines. Each machine can be designed to have two kinds of working model--- vertical and horizontal cutting.
Technical Data
Parameters |
Unit |
GD-CS2500 |
GD-CS3500 |
Total machine weight |
Kg |
13000 |
14500 |
Dimension LxWxH |
mm |
6500×2250×2100 |
6500×2250×2100 |
Cut width |
mm |
40 |
40 |
Installed power |
kW |
46 |
56 |
Maximum cutting depth |
m |
2500 |
3500 |
Movement speed on tracks |
Km/h |
0.6 |
0.6 |
Cutting speed |
m/h |
0~4 |
0~4 |
