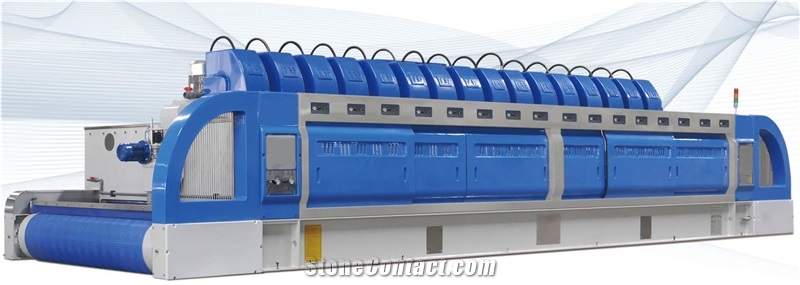

AUTOMATIC Granite Slab Grinding And Polishing Line Machine

FOB Price:

Type: Stone Factory MachinesStone Surface Processing Machines Slab Polishing Line Machine
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time: 35 day
Warranty:12 Months
Install and Guarantee:Customer pay for installation
Maintenance:Remote troubleshooting, Field troubleshooting
Trade Terms
Port: XIAMEN- China
Delivery Details: FOB,CFR,CIF,EXW,Express Delivery
Payment : Payment Payment Payment

Supplier

XIAMEN SHUINAN MACHINE CO.,LTD.

XIAMEN SHUINAN MACHINE CO.,LTD.
SHUINAN MACHINE

ChinaChina level5YR idicon

Eatablished :Sep 10,2018

Main Product:

Stone Machine, Cnc Machine, Cutting Machine, Polishiing Machine, Cutting Disc, Polishing Pad|

Contact supplier

Start Order

You may also like
AUTOMATIC Slab Grinding And Polishing Line Machine
AUTOMATIC Slab Grinding And Polishing Line Machine
Automatic Polishing Line Machine For Natural And Artificial Stone Slab
Automatic Polishing Line Machine For Natural And Artificial Stone Slab
Dafon Auto Granite Marble Slabs Polishing And Grinding Line Machine
Dafon Auto Granite Marble Slabs Polishing And Grinding Line Machine
Swing Type Multi-Heads Polishing Machine
Swing Type Multi-Heads Polishing Machine
HLMJD-12C/20C Fully Automatic Stone Slab Polishing Line Machine
HLMJD-12C/20C Fully Automatic Stone Slab Polishing Line Machine
  • Overview
  • Components
  • Trade Terms
Machinery Function Features
AUTOMATIC GRINDING GRANITE MACHINE
Technical Data
Parameters
Unit
1TRAVE-1BEAM
2TRAVE-2BEAM
Useful working width
MM
2200
2200
Polishing plate diameter
MM
470
470
Conveying belt motor power
KW
3
3
Water consumption
L/MIN
420
500
L*W*H
MM
14000*3700*2842
16240*3700*2842
Total installed power
KW
258
330
Number of polishing heads
N
16
20
Belt speed
M/MIN
0.3-3.6
0.3-3.6
Working thickness for slabs
MM
10-100
10-100
Beam motor power
KW
7.5*2
5.5*4
Polishing heads motor power
KW
15/18.5
15/18.5
Number of beams
N
1
1
Number of motors for each beam
N
2
2
