SAL-1200-08 Automatic Litchi-Surface Grinding Machine

Name: SAL-1200-08 Automatic Litchi-Surface Grinding Machine
Brand: FUJIAN JOBORN MACHINERY CO.,LTD.
SKU: 8120
Price: 33999 USD
Availability: InStock

FOB Price:$33999-36999

Type: Stone Factory MachinesStone Surface Processing Machines Stone Brushing-Aging Machine

Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine

After-Sale

Lead Time: 25~30 days after prepayment received

Warranty:12 Months

Install and Guarantee:Customer pay for installation, Remote guidance installation, Third-party team installation

Maintenance:Online software upgrade, Remote troubleshooting, Field troubleshooting

Supplier

FUJIAN JOBORN MACHINERY CO.,LTD.

JOBORN MACHINERY

China level 4YR

Eatablished :Jul 28,2015

Main Product:

Stone Block Cutting Machine, Bridge Saw Machine, Stone Polishing Machine, CNC Bridge Cutting Machine, Bridge Cutting Machine, Stone Profiling Machine|

Contact supplier

Start Order

You may also like

HSN-1000 Brushing Finishing Machine for Granite and Stone

YP 200 Automatic Surface Pitching Machines- Split Face Machine

Product Detail
Company Profile

Overview

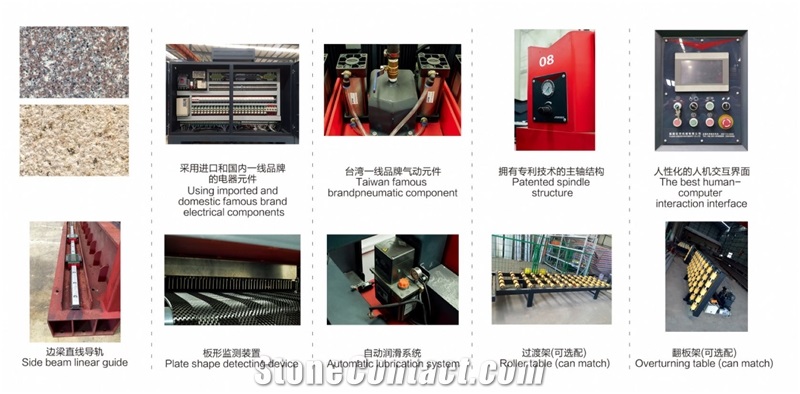

Components
Video

Machinery Function Features

The grinding head is pneumatic lifting, the maximum processing height of the grinding head is 80mm, the grinding head is a special litchi surface grinding head, and the number of grinding heads is 8; Linear rolling guide rail for moving back and forth; Adopt independent patented technology of spindle structure, plate shape detection device, automatic lubrication system;

Technical Data

Parameters	Unit	SAL-1200-08 Automatic litchi-surface grinding machine
Machine overall height	mm	2200
Machine overall width	mm	3300
Cooling water requirement	30	8
Total installed electrical power	7	7.5
Number of polishing heads/honing units	74	8
Machine overall length	mm	5600
Conveyor system forward speed	12	0~3.5
Approx. Weight	Kg	9000

Software

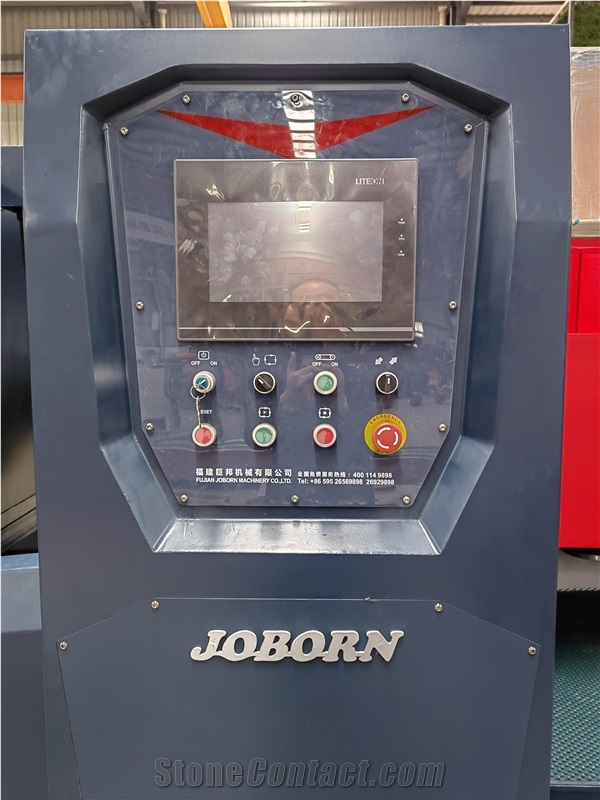

PLC computer operating system

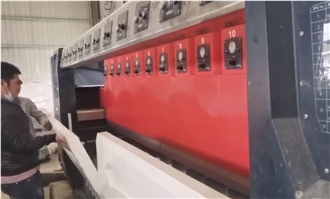

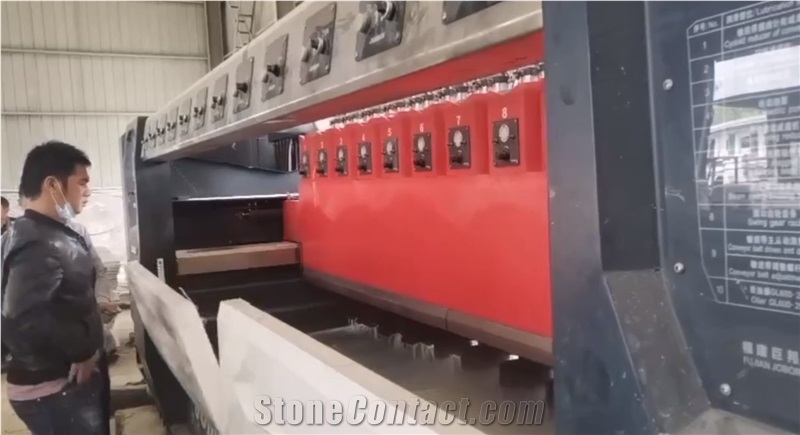

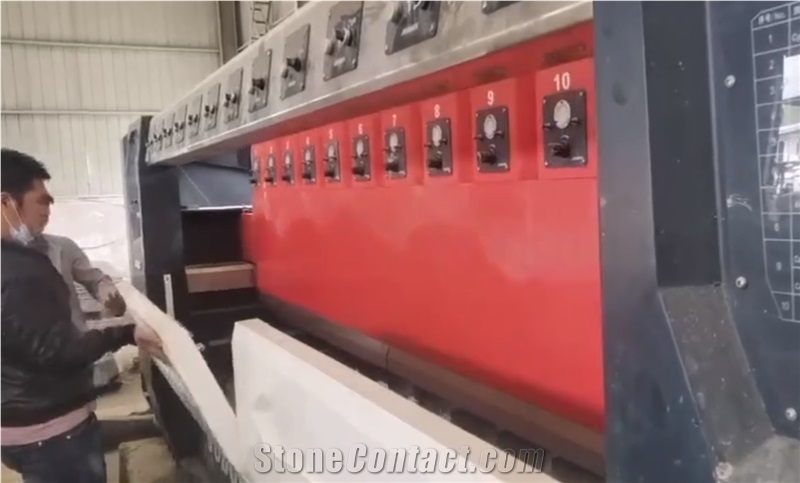

Work Example

The grinding head is pneumatic lifting,the maximum processing height of the grinding head is 80mm,the grinding head is a special litchi surfacegrinding head,and the number o fgrinding heads is 8;Linearroling guiderail for moving back and forth;
Adopt independent patented technology of spindlestructure,plate shape detection device,automatic lubrication system;

Processed Stone Photos
