4+1 CNC Bridge Saw Machine

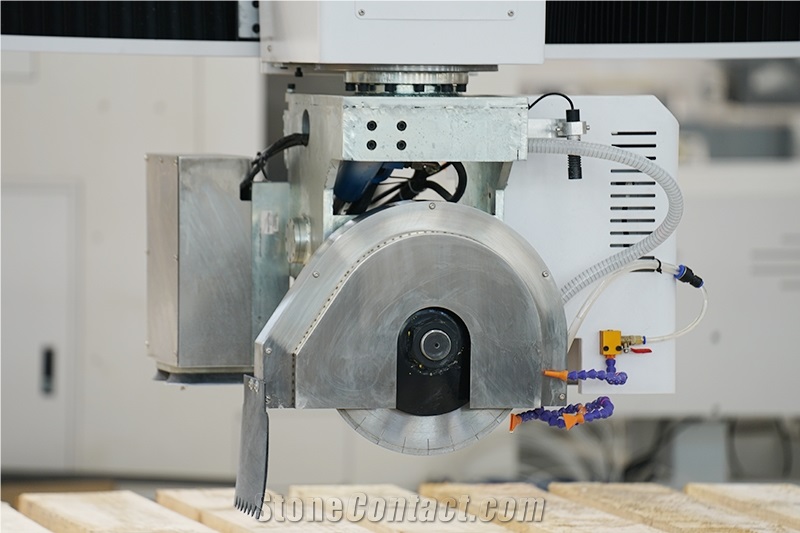

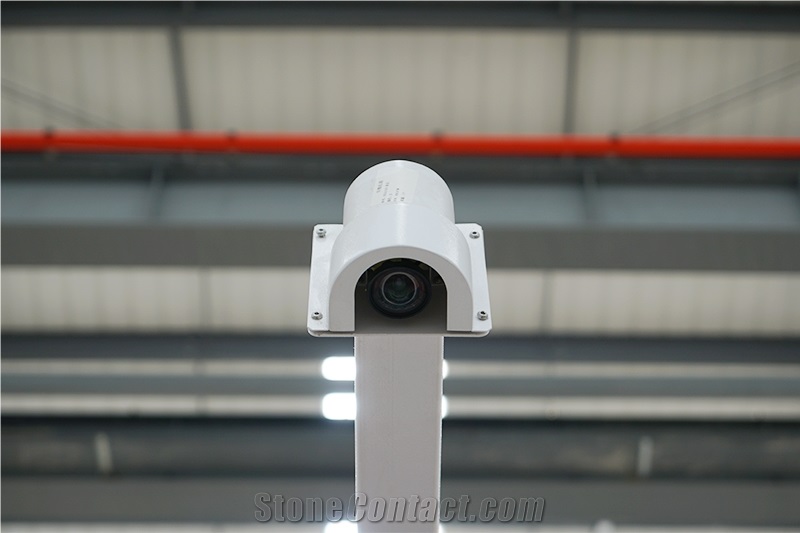

Description This 4+1 CNC bridge saw machine features a 5.5KW liquid-cooling spindle that can alternate with a saw blade, significantly improving production efficiency. Additionally, compared to the standard bridge saw, it includes an industrial camera and material-shifting function. This allows users to select desired patterns from the system’s preset designs, greatly reducing drawing time. Features 1.The 4 ＋1 CNC bridge saw can realize cross cutting, vertical cutting, bevel cutting, rhombus cutting, circle cutting, oval cutting, 45°chamfering, under-counter basin and in-counter basin cutting, etc. 2.The saw blade diameter of this 4+1 bridge saw is 350mm, and the spindle speed is 24000rpm/min. It can achieve a maximum cutting thickness of 80mm, and the spindle and saw blade can work alternately without affecting each other. 3.It uses an industrial camera, you can select the pattern you want from the system preset patterns, set parameters such as side length and angle, and plan the path. The camera takes pictures, which greatly saves drawing time. 4.This machine is equipped with a suction cup to realize the material moving function and avoid accidental cutting of surrounding materials.
