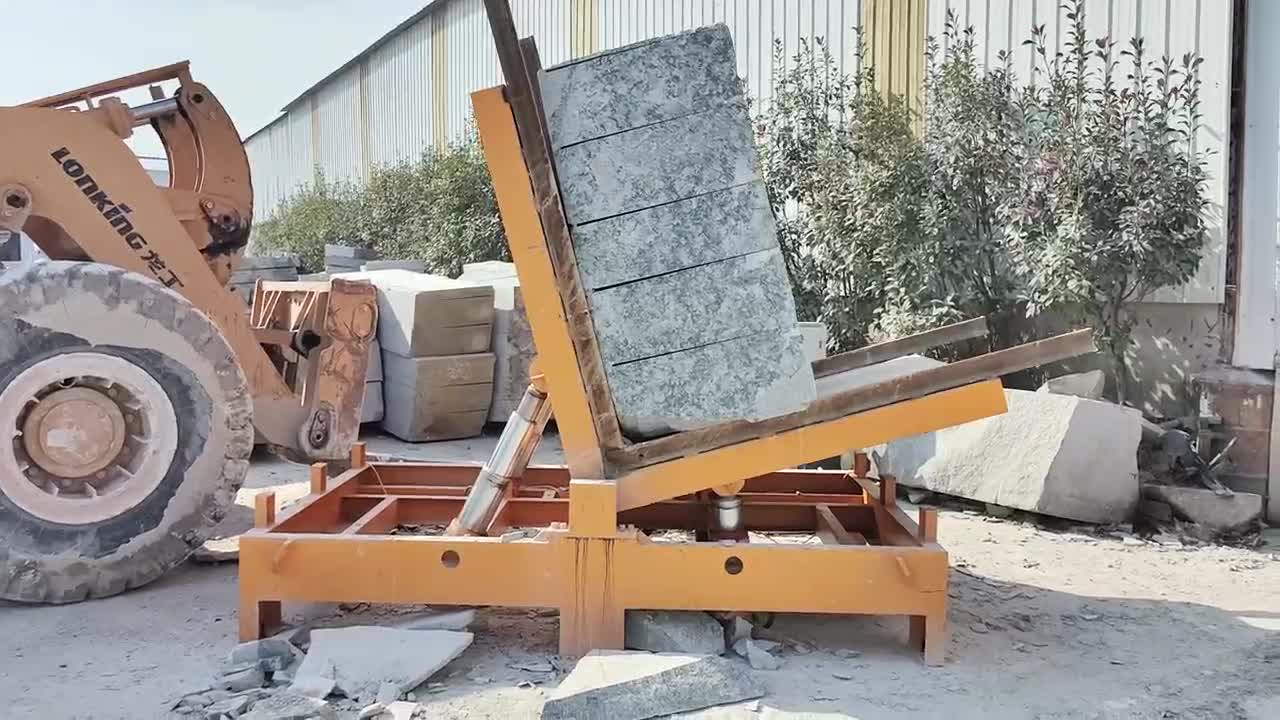

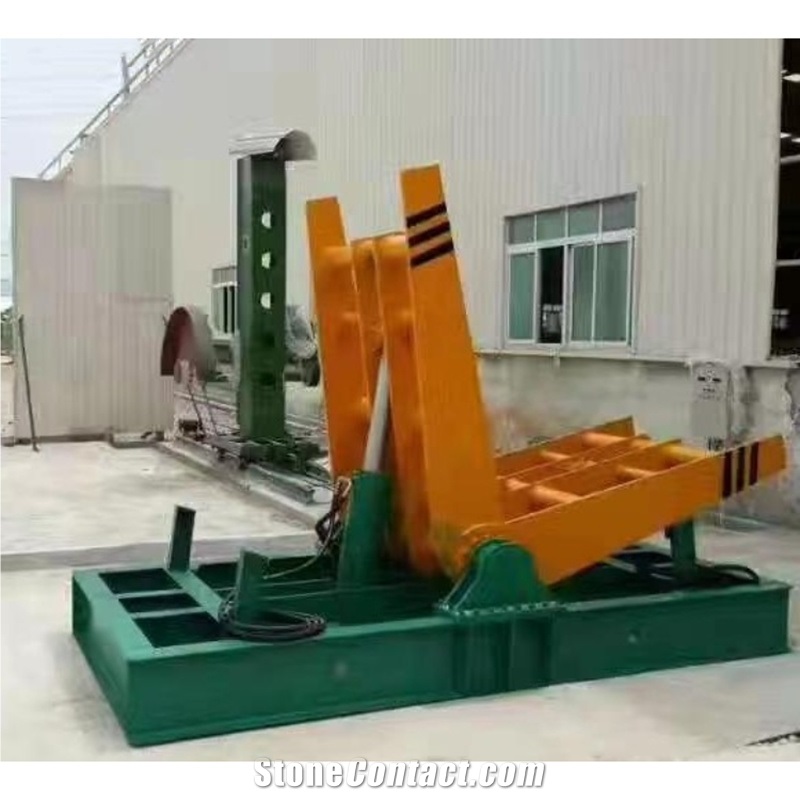

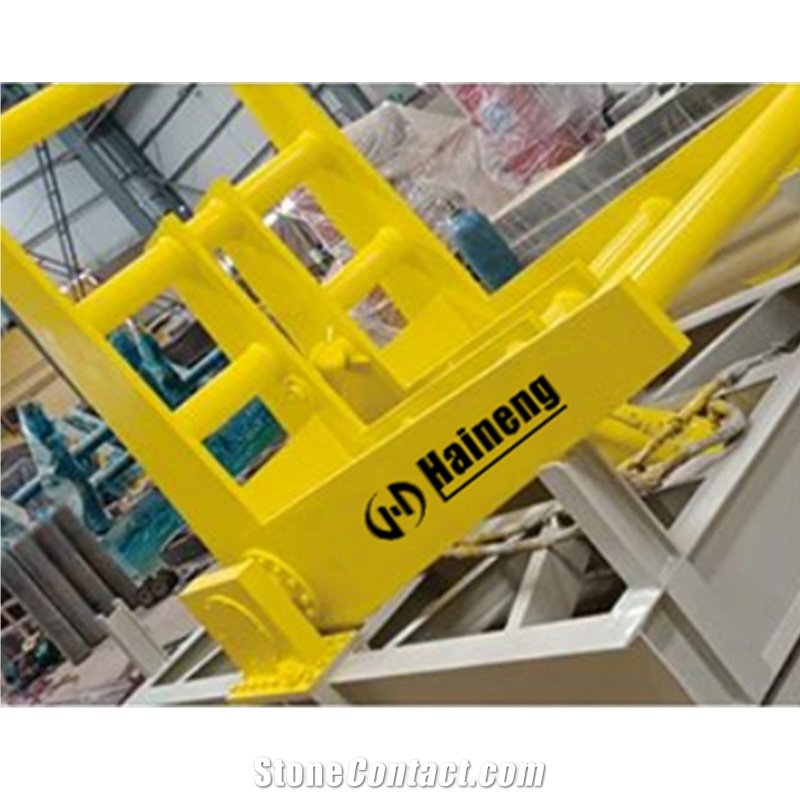

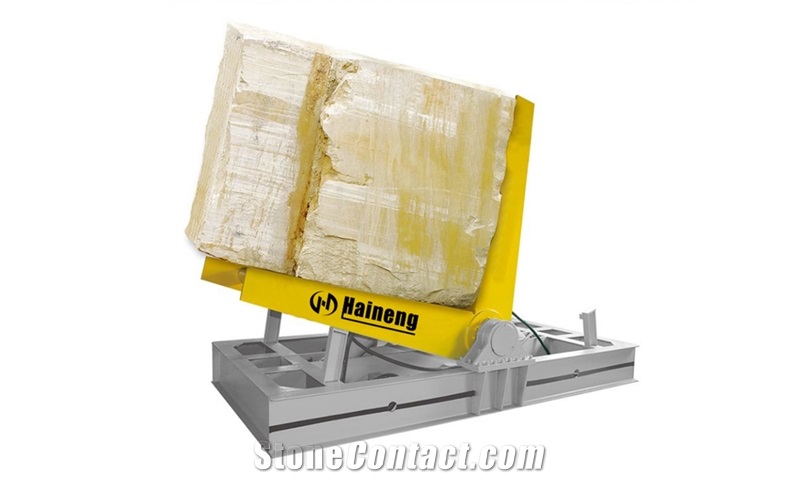

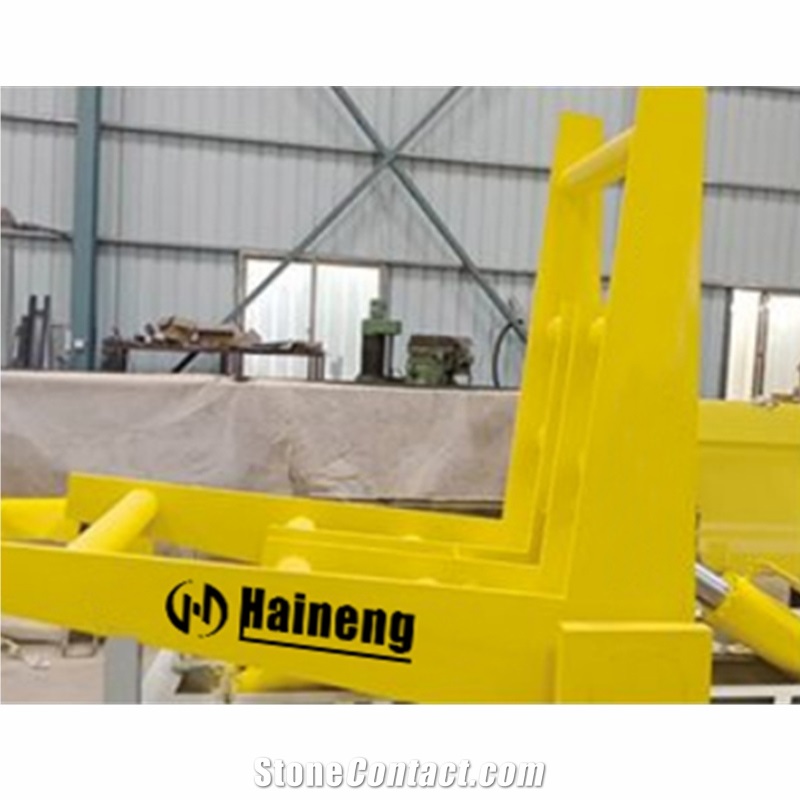

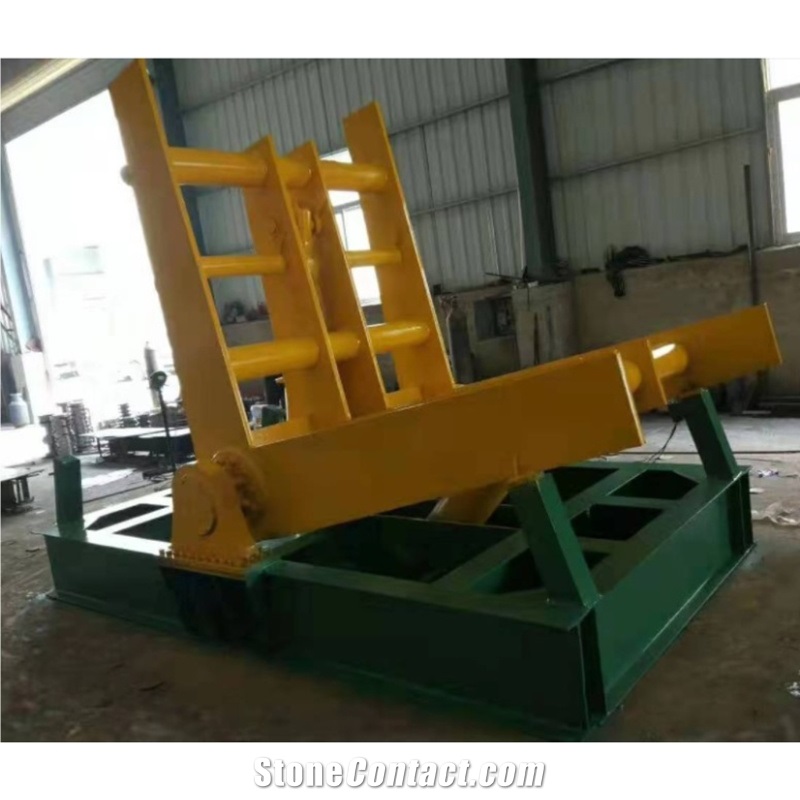

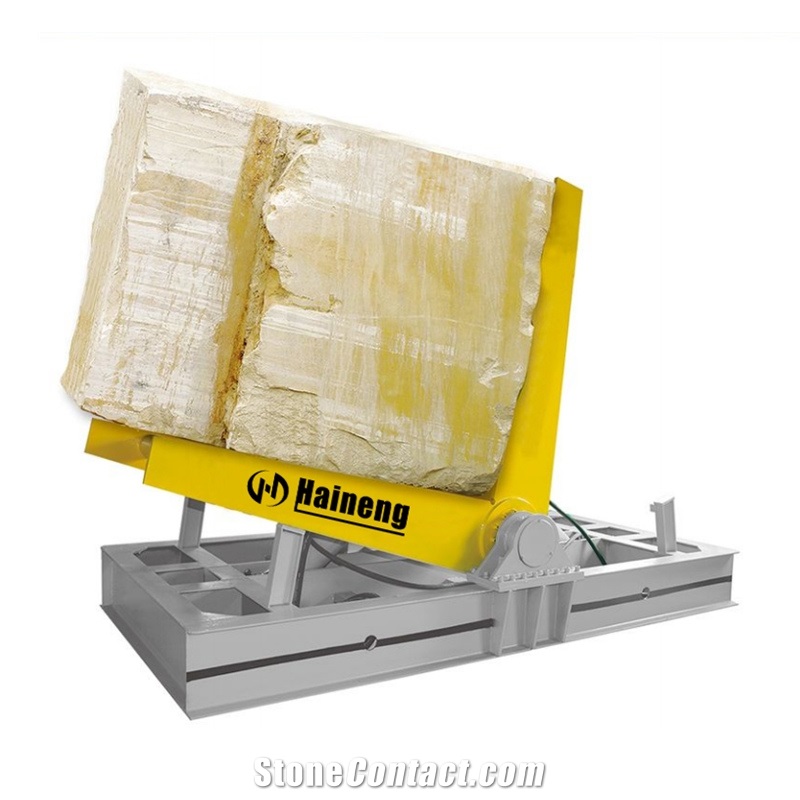

Turnover Stone Block Tilting Machine

FOB Price:$10500-11500

Type: Stone Factory MachinesStone Handling, Loading MachinesBlock Turnover-Tilting Machine
Usage: Granite, Marble, Limestone, Slate, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time: 25 Days
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Regular guidance & maintenance, Remote troubleshooting

Supplier

Quanzhou Xinhaineng Machinery Co,. Ltd.

Quanzhou Xinhaineng Machinery Co,. Ltd.
New Haineng

ChinaChina level4YR idicon

Eatablished :Apr 13,2017

Main Product:

Stone Machinery, Stone Cutting Machine, Stone Polishing Machine, Stone Profiling Machine, CNC Bridge Saw, Stone Engraving Machine|

Contact supplier

Start Order

You may also like
Granite Quarry Block Chain Type Stone Turnover Machine
Granite Quarry Block Chain Type Stone Turnover Machine
Stone Block Turnover Machine
Stone Block Turnover Machine
Block Holder,Stone Turnover Machine
Block Holder,Stone Turnover Machine
10/35/45/60T Automatic Stone Block Turnover Machine
10/35/45/60T Automatic Stone Block Turnover Machine
Chain Type Turnover Stone Block Machine
Chain Type Turnover Stone Block Machine
  • Overview
  • Components
Machinery Function Features

Overturn steady , high efficiency, 3 minutes when turning at 90 degrees

The primary of the machine is to have large blocks overturn angle, instead of manually using the lever to reduce the labor of workers and improve labor productivity.

Technical Data
Parameters
Unit
FSJ-45
Max loading length of the block
mm
2000
Max loading width of the block
mm
1600
Max. Loading capacity
T
45
Approx. Weight
Kg
5100
Machine overall length
mm
2900
Turning degree
°
0-90
Main motor power
kw
7.5
Machine overall width
mm
1800
Max loading height of the block
mm
3500
Machine overall height
mm
2300
