Single Arm Multi Blade Cutting Machine, Block Cutting Machine
FOB Price:$25000-40000

Product Description

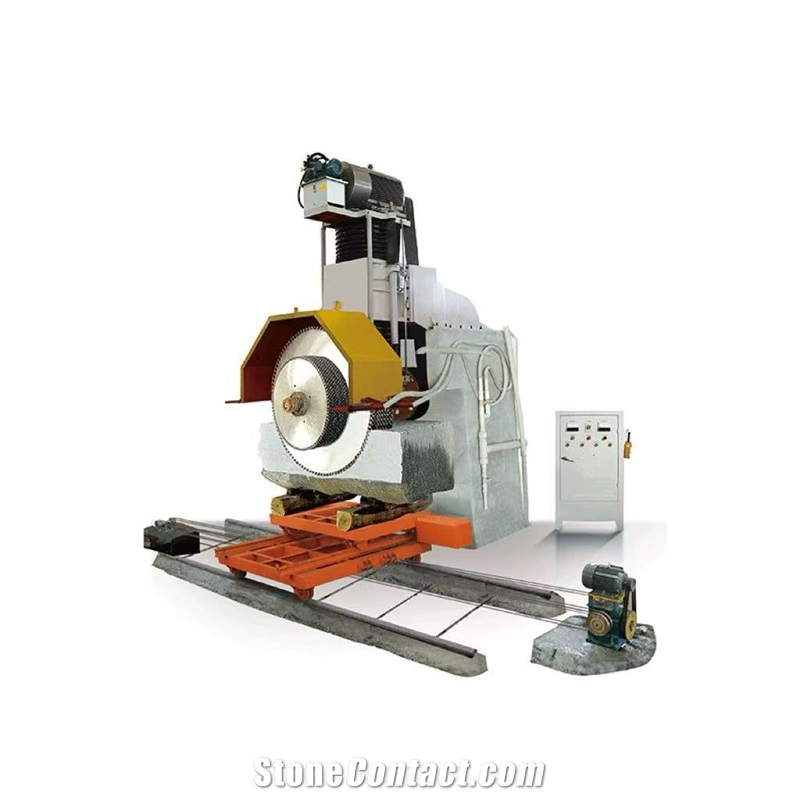

Single Arm Multi-blade Stone Cutting Machine
Multi-blade Stone Cutting Machine adopting large-area contacting rail and hydraulic cylinder up & down movement, this machine improves the lifting speed largely. Overall protection of the machine also has greatly enhanced the stability and prolonged the life-span.Thereforethe maintenance cost greatlyreduced and efficiency improved.
1. Single Arm Multi-blade Stone Cutting Machine is a semi- automaitc stone cutting machine. it's simple&efficient.
2. The stone cutting mahcine can install 4/8/12/22/28 pcs. Most domestic slab company will chooce this kind of the multi-blade granite block cutting machine because of the high capacity and good quality.
3. The patend lubrication system of the machine can vastly reduce maintenace frequency and maintenace costs which means a perfectly block cutter compared with traditional same kind of machine.
Parameters |
Unit |
DQC-4 |
DQC-8 |
DQC-12 |
DQC-22 |
DQC-28 |
Size of cutting |
mm |
3500x1100x1050 |
3500x1200x950 |
3500x1350x850 |
3500x1500x850 |
3500x1700x850 |
Main Motor Power |
kw |
30-70 |
45 |
55/75/90 |
110/132 |
160/200 |
Guide Pillar Diameter |
mm |
Φ500 |
Φ600 |
Φ700 |
800 |
900 |
Workbench Travel |
mm |
4400 |
4400 |
4400 |
4400 |
4400 |
Max. diameter of blade |
mm |
2400 |
2200 |
2000-2050 |
1650 |
1750 |
Vertical Travel |
mm |
1150 |
1050 |
950 |
950 |
950 |
Spindle Diameter |
mm |
Φ100 |
Φ100 |
Φ100/120 |
Φ120 |
Φ150 |
Total Weight |
Kg |
5900 |
6700 |
7800-8500 |
10000-10500 |
15500-16000 |
Number of blade |
pc |
4-Φ1600 |
8-Φ1600 |
12-Φ1600/1650 |
22-Φ1650 |
28-Φ1750 |
