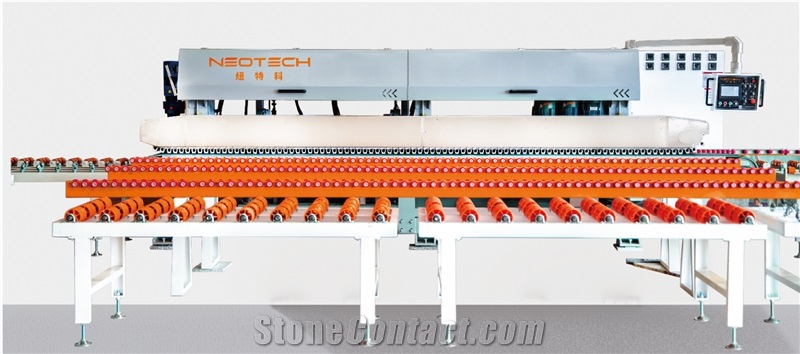

CHEERSURE OMEGA Horizontal Edge Polishing Machine

FOB Price:$35000-55000

Type: Stone Factory MachinesStone Finishing, Profiling MachinesEdge Profiling, Polishing Machine
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time: 60 DAYS
Warranty:12 Months
Install and Guarantee:Customer pay for installation
Maintenance:Remote troubleshooting

Supplier

SHANGHAI CHEERSURE INTERNATIONAL TRADING COMPANY

SHANGHAI CHEERSURE INTERNATIONAL TRADING COMPANY
NEOTECH

ChinaChina idicon

Eatablished :Aug 20,2008

Main Product:

CNC 5 AXIS BRIDGE SAW, EDGE POLISHING LINE, CNC ROUNTER, SMART AUTOMATIC LINE, CNC 5 AXIS WATER JET, 4 AXIS MONO WIRE|

Contact supplier

Start Order

You may also like
14 HEADS EDGE GRINDING MACHINE
14 HEADS EDGE GRINDING MACHINE
Automatic Stone Edge Profiling, Polishing Machine- SEG Series
Automatic Stone Edge Profiling, Polishing Machine- SEG Series
LUCE edge polishing machine
LUCE edge polishing machine
Evolution Edge Profiling, Edge Polishing Machine
Evolution Edge Profiling, Edge Polishing Machine
Stone Edge Polishing Grinding Machine For Sale
Stone Edge Polishing Grinding Machine For Sale
  • Overview
  • Components
Machinery Function Features

Conveying Structure: 400mm extra wide belt + high elasticity silicone pressure beam

Thickness Adjustment: Automatic adjustment

Direction Of Operation: Facing operator panel, the product comes from right to left

Main Drive: Adopt 3kw frequency conversion speed control motor reducer

Machine Frame: Adoption of steel structure welding and annealing treatment process

Technical Data
Parameters
Unit
3682
Max. processing thickness
mm
80
Qty of straight head
pcs
8
Min. processing width
mm
80
Dia of profile head
mm
150
Machine overall height
m
2
Total power
kw
34
Process speed
m/min
0.8-2.5
Machine overall length
m
6
Conveying belt
sets
2
Qty of bevel head
pcs
8
Approx. Weight
T
6.5
Dia of bevel head
mm
100
Qty of profile head
pcs
3
Machine overall width
m
2
Dia of straight head
mm
125
Processed Stone Photos
  • Quarter Bevel Bottom

    Quarter Bevel Bottom

  • Quarter Bevel Top

    Quarter Bevel Top

  • Straight Edge

    Straight Edge

  • Ogee

    Ogee

  • Deep Ogee

    Deep Ogee

  • Bevel

    Bevel

  • Demi-Bullnose Bottom

    Demi-Bullnose Bottom

  • Demi-Bullnose Top

    Demi-Bullnose Top

  • Half Bull Nose

    Half Bull Nose

  • Full Bullnose

    Full Bullnose

Components

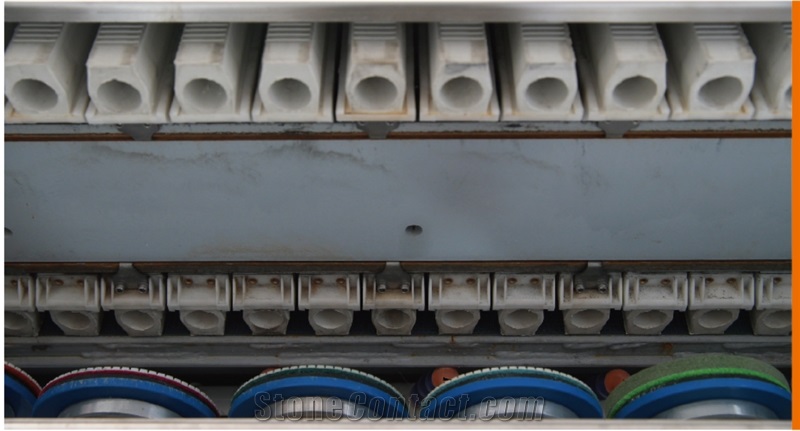

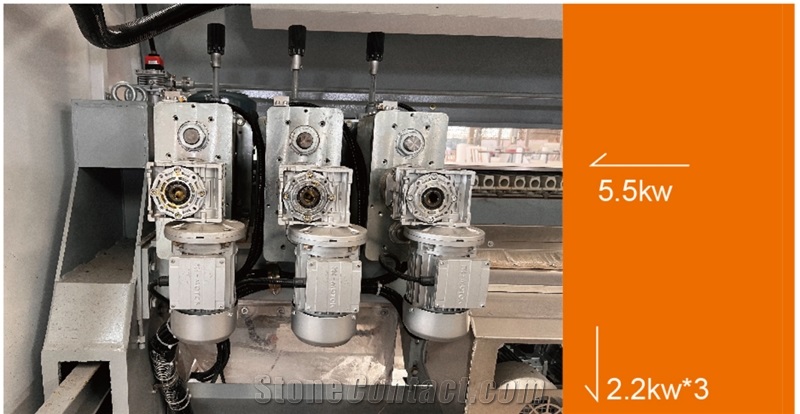

  • Profiled Head

    Profiled Head

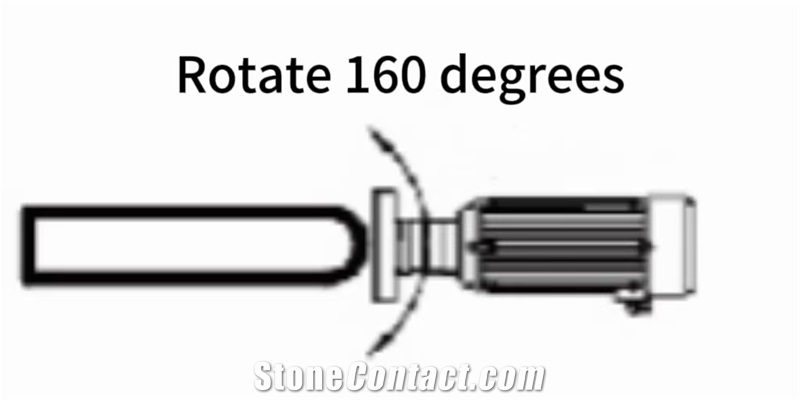

  • Straight Head

    Straight Head

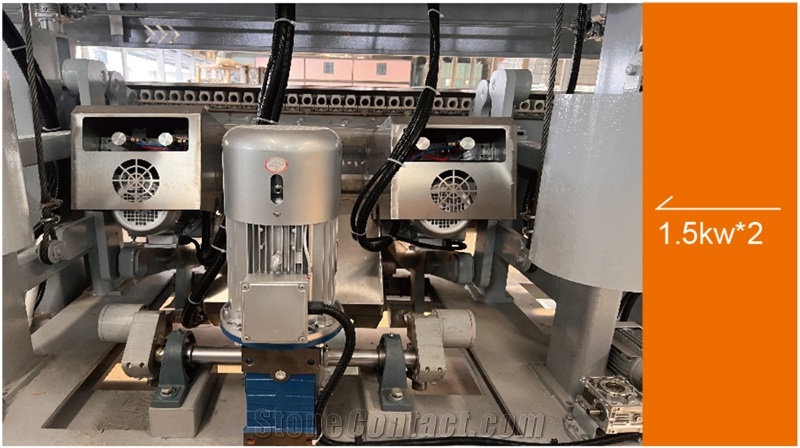

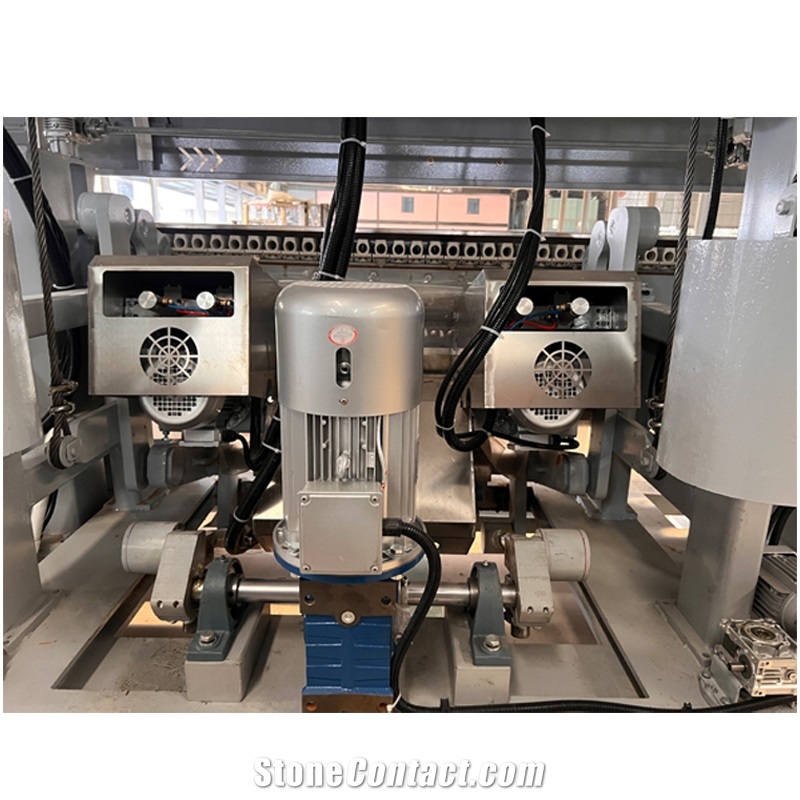

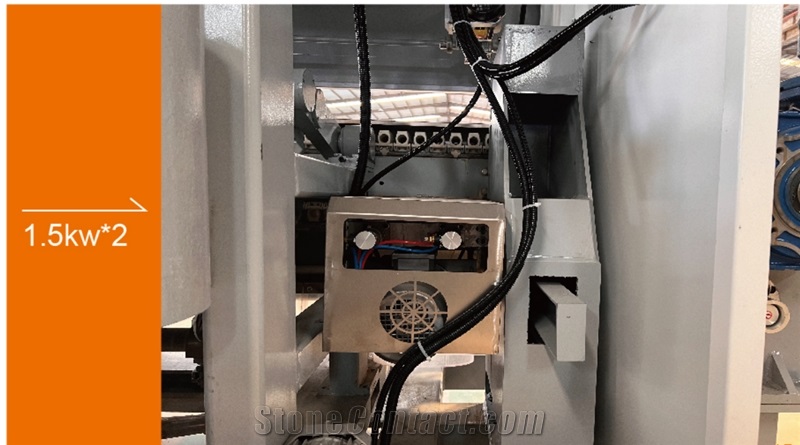

  • Head Motor

    Head Motor

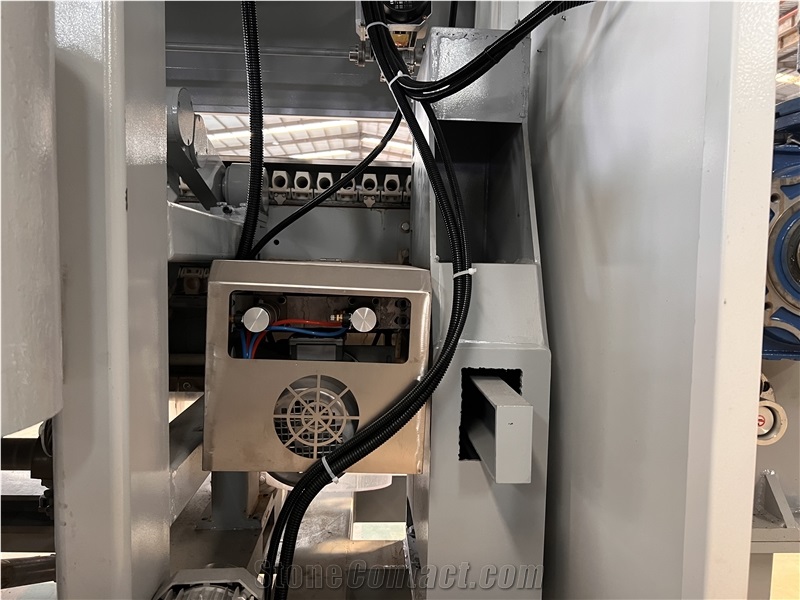

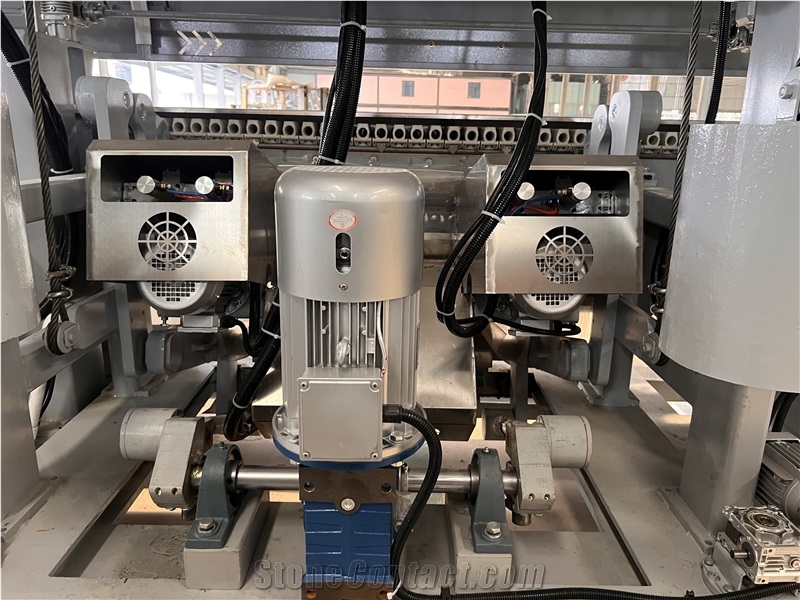

  • Head Motor

    Head Motor
