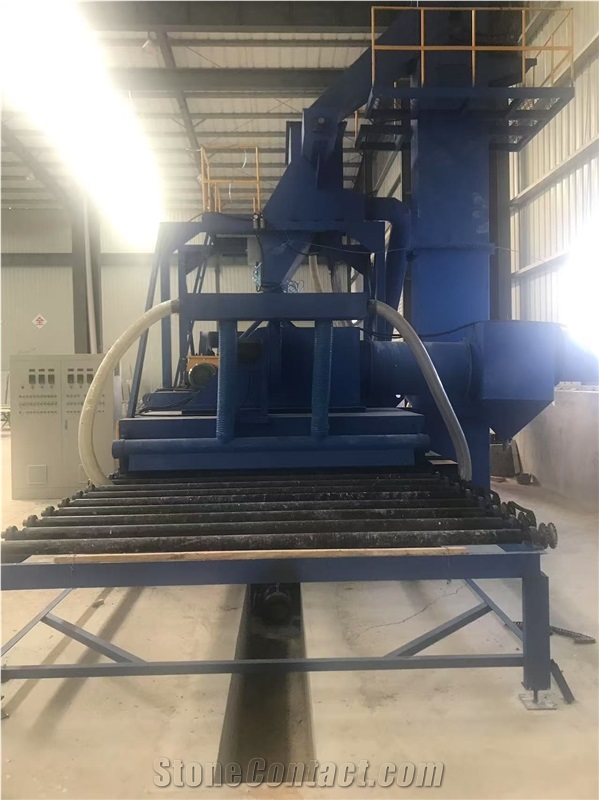

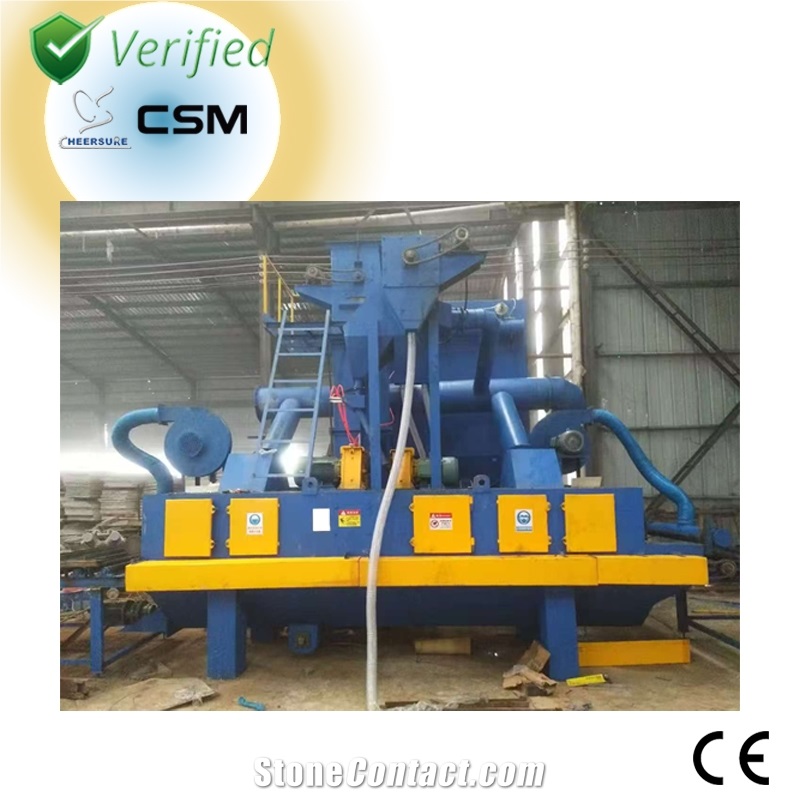

CHEERSURE 5 Axis Sand Blasting Machine

FOB Price:$75000-90000

Type: Stone Factory MachinesStone Surface Processing Machines Stone Sandblasting Machine
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time: 60 DAYS
Warranty:12 Months
Install and Guarantee:Customer pay for installation
Maintenance:Remote troubleshooting

Supplier

Eatablished :Aug 20,2008

Main Product:

CNC 5 AXIS BRIDGE SAW, EDGE POLISHING LINE, CNC ROUNTER, SMART AUTOMATIC LINE, CNC 5 AXIS WATER JET, 4 AXIS MONO WIRE|

Contact supplier

Start Order

  • Overview
  • Components
Machinery Function Features

This CNC machining center is equipped with a 3-axis interpolation (XYZ) system and is designed for processing marble, granite and other natural stones. The equipment is controlled by a high-end CNC system and is equipped with an automatic tool change spindle structure and a double-sided in-line tool magazine. Combined with high-precision linear guides, ball screw transmission and oil-immersed track structure, it has significant advantages such as high intelligence, high precision and strong stability. It has a wide range of processing. It can not only accurately process a variety of materials, including marble, granite, ceramics, glass, micro stone and steel, but also carve out a variety of washbasins and countertops with beautiful curves and luxurious shapes. In addition, it is also able to complete a variety of intricate relief works and exquisitely crafted 2D and 3D artistic figures.

Technical Data
Parameters
Unit
2200-5
Filter air speed of dust collector
m/min
0.5-0.8
Shot blasting machine projectile speed
m/s
75
Hoisting speed of the hoist
m/s
1.23
Shot blasting machine blade rotation diameter
mm
380
Machine overall length
mm
8200
Conveying capacity of transverse screw conveyor
t/h
60
Separation effect of separator (flow curtain type)
>
99%
Chamber roller conveyor
mm
73
Cleaning room space dimensions (LxWxD)
mm
2200x200x3000
Conveying capacity of longitudinal screw conveyor
t/h
60
Min. processing thickness
mm
10
Separation capacity of separator (flow curtain type)
t/s
60
Shot blasting machine power
kw
15
Gas source
m3/min
2
First added pellet amount
kg
2000
Door opening feed port (LxWxD)
mm
2200x200x2200
Separation zone wind speed of separator (flow curtain type)
m/s
4-5
Roller spacing
mm
235
Horizontal screw conveyor power
kw
5.5
Shot blasting amount
kg/min
200
Shot blasting machine impeller speed
rpm/min
2880
Hoist power
kw
11
Longitudinal screw conveyor power
kw
7.5
Length of loading and unloading rack
mm
3500+4500
Shot blasting machine impeller diameter
mm
250
Loading and unloading rack power
kw
3
Separator screw conveying power
kw
5.5
Conveying capacity of separator screw conveyor
t/h
60
Machine overall width
mm
2000
Lifting capacity of the elevator
t/h
60
Max. processing width
mm
2000
Processed Stone Photos
  • Processed Stone Photos

  • Processed Stone Photos

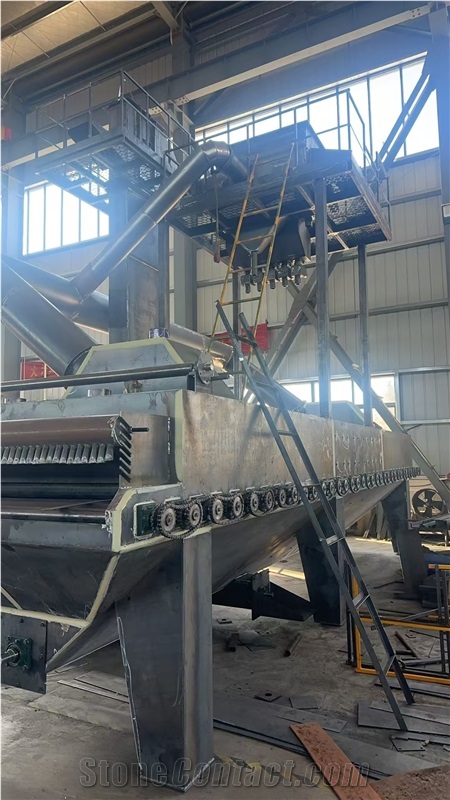

Components
Consumables
  • Components

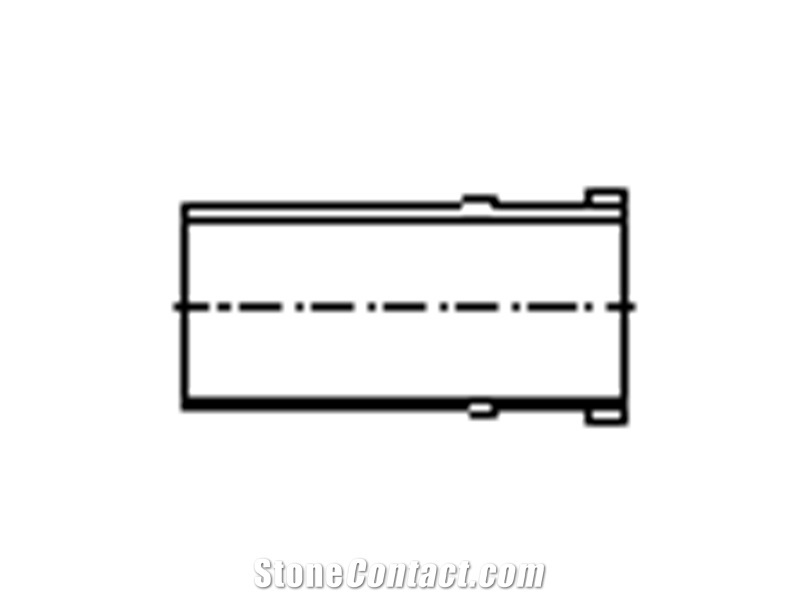

    blade

  • Components

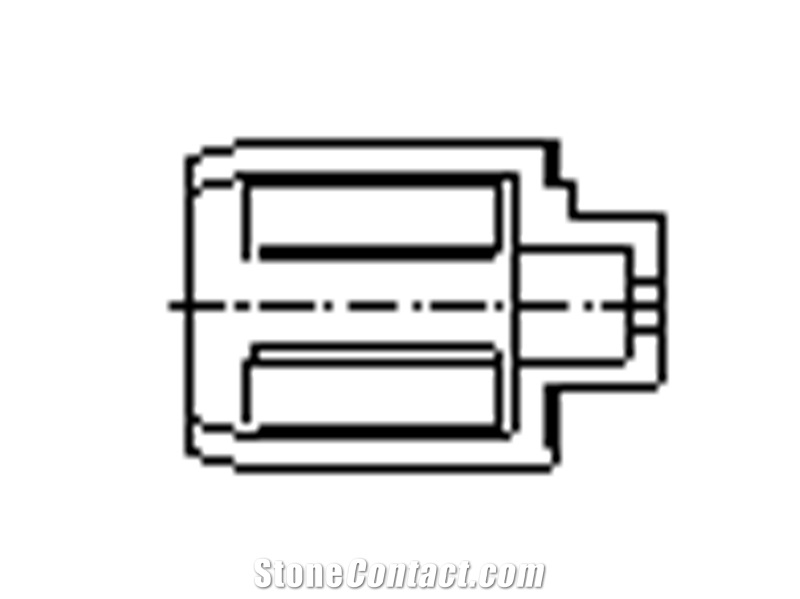

    Pellet wheel
