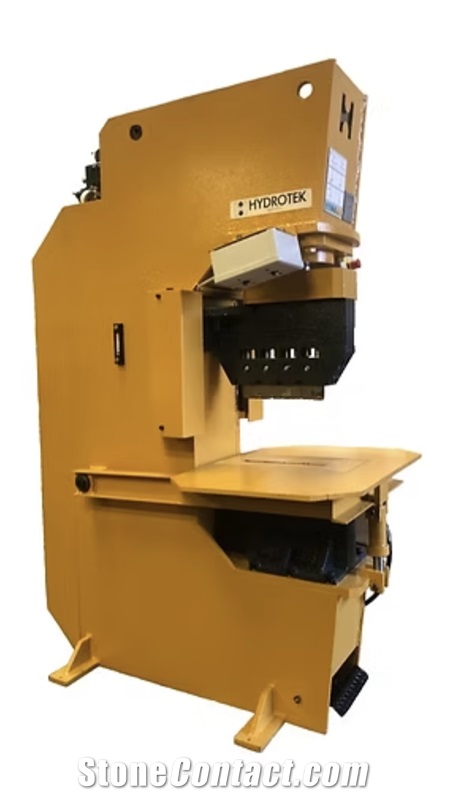

K320 Hydraulic Stone Splitting Machine

Name: K320 Hydraulic Stone Splitting Machine
Brand: Hydrotek srls
SKU: 8410
Price: 15000 USD
Availability: InStock

FOB Price:€15000-19000

Type: Stone Factory MachinesStone Tile Cutting MachinesHydraulic Stone Splitting Machine

Usage: Granite, Marble, Limestone, Slate, Onyx, Basalt, Quartzite, Sandstone, Travertine

After-Sale

Lead Time: 30/60 days

Warranty:12 Months

Install and Guarantee:Remote guidance installation

Maintenance:Regular guidance & maintenance

Supplier

Hydrotek srls

Hydrotek srls

Italy

Eatablished :Dec 27,2013

Main Product:

Trancia Pietra , Segatrici, Splitting Machine, Cutting Machine|

Contact supplier

Start Order

You may also like

STZ Series Multi Tooth Hydraulic Stone Splitter

Stone Splitting Machine For Mushroom Face Cutting

Movable Blades Artificial Stone Splitting Machine

Cobble Stone Splitting Machine

Nature Stone Spitting Machine For Granite Cobblestones Paving Stone

Product Detail
Company Profile

Overview
Components

Machinery Function Features

Questa macchina è adatta per la produzione di pietre a spacco di piccole e medie dimensioni, quali cubetti, mosaico, "smolleri", cordonate per aiuole, prodotti per rivestimento esterni, nei diversi materiali quali porfido, granito, gneiss, serizzo, beole, marmi, quarziti etc. La struttura è molto robusta, fatta con materiali di prima qualità per sopportare i lavori più gravosi e le alte pressioni a cui è soggetta. La macchina è compatta, con centralina e quadro elettrico incorporati secondo le attuali norme CE.

Technical Data

Parameters	Unit	K320
Machine width (W)	mm	1600
Approximate weight	Kg	2500
Max. Pressure	tons	50
Hydraulic oil grade		46
Max. working height	mm	250
Oil tank capacity	L	220
Frequency	Hz	50
Max. working width	mm	320
Machine length (L)	mm	1400
Main Motor Power	kw	4/4
Voltage	V	380
Machine height (H)	mm	2500
