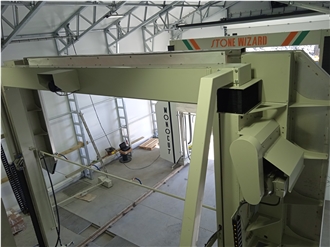

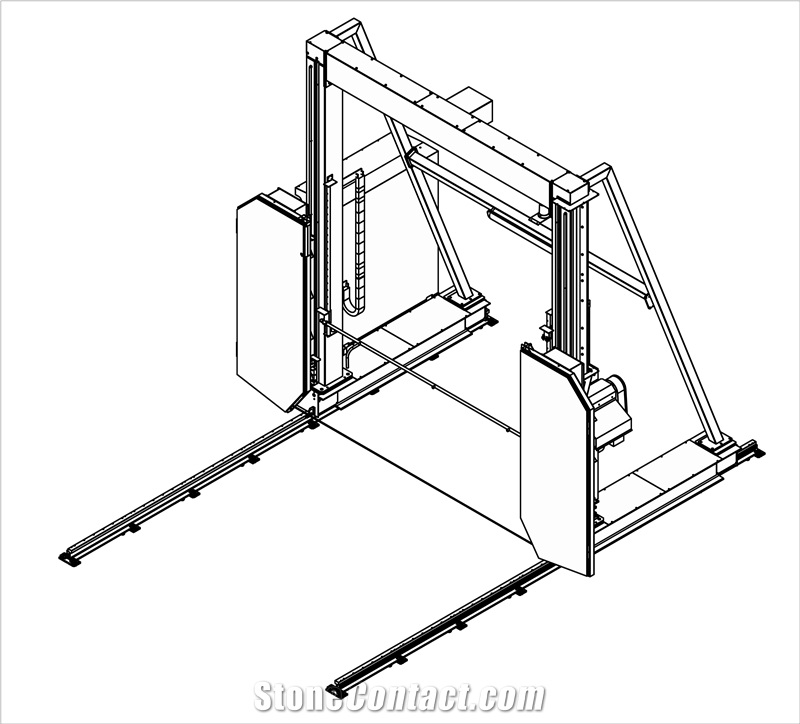

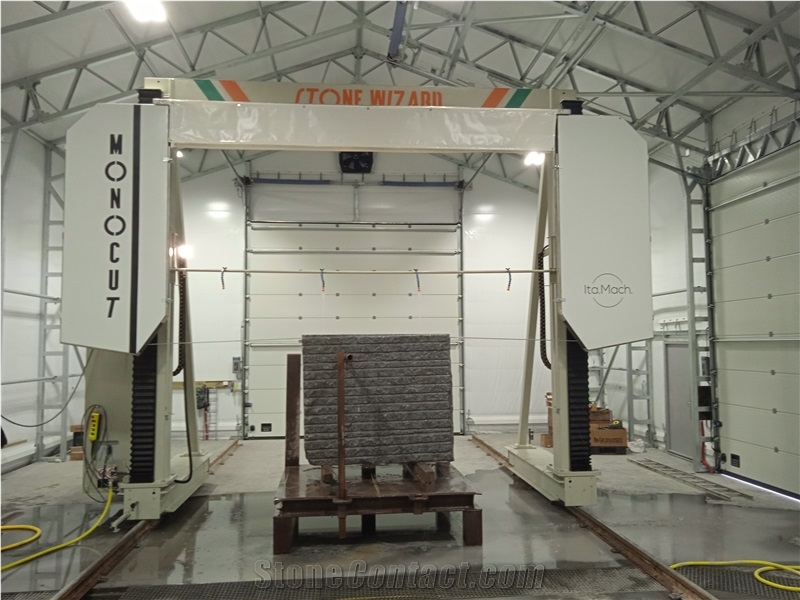

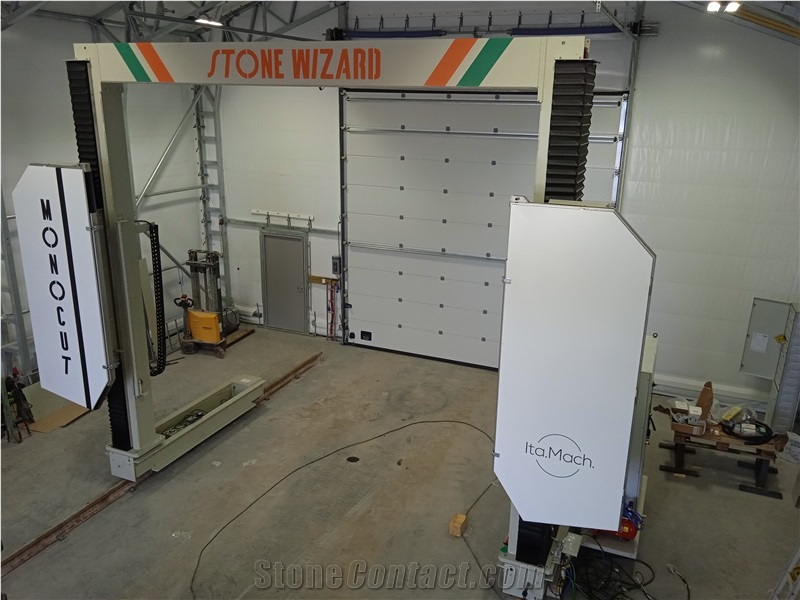

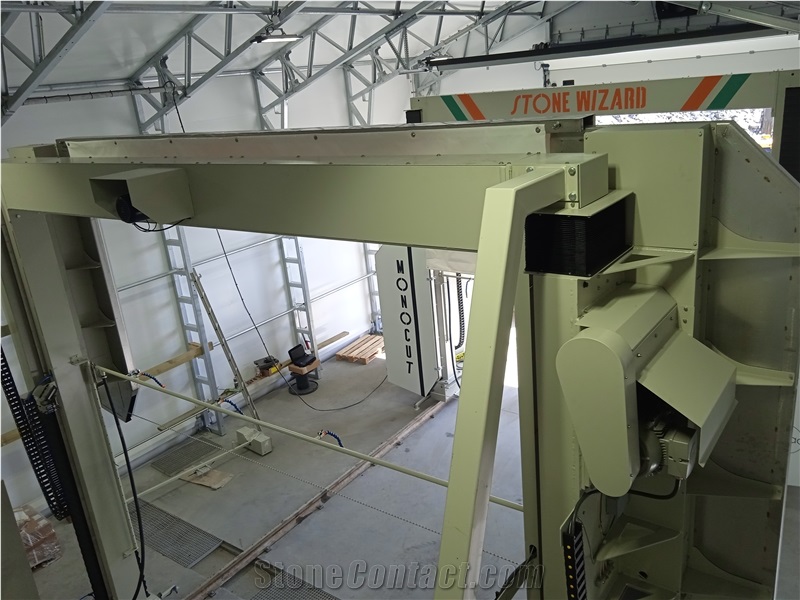

Stonewizard Monocut Single Wire Block Squaring Machine

The StoneWizard Monocut is a reliable and versatile diamond wire cutting machine, designed for block cutting and slab production. It combines robust construction, high precision, and low operating costs.

Main Features

• Single diamond wire for block squaring and slab cutting
• Automatic speed reduction at wire entry, exit, and overload
• Advanced PLC with encoder-controlled motors → ±1 mm precision
• Direct belt transmission → high efficiency and reduced maintenance
• Full dust protection with column cover
• Photo-sensor safety fences (standard)
• Water cooling system with water presence sensor
• Available configurations: stationary with rotating table trolley, stationary with linear trolley, gantry
• Available options: CNC shaping, horizontal cutting, multiblock setups

Technical Specifications

• Dimensions (L × W × H): 2900 × 6000 × 5520 mm
• Weight: 7200 kg

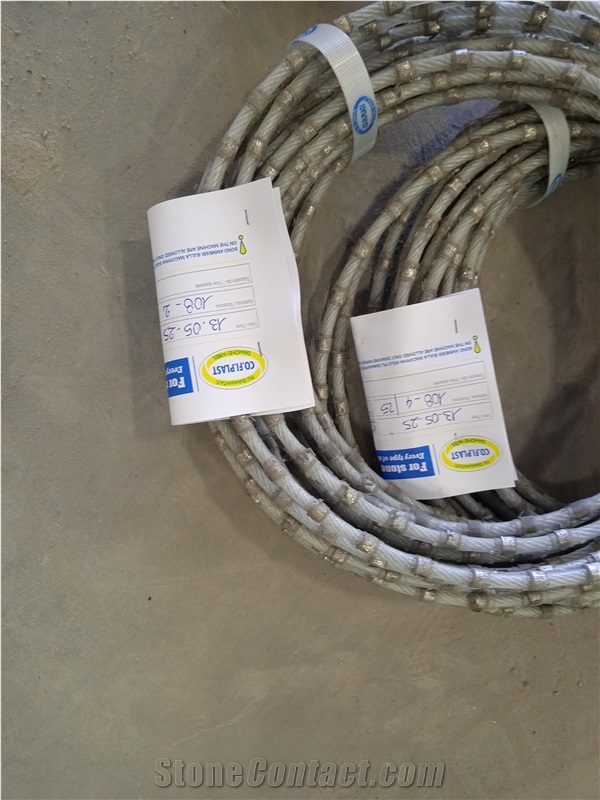

• Wire diameter: 6–11 mm
• Max cutting height: 2200 mm
• Max cutting length: 3500 mm
• Max cutting width: free
• Wire speed: 24–35 m/s
• Main motor: 15–18 kW
• Other motors: trolley 0.75 kW; rotation 0.75 kW; shaping 0.5 kW; Z axis 1.5 kW
• Total installed power: 19 kW
• Precision tolerance: ±1 mm
• Cooling system: water with water presence sensor
• Air compressor: 25 L/min @ 9 bar max
• Dust protection: full column cover (standard)

Options and Configurations

• CNC shaping unit (optional)
• Horizontal cutting unit (optional)
• Multiblock setups (optional)
• Rotating table trolley/s (optional)
• Gantry version (optional)
• Photo-sensor safety fences (standard)
• Dust protection full column (standard)
