Machinery Function Features

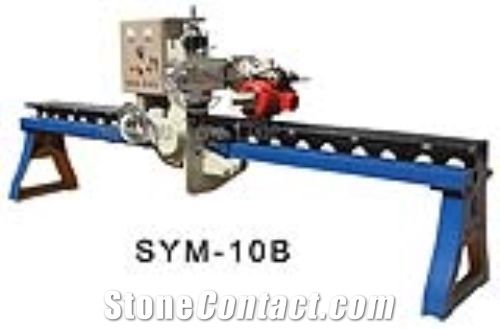

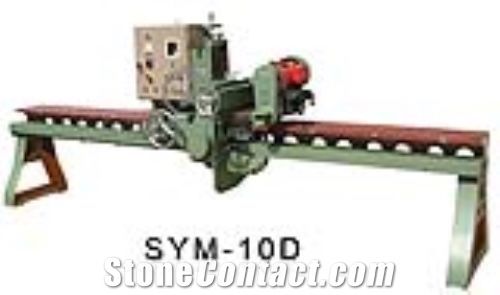

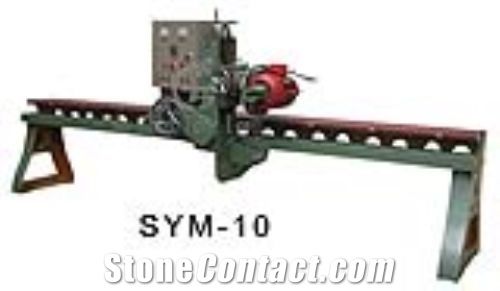

SYM-10 series of stone profile machines are mainly used for grinding and polishing straight edge or curve edge and profiling internal or external curves. This machine has the following characteristics:
I . There are three kinds of length of steel body.
II．Each machine is equipped with two motors (main motor & travelling motor)
III . There are two types of speed (double speed or stepless speed)
IV．With sealed oil-immersed guide, the machine can work with long life.
V．Double-T type table makes it easy to install slabs.
VI．The machine can work with high efficiency and precision
Technical Data
Parameters |
Unit |
SYM-10 |
SYM-10B |
SYM-10D |
Machine overall height |
mm |
1510 |
1510 |
1510 |
Max. processing thickness |
mm |
150 |
150 |
150 |
Machine overall length |
mm |
2840 |
3300 |
3760 |
Rotation speed of profile wheels |
rpm/min |
1440/2880 |
1440/2880 |
1900/3800 |
Effective processing length |
mm |
≤2250 |
≤2650 |
≤3050 |
Main motor power |
kW |
4/3.3KW(Double Speed) |
5.5/4.5KW(Double Speed) |
4/3.3KW(Double Speed) |
Machine overall width |
mm |
1550 |
1550 |
1550 |
Rotation angel of motor heads |
° |
0-90° |
Random |
Random |
