NC Wire saw machine SHXJ-1500
FOB Price:$24600-25000
Type:
Stone Factory MachinesStone Block Cutting MachinesCNC Diamond Wire Shaping Machine
Usage:
Granite, Marble
After-Sale
Lead Time:
25days
Warranty:12 Months
Install and Guarantee:Customer pay for installation
Maintenance:Online software upgrade
Supplier
Eatablished :Dec 24,2010
Main Product:
Bridge Cutting Machine , Profiling Stone Line Machine , Wire Saw Machine , Edge Cutting Machine|
Machinery Function Features

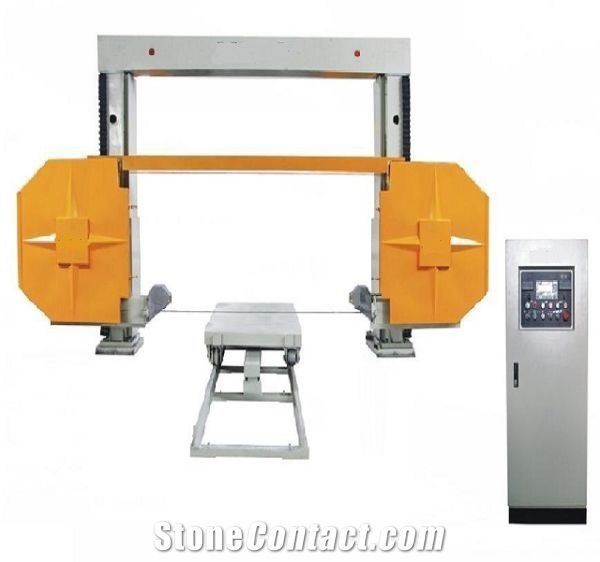

SHXJ1500 Numerical control wire saw (separate)
Function：The machine is mainly used for processing the profile of marble and granite. Such as：processing the arc slabs of different specifications, solid columns, hollow columns, large stone lines and English letter, etc.
Technical Data
Parameters |
Unit |
SHXJ-1500 |
Approximative Weight |
kg |
7000 |
Block max. weight |
kg |
100000 |
Diameter of new diamond wire |
mm |
8-11 |
Block length |
mm |
3000 |
Total installed power |
kW |
21.79 |
Block max. widht |
mm |
2000 |
Block max. height |
mm |
1500 |
Block-holding trolley dimensions |
mm |
2000 |
Overall dimensions (without perimeter fencing) lenght |
mm |
8200 |
Diamond wire length |
mm |
17300 |
Wire peripheral speed |
mm/sec |
0-40 |
Overall height |
mm |
3800 |
Overall widht |
mm |
5600 |

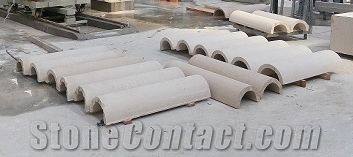

Processed Stone Photos

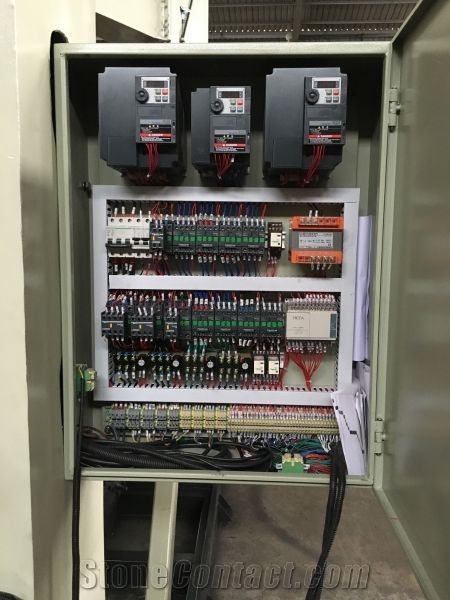

Components
-
Schneider
Consumables
