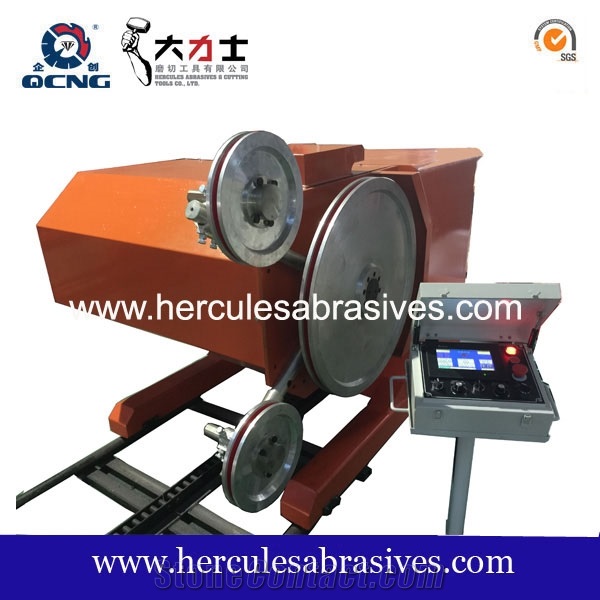

QCSJ-45 diamond wire saw machine for quarry
FOB Price:$10000-25000
Type:
Stone Quarry MachinesQuarry Wire Saw Machine
Usage:
Granite, Marble, Limestone, Onyx, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time:
3weeks
Warranty:12 Months
Install and Guarantee:Customer pay for installation
Maintenance:Online software upgrade, Remote troubleshooting
Trade Terms
Delivery Details: FOB,CFR,CIF,EXW
Payment :
Supplier
Eatablished :Aug 03,2009
Main Product:
Diamond Wire, Diamond Segment, Diamond Saw Blade, Polishing Abrasives, Wire Saw Machine, Block Cutting Machine, Drill Bit Drill Rod Dth Hammer|
Machinery Function Features
The machine is widely applicable for quarrying of granite, marble, sandstone and other stone.
Technical Data
Parameters |
Unit |
QCSJ-37 |
QCSJ-45 |
QCSJ-55 |
QCSJ-75 |
QCSJ-90 |
Cutting Efficiency |
m2/h |
10-20 |
10-20 |
10-20 |
10-20 |
10-20 |
Main Motor Power |
kw |
37KW(50HP) |
45KW(60HP) |
55KW(75HP) |
75KW(100HP) |
90KW(120HP) |
Cutting Distance |
mm |
1800 |
1800 |
2000 |
2200 |
2200 |
Wire Saw Speed |
m/s |
0-40 |
0-40 |
0-40 |
0-40 |
0-40 |
Max. Wire Length |
m |
20-80 |
20-100 |
20-120 |
20-150 |
20-180 |
Length of rails |
m |
2Mx4 |
2Mx4 |
2Mx4 |
2Mx4 |
2MX4 |
Feed Motors Power |
kw |
0.75 |
0.75 |
1.1 |
1.5 |
1.5 |
Main Flywheel Diameter |
mm |
800 |
800 |
800 |
800 |
800 |
Total Weight |
Kg |
2400 |
2600 |
3300 |
3800 |
4000 |
Motor Flywheel Unit Rotation |
° |
360 |
360 |
360 |
360 |
360 |
Guide Pulley Diameter |
mm |
380 |
380 |
380 |
380 |
380 |
Dimension LxWxH |
mm |
1850x1200x1300 |
1850x1200x1300 |
2000x1300x1350 |
2150x1400x1360 |
2200x1500x1380 |
Power Supply |
V/Hz |
380V/50Hz |
380V/50Hz |
380V/50Hz |
380V/50Hz |
380V/50Hz |
Processed Stone Photos
-

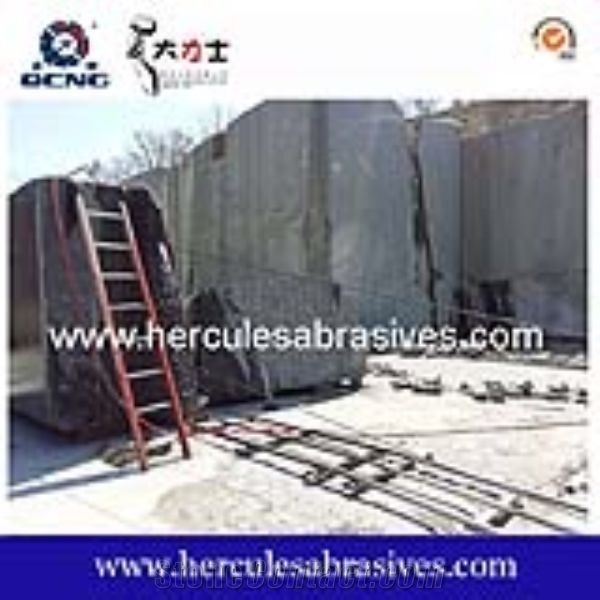

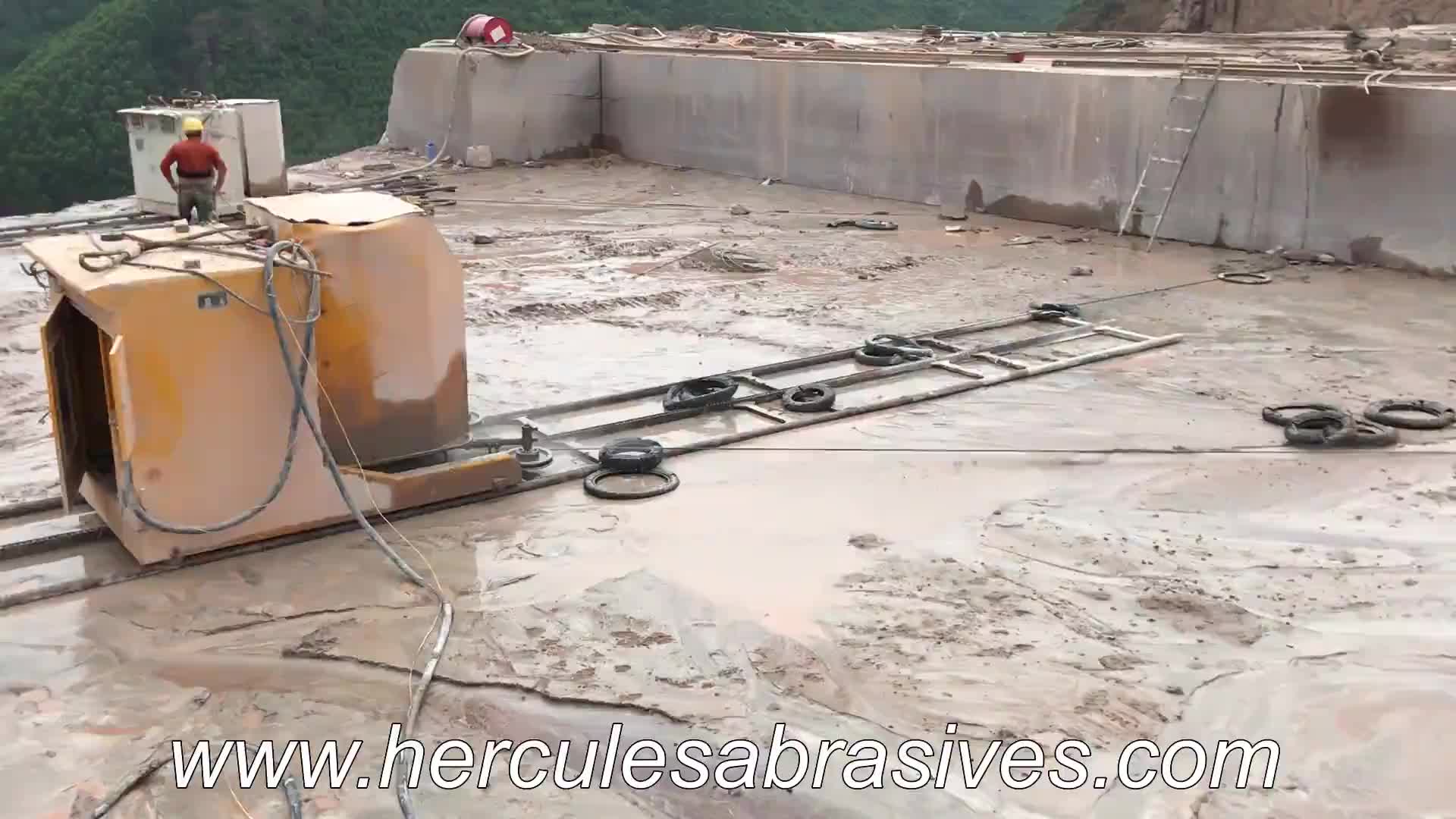

quarry
Components
-
operation panel
¥Payment Required -
control box
¥Payment Required -
rail
¥Payment Required
Consumables
-
diamond wire
11.5mmx40bpm
-
spring diamond wire
11.0mmx28bpm
-
guid pulley
380mm
-
rubber belt
42x8x3000mm
