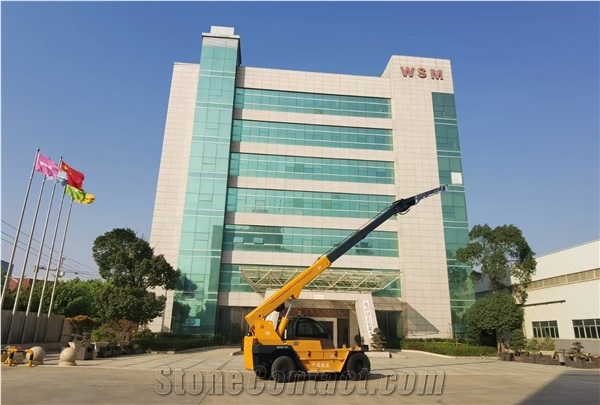

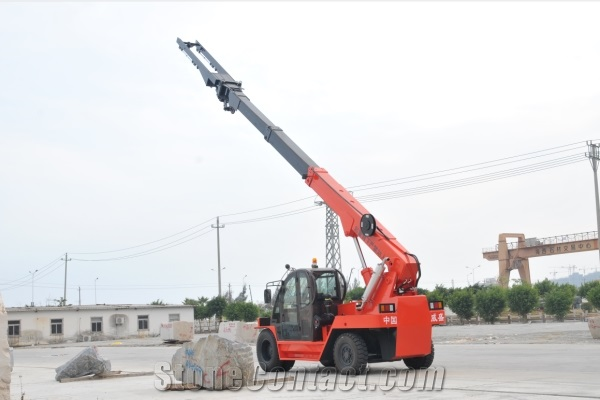

WSM1120 Telescopic Crane For Slab Loading And Unloading
FOB Price:$45000-50000
Type:
Stone Factory MachinesStone Handling, Loading MachinesJib Arm/U Type Container Loader
Usage:
Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time:
45 working days
Warranty:12 Months
Install and Guarantee:Remote guidance installation
Maintenance:Online software upgrade, Regular guidance & maintenance, Remote troubleshooting
Supplier
Eatablished :Dec 26,2000
Main Product:
Forklift, Wheel Loader, Forklift Truck, Crane, Double Blade Mining Machine, Marble Gang Saw|
Machinery Function Features
telescopic crane:
load or unload one container in 30 min.
save worker cost and protect the slab avoiding break
Technical Data
Parameters |
Unit |
WSM1120 |
Maximum lateral extension of accessory hook (horizontal) |
mm |
8000 |
Maximum grade ability(empty load) |
。 |
≦18 |
Lifting height of max exteral extension of accessory hook |
kg |
2300 |
Run speed(gear I/II) |
Km/h |
10/25 |
Load Capacity |
Tonnes |
13.8 |
Lifting height of max external extension of accessory hook |
mm |
9850(±100) |
Wheel base |
mm |
3050 |
Expansion speed(Full-scale back-up) |
sec |
18.3 |
Height |
mm |
7060(±100) |
Maximum extension of the main hook |
mm |
4710 |
Rate lifting moment |
t.m |
12×0.5 |
Expansion speed(Stretch out the whole course) |
sec |
14.3 |
Engine / Rated power |
model / kw/rpm |
QSB3.9-C125-30 / 93/2200 |
Work Example
Processed Stone Photos
-

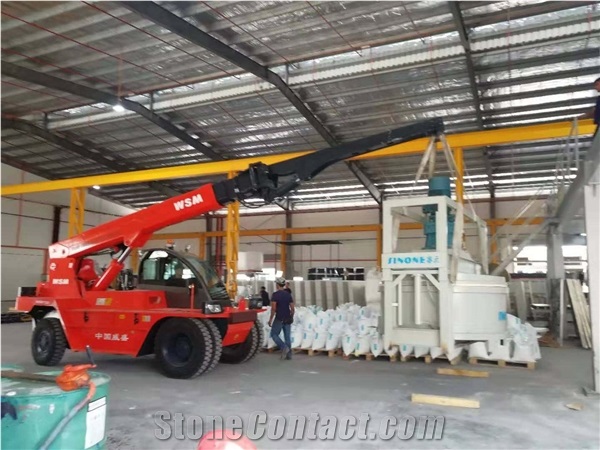

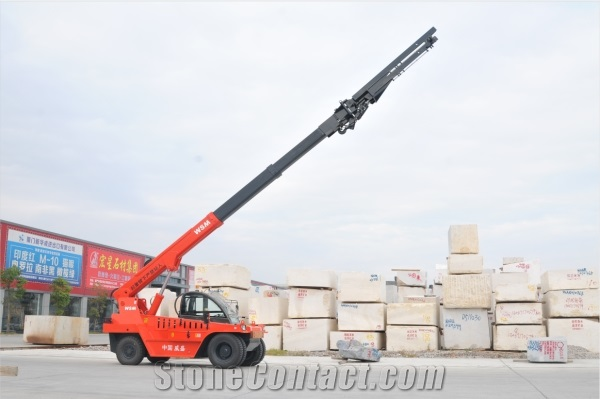

The equipment’s at the Rock Yard
-
-

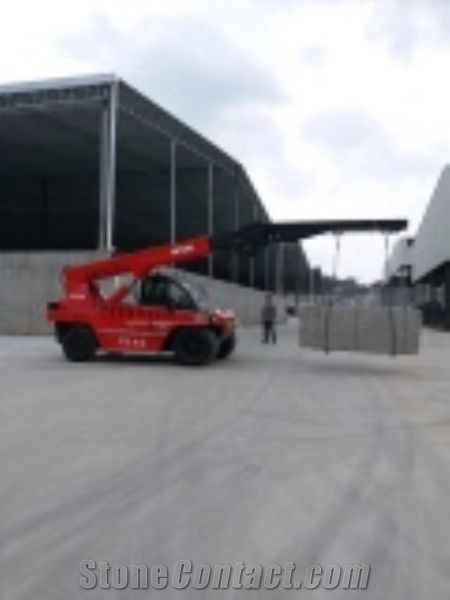

Hanging Plate
-

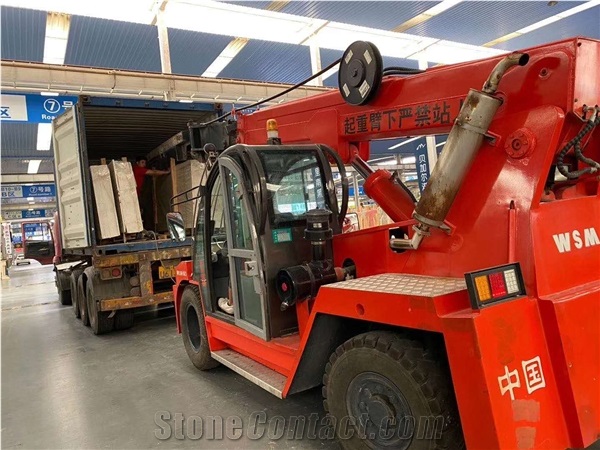

Load the plates into containers
Components
-

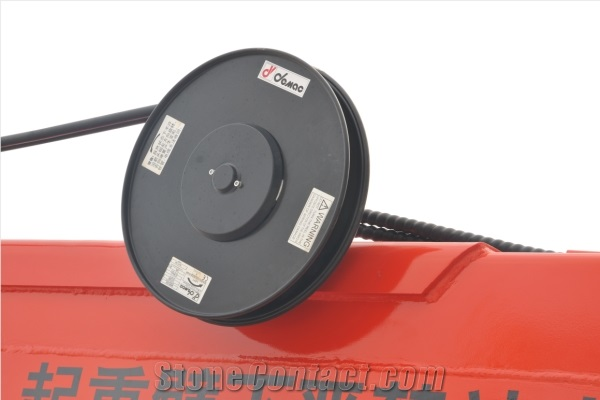

Hore reel
¥Payment Required -

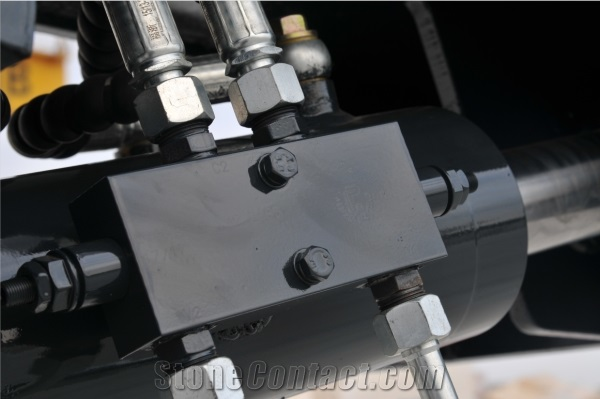

Multiple valve
¥Payment Required -

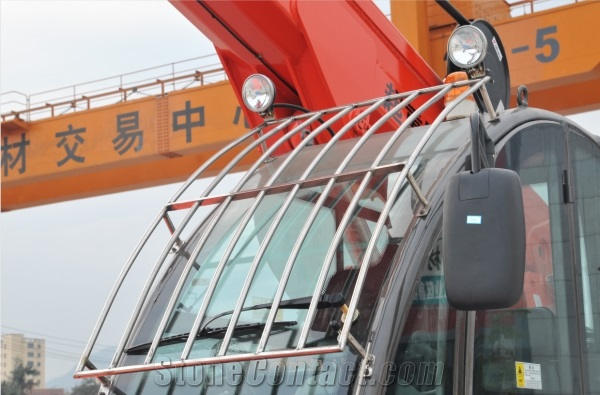

Light
¥Payment Required
Consumables
-
Filter
-
Pipe
-
Valve block
Video

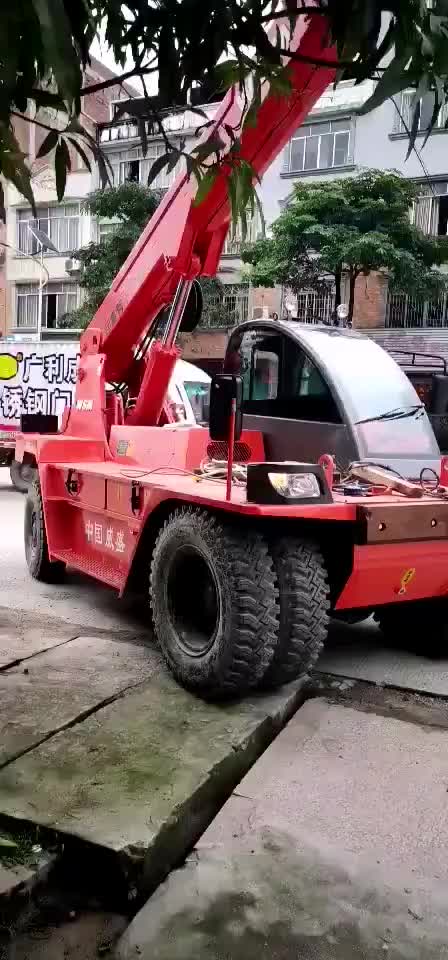

Install Video
