Sandstone Tile Cutting Machines
( 527 )After the large stone blocks are cut into 2 or 3 cm wide sheets, they need to be cut into various sizes according to your project. Sometimes these sizes are standard, sometimes they just need to be cut to the sizes your project requires. Cutting Natural Stone slabs to desired sizes is not easy to standard and requires high-tech machinery to do it accurately. It is easy to find stone tile cutting machines of all models and prices related to these works in the Stonecontact.com global stone portal. Stonecontact.com website has all kinds of brands and models of stone tile cutting, chamfering, polishing machines. Therefore, if you need a new stone tile cutting machine, it is inevitable that you will encounter many options. There are CNC machining centers, wire saws and many more type machines for cutting, shaping, edge profiling and grinding stone.
More Hide-
Add To CompareType: Stone Factory MachinesStone Tile Cutting MachinesStrip Cutting,Edge Trimming Machine
FOB Price:$-29999
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
Gantry Profile Cutting Machine
SHUINAN MACHINE
5YR
China
XIAMEN SHUINAN MACHINE CO.,LTD.
Contact Supplier
-
Add To CompareType: Stone Factory MachinesStone Tile Cutting MachinesSingle Disc Cutting Machine
FOB Price:
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:

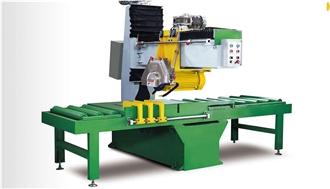

Single Blade Cross Cutter
SHUINAN MACHINE
5YR
China
XIAMEN SHUINAN MACHINE CO.,LTD.
Contact Supplier
-
Add To CompareType: Stone Factory MachinesStone Tile Cutting MachinesMulti-Blade Cross-Cutter,Trimming
FOB Price:$9000-20000
Warranty: 12 Months
Usage: Granite, Marble, Artificial Stone, Quartzite, Sandstone
Machinery Function Features:
Specifications
1. Wet type mosaic cutting machine is suitable for cutting big floor and wall tiles into narrow, square and diamond forms.
2. Wet type mosaic Cutting Machine also can cut tiles into many small ones with different width at one time.Wet type mosaic cutting machine cut wall & floor tile, high cutting efficiency
3. Wet Type Mosaic Cutting Machine is cutting big wall and floor tiles into small ones including mosaic. The processing width of wet type ceramic tile Cutting Machine is 25-600mm.
4. Wet type mosaic Cutting Machine also can precut tile first and then cut off at last.
5. Due to reasonable design and high working precision, it has the advantage of high cutting efficiency, high precision and high production.
Applications:
Shaft Cutting Machine is suitable for cut or slotting floor tile and stone, It can cut tile into narrow, Square, Diamond and so on. Can process the tile from 25-600/800mm to different size in one time. The characteristic of this machine is high accuracy, Low broken, Big output.
Feature
1. The bearing in bearing box is use water-cooling device to make the bearing not hot after long time use, Delay the bearing is life.
2. Use high quality bearing supporting the front and behind of the main shaft to make the shaft drive with more high precision.
3. Add manual adjust device in the operative panel to make is driver it more easy.
4. Cantilever type structure make the machine drive steady with low failure rate.
CKD
China
FOSHAN CHUANGKINGDA MACHINERY CO.,LTD
Contact Supplier
-
Add To CompareType: Stone Factory MachinesStone Tile Cutting MachinesMitre Saw, Edge Cutting Machine
FOB Price:$-8000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
QXZ-1000 CERAMIC TILE BOARD CUTTING MACHINE
SHUINAN MACHINE
5YR
China
XIAMEN SHUINAN MACHINE CO.,LTD.
Contact Supplier
-
Add To CompareType: Stone Factory MachinesStone Tile Cutting MachinesMitre Saw, Edge Cutting Machine
FOB Price:$-8000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:

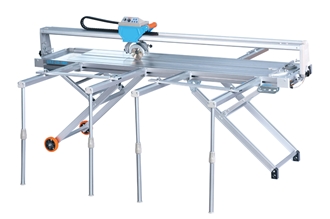

QXZ-ZD-1800 AUTOMATIC SERIES FOR CUTTING CERAMIC TILE PANELS
SHUINAN MACHINE
5YR
China
XIAMEN SHUINAN MACHINE CO.,LTD.
Contact Supplier
-
Add To CompareType: Stone Factory MachinesStone Tile Cutting MachinesMitre Saw, Edge Cutting Machine
$-8000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
QZ-1200 SLATE CUTTING MACHINE
SHUINAN MACHINE
5YR
China
XIAMEN SHUINAN MACHINE CO.,LTD.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesMitre Saw, Edge Cutting Machine
$-8000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
QZ-ZD-1800 AUTOMATIC SERIES OF STONE SLAB CUTTING
SHUINAN MACHINE
5YR
China
XIAMEN SHUINAN MACHINE CO.,LTD.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesMitre Saw, Edge Cutting Machine
$-8000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
QZZ-ZD-2460 AUTOMATIC SERIES FOR CUTTING CERAMIC TILES AND STONE SLABS
SHUINAN MACHINE
5YR
China
XIAMEN SHUINAN MACHINE CO.,LTD.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesMitre Saw, Edge Cutting Machine
$-8000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
QZ-KC-1200 SLOTTING MACHINE
SHUINAN MACHINE
5YR
China
XIAMEN SHUINAN MACHINE CO.,LTD.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesMitre Saw, Edge Cutting Machine
$-8000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
QZ-800-320 MULTIFUNCTIONAL PORTABLE CUTTING MACHINE
SHUINAN MACHINE
5YR
China
XIAMEN SHUINAN MACHINE CO.,LTD.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesMulti-Blade Cross-Cutter,Trimming
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
PGQ800800 10001000 Automatic Multi Blade Cutting Line
SHUINAN MACHINE
5YR
China
XIAMEN SHUINAN MACHINE CO.,LTD.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesMulti-Blade Cross-Cutter,Trimming
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
PGQ8001300 10001300 Automatic Multi Blade Cutting Line
SHUINAN MACHINE
5YR
China
XIAMEN SHUINAN MACHINE CO.,LTD.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesStrip Cutting,Edge Trimming Machine
$-6000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
OIL IMMERSED EDGE CUTTING MACHINE(Q95-9)
SHUINAN MACHINE
5YR
China
XIAMEN SHUINAN MACHINE CO.,LTD.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesStrip Cutting,Edge Trimming Machine
$-6000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
OIL IMMERSED CHAMFER CUTTING MACHINE(Q350)
SHUINAN MACHINE
5YR
China
XIAMEN SHUINAN MACHINE CO.,LTD.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesStrip Cutting,Edge Trimming Machine
$8000-20000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
WATER RETAINING STRIP CUTTING SAW(TM3000)
SHUINAN MACHINE
5YR
China
XIAMEN SHUINAN MACHINE CO.,LTD.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesStrip Cutting,Edge Trimming Machine
$-15000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
MARBLE/GRANITE PAIRS OF CUTAWAY MACHINES（YCDP-1800/2000)
SHUINAN MACHINE
5YR
China
XIAMEN SHUINAN MACHINE CO.,LTD.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesStrip Cutting,Edge Trimming Machine
$-15000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
MARBLE GRANITE PAIRS OF CUTAWAY MACHINES
SHUINAN MACHINE
5YR
China
XIAMEN SHUINAN MACHINE CO.,LTD.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesMitre Saw, Edge Cutting Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Quartzite, Sandstone, Travertine
Machinery Function Features:
The stone bench saws ITC are ideal for the construction sector. Rugged and portable for use on any jobsite. Professional wet saws with structure in iron; solid, precise and versatile they can be adapted to the cutting of all types of material (Grès porcelain stone-wares, bricks, items in concrete, brickworks, natural stones, marbles and granites). The head runs on chrome-plated guides by means of linear recirculating ball bearings with anti-dust protection. Manual inclination of the bridge for cuts from 90° to 45°. Adjustment of the depth of the cut is with a flywheel set above the motor unit. They are designed to work with blades of Ø250 Ø300 Ø350 and Ø400 mm. Available in single-phase or three-phase version.
Stone saws equipped with a cooling system for the cutting disc: a pump for the circulation of water, positioned within the collection tank, allows water to flow onto the disc for cooling. The tank, in sheet metal, is completely welded to structural reinforcements that guarantee maximum resistance to torsion/bending. The tank is emptied by opening the draining cap.
Folding legs to facilitate transport.
ACCESSORIES SUPPLIED: instruction manual, set of wrenches, side stop.
OPTIONALS: high-resistance chrome-plated bars, multilayer marine plywood (phenolic) work surface, diamond blades, extension side roller table 100×50 cm / 150×50 cm / 200×50 cm, extension side table in sheet-metal 55×45 cm, goniometer fence, lateral fence, machine with a structure for blades of Ø450 Ø500 mm, precision laser, three-phase motor for models 800 – 1000 – 1200, wheel kit for transport.
ITC
Italy
ITC Italian Top Class GS S.r.l.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesHydraulic Stone Splitting Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
splitface machine Hydraulic Stone Splitting Machine
Konmak
Turkey
Konmak A.S.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesMulti-Blade Cross-Cutter,Trimming
Warranty: 12 Months
Usage: Marble, Limestone, Sandstone, Travertine
Machinery Function Features:
Tecnical Data:
Disc Diameter: 450 mm
Min/Max Cutting Width: 650 mm
Min/Max Cutting Thickness: 60 mm
Disc Motor Power: 7,5/10 kw/hp
Reducer Motor Power: 0,75/1 kw/hp
Total Electric Power: 9/12 kw/hp
Overall Dimensions: 4000/1800/2100 mm
Machine Weight: 1250 kg
Nemar Makina
Turkey
Nemar Makina
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesHydraulic Stone Splitting Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Basalt, Quartzite, Sandstone
Machinery Function Features:
SPLITTING PRECISION
Broadway machines, specialist stone splitters for the production of split tiles and cladding stone products.
These machines are used to split granite, limestone, sandstone, slate, porphyry and many other types of natural stones.
BROADWAY SERIES 800, 1000, 1250, 1280 TILE & SLAB SPLITTER
It takes a great deal of experience to make tiles from slabs or natural flat face stone. This is why the Broadway machines are designed to split wide and very thin materials, with a specialist internal moving frame, giving a precision split edge each time.
Another notable difference that makes these splitters more suitable for this type of application is the pressure of the lower blade on the stone without the movement of the working table. This greatly improves split quality and reduces waste.
These machines are designed to split all types of stones and are particularly suitable for the production of slab paving and flat finished products. With their long blade large pieces of stone can be worked with precision.
BROADWAY SHERPA 600 2C SEMI- AUTOMATIC STONE SPLITTING LINE
Steinex semi-automatic Splitting line designed for natural stone with a sawn surface for splitting products of small to medium dimensions. This line is equipped with 2 splitting cylinders, lower and upper, to maximize the quality of the split.
The blade length is 600 mm with a maximum split height of 320 mm and the machine is supplied with a high performance, low maintenance hydraulic unit and once again Steinex continues offering incredible efficiency, with the line using approximately a maximum of 5kW of power.
BROADWAY 600
The Broadway 600 splitting machine is the smallest Broadway model, designed to be portable and as a general-purpose machine for the production of most split products from regular or sawn stone and concrete. It is also considered a specialist machine for the production of cladding and wall stones from slabs or sawn blocks. The blade is 600 mm long and fixed but pivoting, an excellent combination for splitting natural flat material or sawn stone. Each machine is equipped with a low noise hydraulic unit.
Steinex
Italy
Steinex S.r.l
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesHydraulic Stone Splitting Machine
€200000-700000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
Hydraulic stone splitter (guillotine) for large stone blocks
https://gestracz.com/stone/large-stone-block-splitting-machines
Description
Products
- Large blocks for retaining walls
- Armour stones
- Step stones
- Large building stones
- Semi-finished products for smaller machines
Machine description
Large stone stone splitters can process stones up to 2.3 m (~ 7.5 ft) wide and 1.2 m (~ 4 ft) high, the standard splitting power is up to 850 metric tons (936 short tons). Highly durable conveyors capable of moving heavy blocks and other additional equipment ensure smooth running of the line. Unique rotary manipulators allow easy rotation, twisting, shifting and sorting of finished products. Easy handling of large stone blocks contributes to greater performance.
Unrivalled performance
In the more than 30 years that we have been manufacturing these machines, we have, together with our customers, fine-tuned the organisation of work for maximum productivity. So that every machine is always fully utilised, with the right size blanks ready. We offer easy waste disposal and space for containers for finished products.
Robust construction
The machine is designed to stand up to harsh environments. We choose an extra robust construction for all stressed components. In the case of the splitter, these are of course the frame, the splitting tools, the teeth and the entire manipulators; the conveyors have extra thick chains, strong links and a robust frame. The conveyors are also controlled by frequency converters, which guarantees their smooth start-up, but also their protection against overloading.
Easy handling of large blocks
Thanks to the MO 2 manipulators with proportional valves for sensitive control, which have 3 parts and 4 joints (excellent kinematics), you can easily turn and tilt the stone in all directions in combination with the double-belt conveyor.
Precise splitting
The design of the floating frame ensures that the stone is always split between the tools with an even force from both sides. The upper tool allows a tilt of up to 12°, which together with the adjusting (self-levelling) teeth contributes to a higher quality of the splitting surface even for irregular blocks of stone.
Easy to operate
Machines with conveyors, where higher precision of the final products is expected, the operator is on the platform next to the machine at the same height as the conveyors, so that he has the best possible view of the stone being processed. The control panel is on a pivoting arm and the operator can move it in front of and behind the machine.
The stand-alone machines are operated by remote control from the wheel loader cab.
Automatic waste removal
When splitting large blocks, small waste falls down the machine and conveyors into a channel where it is continuously removed. This minimizes unproductive cleaning time and prevents potential damage to the machine from accumulated waste.
Customize the parameters of your splitting line
The large block splitter system (SLP) is easy to configure. It is possible to add individual elements such as different types of conveyors, manipulators, automatic waste removal, etc. At the same time, it is possible to customize the size and thickness of the machine. We offer several standard frame widths, the height and thickness of the splitter and the line assembly can be customized to your requirements.
Configurations
Production line - with manipulator arms and steel plate conveyors
- mounted with manipulator arms
- ideal if you need to split, turn and split again
- best precision
- control via proportional joysticks from the control platform next to the machine
Production line - with chain conveyors going thrue the splitter
- halfway solution between standalone and metal plates with manipulators
- no manipulator mounting possible
- the stone is loaded on a chain conveyor that goes through the machine tool
- the stone is aligned by the opposing movement of the chains
Stand alone splitter - operated from a wheel loader
- works in cooperation with a wheel loader, which pushes the stone into the machine and the operator splits it by remote control
- operation mode is splitting and pushing the stone into the splitter, turning the stone after splitting and splitting again is challenging
Gestra CZ s.r.o.
Czech Republic
Gestra CZ s.r.o.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesHydraulic Stone Splitting Machine
$49000-
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Quartzite, Sandstone
Machinery Function Features:
Automatic splitting plant for working strips or long piceses of material to produce tiles, cladding plates or cobblestones
Machine designed for waste recovery of sawn stones, but its use can be extended to other primary products
Splits sawn material 15" Long X 7" wide.
36 tons of splitting pressure complete with electrical cabinet built to UL-Rules.
Link to view video: https://youtu.be/BarJrEAFv-c -
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesMitre Saw, Edge Cutting Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
NVM-1000 Manual Cutter
Space required for installation: 6000 X 3000M
Corte útil por detrás del disco: 1000mm Useful cut behind the album: 1000mm
Potencia del motor: 10 CV Engine power: 10 hp
Potencia de elevación del cabezal: 1 CV Power Lifting Head: 1 HP
Elevación útil del cabezal: 300mm Lifting head useful: 300mm
Corte longitudinal: 3500 mm Longitudinal: 3500 mm
Corte inglete Miter cut
Carro 2500 X 1300 mm 2500 X 1300 mm Car
Guías, ruegas, engranajes y soportes protegidos contra en agua Guides, beg, gears and protected in water supports
Galga de 2500mm de larga 2500mm long gauge
5 pletinas que hacen función de tope para agalgar con tornillos inoxidables regulables 5 plates that make a stop for agalgar function with adjustable stainless steel screws
MECANIQUES NAVARRO S.L.
Spain
MECANIQUES NAVARRO S.L.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesHydraulic Stone Splitting Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Basalt, Quartzite, Sandstone
Machinery Function Features:
Heavy-duty frame and the teeth with mechanical adjustment make the PX machines ideal for splitting every kind of stone. They can be considered like primary splitters for feeding of complete splitting lines, or even like complete independent working equipment, depending on the finish product you need to get. For this reason, PX machinery may be installed even directly in the quarry for on-site processing of sawn blocks, natural quarry layers or irregular stones with easiness. The bottom blade is fixed, and the working table is mobile, that drops down at the moment of splitting in order to accommodate the correct way of processing.
MEC
Italy
MEC s.r.l.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesMitre Saw, Edge Cutting Machine
$1515-
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Quartzite, Sandstone, Travertine
Machinery Function Features:
SW Series C € some of the best blades for tile size size ranges on the market, extremely stable and robust at the same time lightweight...\
motor with 230V power supply with a capacity of 2.0 kW or 400V power of 2.9 kW, 2,800 revs / min.
Mobile ideal saw for work on construction and renovation areas
customer
by a system of folding legs and quick release head for easy transportation
in the car combi
very simple to operate rail to cut 45%
long-lived 12 - bearing sliding head
galvanized worktable
integrated water pump 40
height-adjustable cutting head to discs 250 mm and 300 mm
-25.4 shaft diameter mm
Maximum cutting depth of 80 mm
Maximum cutting length 80 cm
**Net price: PLN 4,600.00 - delivery from the factory to customers in Poland
Porsfeld Lukasz Pikul
Poland
Porsfeld Lukasz Pikul
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesMulti-Blade Cross-Cutter,Trimming
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Sandstone
BREAKER S.r.l.
Italy
BREAKER S.r.l.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesMitre Saw, Edge Cutting Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Sandstone
Machinery Function Features:
Bridge saw machine, ideal for wet cuts on marble stone slabs and tiles.
GHELFI SRL
Italy
GHELFI SRL
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesStrip Cutting,Edge Trimming Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Sandstone
Machinery Function Features:
Trimming machine in belt-rollers with:
a) 2 independent heads
b) 4 independent heads
c) multiblade ( in one axis, many disks)
P. Elenis Marble Machines
Greece
P. Elenis Marble Machines
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesMitre Saw, Edge Cutting Machine
Warranty: 12 Months
Usage: Granite, Marble, Onyx, Sandstone, Travertine
Machinery Function Features:
SQJ-20/28 Manual Edge Cutting Machine
The independent adjustment structure of SOJ-22/28 Manual Edge Cutting Machine in both vertical and horizontal directions is applicable for cutting slab with multiple specifications. Cutting head of main drive can rotate 45°. The great strength and high efficiency of the machine makes it possible to process slabs of accurate dimension and specification, including straight and smooth edge. The machine is of YLS type and LS type.
East Diamond Co., Ltd
Ukraine
East Diamond Co., Ltd
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesHydraulic Stone Splitting Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Basalt, Quartzite, Sandstone
Machinery Function Features:
Name: Splitting machine PUZZLE MAXI
Structure: Steel massive carbon
ELECTRICAL CURRENT: 380V/50 -
ELECTRICAL POWER: 7,5 kW
HYDRAULIC PUMP: 50 T
MATERIALS HAS ACCEPTED: Granite | Marble | Silestone | Quartzite
THICKNESS HAS ACCEPTED: 1 – 10 cm
MAXIMUM PRODUCTION CAPACITY: 3 m 2 /h by a standard mold
MINIMUM MOLD BLADE DURATION: 1000 m 2
OIL TANK CAPACITY: 70 L
WORKING HYDRAULIC PRESSURE: 250 bar
MACHINES SIZE: 1.37 x 1.23 x 2.00 mt
WEIGHT: 1.920 Kg
Supplier country: Czech Republic
Longis spol s.r.o.
Czech Republic
Longis spol s.r.o.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesHydraulic Stone Splitting Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Basalt, Quartzite, Sandstone
Machinery Function Features:
* Maximum attention at customer’s satisfaction
* Customized and to our target functional machines
* Whole flexibility for possible new requests and adaptations
* High quality and certifications of offered products
* Continuous advice
* Prompt technical assistance worldwide
MEC srl
Italy
MEC srl
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesStrip Cutting,Edge Trimming Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
VeneerPro-Viper
Vibration Technology! Cutting flats and corners!
Cutting saw machine for the thin veneer industry
Yonani industries ltd
Israel
Yonani industries ltd
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesMitre Saw, Edge Cutting Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Artificial Stone, Sandstone
Machinery Function Features:
Cutters Machines for wet-cutting marble, granite, cement and building materials
Cutting dimensions: 40-150cm
AbrasMarmi s.a.s.
Italy
AbrasMarmi s.a.s.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesMulti-Blade Cross-Cutter,Trimming
Warranty: 12 Months
Usage: Marble, Limestone, Onyx, Sandstone, Travertine
Machinery Function Features:
6 HEAD Horizontal tile trimming, splitting machine
Yuceler Makina
Turkey
Yuceler Makina
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesStrip Cutting,Edge Trimming Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Sandstone
M.A.Y. Ucler Makine
Turkey
M.A.Y. Ucler Makine
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesMulti-Blade Cross-Cutter,Trimming
Warranty: 12 Months
Usage: Marble, Limestone, Slate, Sandstone, Travertine
Machinery Function Features:
ÇOKLU EBATLAMA MAKİNESİ
Kesim Disk Sayısı 2-8
Kesim Disk Çapı 350 – 400 mm
Kesim Kalınlığı 10 – 100 mm
Max. Kesme Genişliği 400 mm
Min.Kesme Genişliği 50 mm
Kesim Diski motor Gücü 18,5 Kw
Kesim Diski Köprü Hareket Motor Gücü 1,1 kW
Makine Ebatları ( E/ B/ Y) 1900 / 2500 / 2100 mm
CMK Makine
Turkey
CMK Makine
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesStrip Cutting,Edge Trimming Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Sandstone, Travertine
Machinery Function Features:
NATURAL STONE CUTTING MACHINE
Automatic And Manual Natural Stone Cutting Machine
Tepeüstü Mah. Example Sok. No: 32 Ihlamurkuyu - Umraniye - Istanbul
Tel: 0216 314 82 68 Fax: 0216 314 82 68
Gursel OZ Mobile: 0539 553 72 97
[email protected] - [email protected]
http://www.burucmakine.com.tr/
Buruc
Turkey
Buruc Makine
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesMulti-Blade Cross-Cutter,Trimming
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Quartzite, Sandstone, Travertine
Machinery Function Features:
TELEFON
+90 5308201069 Serkan Güler
+90 5326909339 Dursun Güler
FAX
+90 232 853 28 26
E-POSTA
[email protected]
ADRES
ORTAKÖY MH PHİLSA CAD NO 118 TORBALI – İZMİR
DGS Makina
Turkey
DGS Makina
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesMitre Saw, Edge Cutting Machine
Warranty: 12 Months
Usage: Marble, Limestone, Sandstone, Travertine
Machinery Function Features:
Beşevler K. Sanayi Sitesi 28 Blok Bursa / Türkiye
+90 (224) 441 08 36
[email protected]
http://www.evrenselmakina.com
Evrensel Makina
Turkey
Evrensel Makina
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesMulti-Blade Cross-Cutter,Trimming
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
The cutting line N.2990/2200-5+7C counts with:
1 Intermediate motorized plastic rollers table, model N.2274.
1 longitudinal cutter with 5 cutting heads ø 600 and mobile bridge, model N.8000-L-5C.
1 transverse cutter with 7 cutting heads ø 600 and mobile bridge, model N.8000-L-7C.
2 motorized band cutting tables, model N.2304.
1 table with stone sheet selection stops, N. 2590.
1 double displacement table with motorized rollers, model N.2585.
1 motorized band table for material output, model N.2426.
CUTTING LINES N2990/2200 5 + 7 HEADS TECHNICAL SHEET
Our cutting line N.2990/2200-5+7C has been designed aiming maximum production capacity with minimum labour force, as well as the absolute reliability of all its parts.
The production line overall dimensions have been adjusted to the customer needs, following his criteria about the produced pieces dimensions and the final products obtained.
The whole line features better robustness and reliability in all its subassemblies, being them all designed to support the hardest working conditions. This is one of the most relevant aspects where we can offer our long time experience in designing and manufacturing stone processing machines for this sector.
One of the great advantages of the machines integrating this production line is that all the designs are already tested solutions. They only differ from our standard machines in their overall dimensions, but not in all incorporated components.
With the automatic loading trolley NDF-1289-P/V (optional), the longitudinal cutter is fed with material from a stacker. Panels are removed using suction cups connected to a vacuum pump that tilt and place them in a horizontal position, ready to move to the cutting unit. Panels from the horizontal stacker are placed waiting to enter in the production line in such a way that the following panels maintain the alignment being unnecessary to adjust the cutter starting point.
The intermediate rollers table not only joins the feeding trolley and the longitudinal cutter but also acts as an intermediate storage so that the cutting unit stop times are very low.
The 5 heads longitudinal cutter N.8000-L-5C over rolling bridge and the 7 heads transverse cutter N.8000-T-7C are equipped with the latest technology, both in their mechanical design and in their electronics. It is worth mentioning the use of a high precision and stiffness linear guide system with linear recirculating ball bearing unit by the gripper cutting head bridge during the cutting works. The bridge is supported by two beams, being parallel to the cutting table the first and perpendicular, the second.
The sliding disc holder cutting heads also move vertically guided by a linear recirculating ball bearing unit and operated by a laminated ball screw with recirculating ball screw nut in order to achieve a quick and precise positioning and being all perfectly protected by PVC bellows. The gripper cutting heads have translation movement thanks to a gear motor controlled by a frequency inverter and positioning magnetic scale in the X axis and cutting head operated by a ball screw and an electric gear motor for vertical positioning in the Z axis. The cutting heads positioning is simultaneous thanks to their independent inverters.
The N.2304 cutting tables consist of a steel structure with a machined top plane where the motorized transport band lies. The band is rubber covered to avoid slab slipping during the cutting process. A stone blocking device, placed in the second transverse cutter table, allows reducing times during the transverse cut process considerably.
The table N. 2590, placed just after the longitudinal cutter, counts with a stop system, pneumatically driven, that allows the selection of the previously cut stone strips according to the width for their further processing in the longitudinal cutter.
The second table N.2585 counts with a towing device to join and align the strips before their processing in the transverse cutter, and to remove waste from the longitudinal cut.
The unloading table with band N. 2426 count with a steel profiles frame with a transport band to unload the cutting table while the transverse cutter receives and starts cutting the next panel.
The palletising robot N-3530 (optional) with vacuum suction cup is specially design to do automatic palletising tasks on the basis of the same operation principles applied in the Nodosafer standard palletising. It also offers many advantages such as work process optimisation, shorter cycle times and efficient use of the down times. The reception suction cup, with a special design, counts with a rectangular plate, able to support horizontal loads of up to 120 kilograms.
All dangerous working areas are isolated from personnel access by means of protection fences and optical barriers.
All machines and cutting heads count with a centralized greasing system for an easy and quick maintenance.
As for electricity and control, it is worth mentioning the use of last generation automatons with programs specifically designed by our technicians, so that the machine programming is as easy as possible, avoiding unnecessary loss of time. The operation cycle programming and the visualization of this sequence is made over two screen operator terminals where all the cutting parameters are displayed.
LOADING TROLLEY N.1289-P/V FEATURES
Table dimensions 1880x3200 mm
Frame dimensions 2560x1140 mm
Central vacuum 30 m3/h / 1.35 CV
Hydraulic control unit 5,5 CV
Trolley advance engine power 3 CV
Table engine power 1,5 CV
Trolley displacement speed 5 m/min
Stone sheet displacement speed 11.5 m/min
Maximum working width 2200 mm
MOTORIZED ROLLER TABLE N.2274/2200 FEATURES
Table width 2930 mm
Maximum table length 3500 mm
Maximum working width 2200 mm
Forward speed 11.5 m/min
Drive engine power 1.5 HP
BRIDGE CUTTER N.8000-L-600-5C FEATURES
Machine width 4220 mm
Rolling ways length 6000 mm
Maximum disks distance 1-5 2200mm (inside)
Minimum disks distance 1-2-3-4-5 300 mm
Cutting disks diameter 600 mm
Maximum height of the cutting pieces 150 mm
Disk engine power 15HP (5)
Total power installed 82 HP
Water consumption per disk 15-20 l/min
BRIDGE CUTTER N.8000-T-600-7C FEATURES
Machine width 5370 mm
Rolling ways length 5500 mm
Maximum disks distance 1-3 3500 mm (inside)
Minimum disks distance 1-2-3-4-5-6-7 300 mm
Cutting disks diameter 600 mm
Maximum height of the cutting pieces 150 mm
Disk engine power 15HP (7)
Total power installed 132 HP
Water consumption per disk 15-20 l/min
BAND CUTTING TABLE N.2304/2200 FEATURES
Table width 2960 mm
Max. Table length 4044 mm
Max. Band width 2200 mm (inside)
Band displacement speed 11.5 m/min
Drive engine power 3 HP
DOUBLE DISPLACEMENT MOTORIZED ROLLER TABLE N.2585/2200 FEATURES
Table width 2930 mm
Max. table length 3900 mm
Max. working width 2200 mm
Rollers forward speed 11.5 m/min
Roller drive engine power 1.5 CV
Centring displacement speed 5 m/min
Transversal displacement engine power 2.5 HP
ROLLER TABLE WITH SELECTION STOPS N.2590/2200 FEATURES
Table width 2930 mm
Max. table length 3700 mm
Max. working width 2200 mm
Rollers forward speed 11.5 m/min
Roller drive engine power 1.5 HP
MOTORIZED BAND TABLE N.2426/2200 FEATURES
Table width 2930 mm
Max. table length 4300 mm
Max. working width 2200 mm
Rollers forward speed 11.5 m/min
Roller drive engine power 3 KW
PALLETISING ROBOT N-3530 FEATURES
Max. load 120 kgs.
Mínimum piece size 300 x 300 mm
Central vacuum 100 m3/h
Installed power 25 CV
Minimum cycle time. 10” sec
Spain
NODOSAFER SL
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesStrip Cutting,Edge Trimming Machine
$16000-17000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
Stone Slicing machine: the rotating flywheel drives the saw blade to run at high speed to saw and process the stone. The feeding of the processed parts adopts a flat belt transmission mechanism with frequency conversion speed regulation. Different processing speeds can be set according to different materials of the processed parts; the belt table can be raised and lowered , used to adjust the cutting thickness.
The saw blade adopts a mechanical + hydraulic combination mechanism for constant pressure tension, and the platform lift uses an encoder for data collection to automatically control the lift stroke through PLC. The flywheel has undergone dynamic balancing processing, and the whole machine runs smoothly.
The active and passive flywheels use large ball self-aligning bearings, which are durable. The protective cover is made of stainless steel and the surface is painted. Each power: 8.5KW, water consumption: 1m³/H
China
Quanzhou Faithful Machinery Co.,Ltd
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesStrip Cutting,Edge Trimming Machine
€18500-18500
Warranty: 12 Months
Usage: Marble, Limestone, Onyx, Quartzite, Sandstone, Travertine
Machinery Function Features:
Completely rebuilt and upgraded splitting machine for tiles of marble, travertine, tufa and other stones.
Model: SPALERI INOX31
The machine is ready to work three consecutive shifts, for 50,000 running meters, assuming proper lubrication.
The machine was stripped down to its last piece and then rebuilt and upgraded using only its existing chassis:
Upgraded with the installation of the following systems:
Stainless Conveyor belt tensioning system +
Stainless Bearings of tension system +
Stainless Conveyor Belt Fixing Bolts +
Stainless Cutting disc fixing screws +
Cutting Head Bearings: Special low noise + bearings
5mm thick monoblock steel cutting head cover for permanent waterproofing +
Electric or manual Adjustment of cutting heads with precision division system +
Anti-slip belt, 3+2 layers, German+ certified +
3-layer epoxy anti-rust treatment, on all four sides of each metal piece and all directly on perfectly clean metal +
Cutting with two special German WATT electric motors characterized by high torque at low speeds
Internal anti-vibration base on each of the two cutting heads.
Vibration-free operation for producing ultra-thin (6mm, 8mm, 10mm, 12mm) or very thick tiles (80mm), without breaking +
Maximum processing width (cm): 31 +
Maximum processing thickness (cm): 8 +
Main processing engines: Two (2), Power of each engine: 15 KW +
Total power (KW): 31 +
Total weight (Kg): 850 +
Quality category: Italian top category +
Year of rebuild and upgrade: 2023 +
TUV / CE + approved
Attention A: The electrical panel, control panel and electrical installation of each machine are new and installed after receiving the order for security reasons against theft.
Attention B: The machine is located in our factory in Bulgaria, 10km from Promachon, at the entrance of the town of Katuntsi, 500 meters before Farmatech.
Attention C: The machine is ready to work three shifts continuously for 50,000 meters, assuming proper lubrication. It is about the most productive and quality machine of its category.
Attention D: The machine is delivered in 25 working days after receiving the advance payment. Any inspection by the customer is accepted.
Attention Q: Note: Spalieri and SPL are registered trademarks of Spalieri S.p.A +
Greece
ORAMA LITHOS
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesStrip Cutting,Edge Trimming Machine
$12000-12500
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
The veneer saw cuts thin stone veneer fats and 90 degrees corners. It cuts stone with irregular shapes and variable dimensions. While maintaining its natural shape, the cut stone presents an even surface, making it easy to place on any surface.It uses vertical blades and an automatical controlled conveyor to accurately cut fat and corner pieces to uniform sizes.Cut types: Flats + Corners.Up to 380mm high and 60mm thick.Material: Sandstone. Brick. Limestone. Other stone. Operating the is easy. Simply adjust the vertical blade position, then place the stone on the durable belt conveyor. Automatically adjust the belt speed with the touchscreen control.The main motor is equipped with an inverter, which can adjust the speed and save energy ac-cording to the cutting status. Manual Height Adjustments. Easy blade changes.
China
STONEPLUS MACHINERY CO.,LTD
Contact Supplier
Have a Question? Ask our expert
Ask now
Questions & Answers on Sandstone Tile Cutting Machines
Can I cut stone with a table saw?
Posted by Visitor
Reply to this question
Post ReplyCancel
You can use a table saw to cut stone if the saw has a diamond blade that is kept continually wet while cutting. A regular table saw blade will not create a smooth cut. The blade will chip the stone and will also produce a large amount of dangerous silica dust. A table saw is great for everyday projects.
Answered by StoneContact
Like
How can natural stone be cut with a tile saw?
Posted by Visitor
Reply to this question
Post ReplyCancel
Wet your stone in a bowl or bucket of water to prevent an initial dry cut. Place the stone on the opposite end of the tile saw from yourself. Pull the stone gently towards you, using the saw blade to cut down your marked line. Allow the saw blade to cut the rock, rather than putting a lot of pressure on it.
Answered by StoneContact
Like
