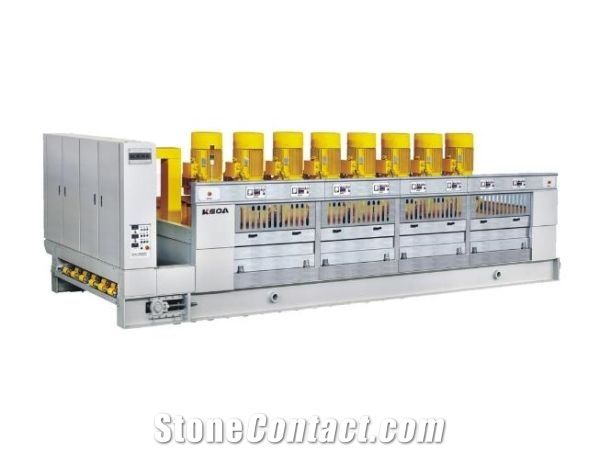

Calibrating machine for granite

FOB Price:

Type: Stone Factory MachinesStone Finishing, Profiling MachinesCalibrating Machine
Usage: Granite, Artificial Stone

Supplier

Eatablished :Dec 31,1991

Main Product:

Ceramic Machinery, Clean Energy, Stone Machinery, Bricks Machinery, Hydraulic Pump, EPC|

Contact supplier

Start Order

  • Overview
  • Components
Machinery Function Features
1、It is higy technology product first invented domestically by KEDA at the end of 2007.It is mainly used for granite、microcrystal and compound quartzslab calibrating. 2、The machine uses rough grindinghead that has reasonable structure and high efficiency,which is a breakthrough for long time of low calibrating efficiency;it also reduces ab-rasiveconsumption that cut down the cost. 3、Cycloid pin-wheel reducer for speed regulating,position meter fbr lift displacement,the head lift height can be controlled precisely,that ensure calibrating correctly with high efficiency.
Technical Data
Parameters
Unit
SDZ160/8
SDZ210/8
Machine overall length
mm
9385
9385
Machine overall height
mm
2390
2390
Maximum workable thickness
mm
50
50
Machine overall width
mm
3541
4041
Minimum workable thickness
mm
10
10
Water requirement
l/min
600
600
Total power installed
kW
287.96
287.96
Maximum workable width
mm
800~1650
800~2100
Consumables

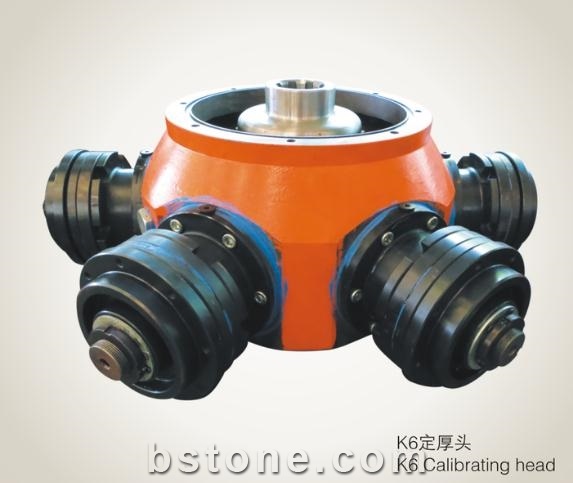

  • K6 calibrating head

    K6 calibrating head
