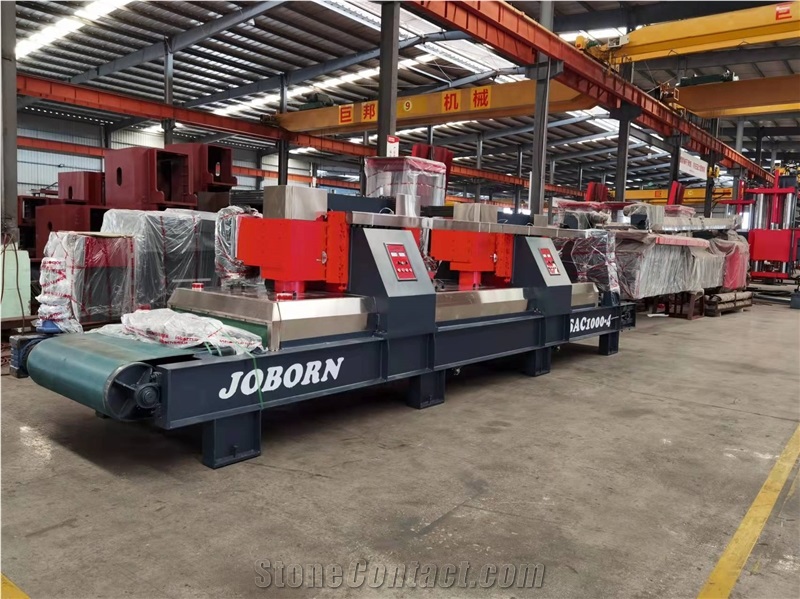

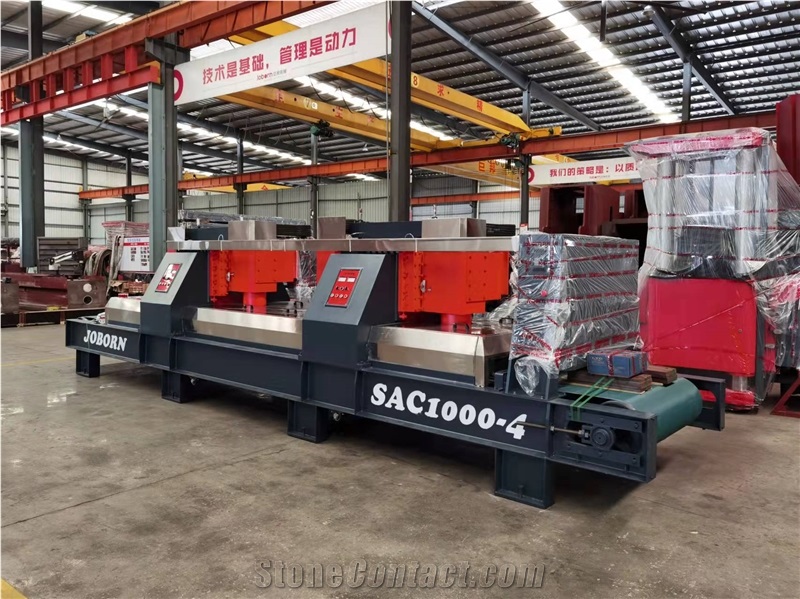

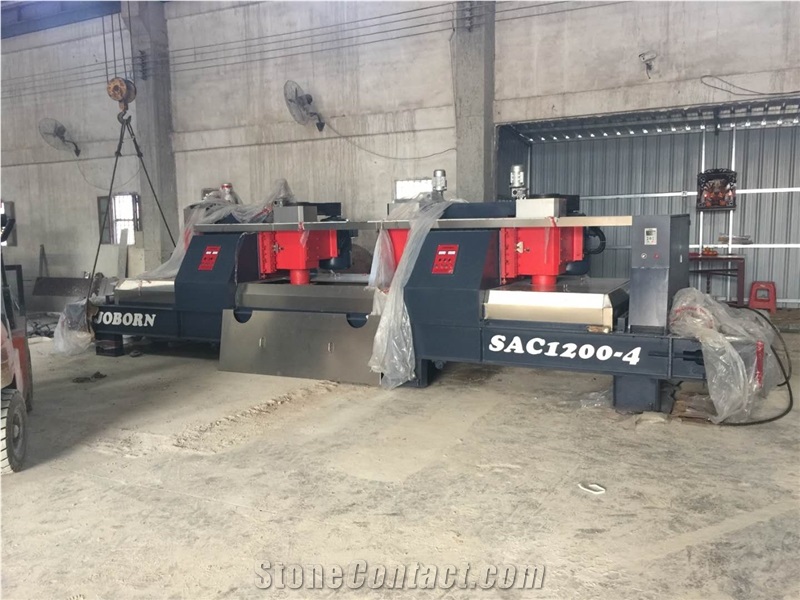

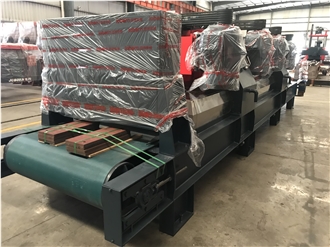

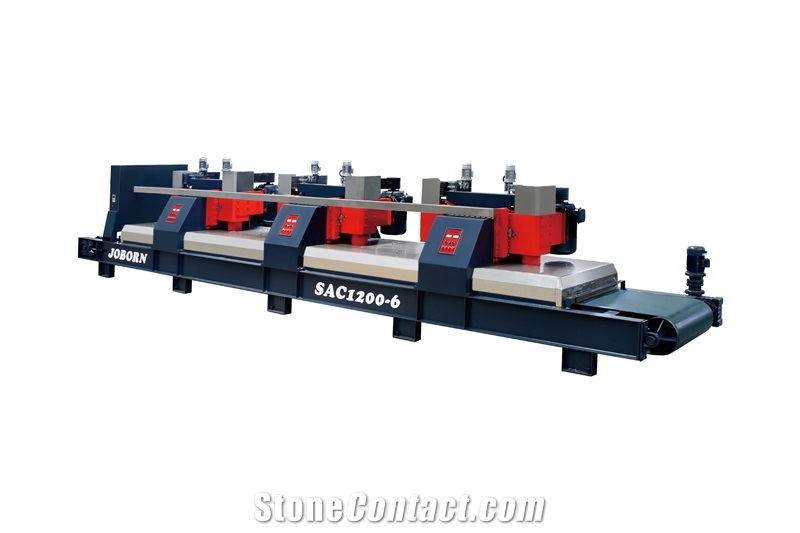

Stone Continuous Calibrating Machine For Marble/ Granite/Quartz
FOB Price:$20000-23000
Type:
Stone Factory MachinesStone Finishing, Profiling MachinesCalibrating Machine
Usage:
Granite, Marble, Limestone, Slate, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time:
60days
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation, Third-party team installation
Maintenance:Online software upgrade, Regular guidance & maintenance, Remote troubleshooting
Supplier
Eatablished :Jul 28,2015
Main Product:
Stone Block Cutting Machine, Bridge Saw Machine, Stone Polishing Machine, CNC Bridge Cutting Machine, Bridge Cutting Machine, Stone Profiling Machine|
Machinery Function Features

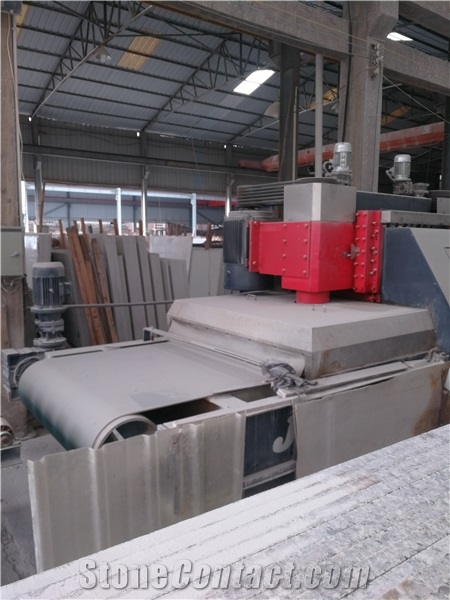

This machine adopts the structure of Long men type, good rigidity, conveyor belt continuous feed plate, high efficiency, High speed rotating diamond milling disc milling on the stone surface plate, make the surface of the stone plate to get a flat, ensure the thickness of the plate is consistent, So as to greatly improve the polishing efficiency and quality, reduce the cost of subsequent polishing, It Is the preferred equipment for the slab thickness of stone plate.
Technical Data
Parameters |
Unit |
SAC-880 |
SAC-1080 |
SAC-1280 |
Z axis stroke |
mm |
90 |
90 |
90 |
Standard voltage |
Volt |
380 |
380 |
380 |
Machine overall length |
m |
4.4/6.5/8.7 |
4.9/7.3/9.9 |
5.5/8.5/11.4 |
Maximum workable width |
mm |
850 |
1050 |
1250 |
Machine overall width |
m |
1.6 |
2 |
2.2 |
Number of calibrating units |
nr |
2/4/6 |
2/4/6 |
2/4/6 |
Machine overall height |
m |
2.1 |
2.4 |
2.4 |
Maximum workable thickness |
mm |
60 |
60 |
60 |
Water requirement |
m3/h |
8/16/24 |
8/16/24 |
8/16/24 |
Diameter of calibrating head |
mm |
880 |
1080 |
1280 |
Minimum workable thickness |
mm |
10 |
10 |
10 |
Power of each calibrating unit |
kw |
18.5(6P) |
22(6P) |
22(8P) |
Processed Stone Photos
-
granite
Components
-

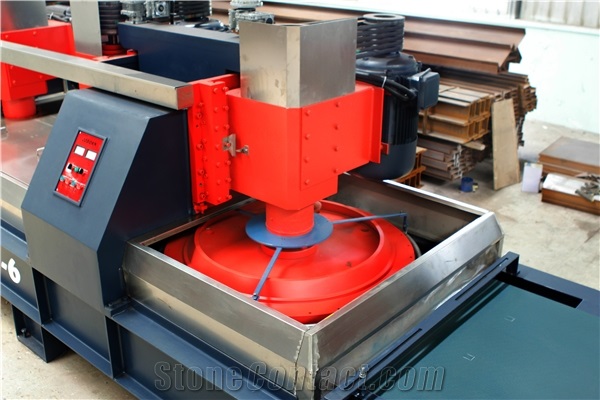

calibrating head
¥Payment Required
Consumables
-

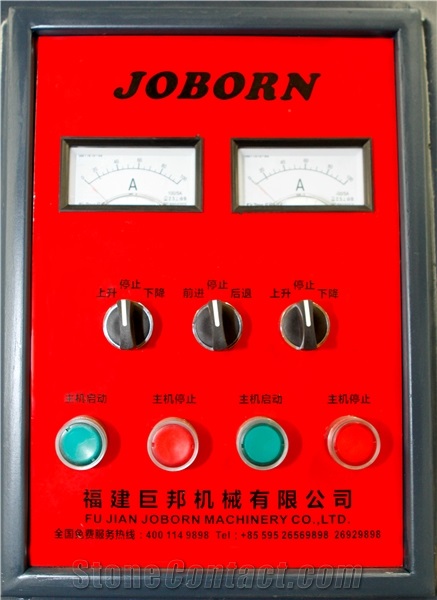

control box
