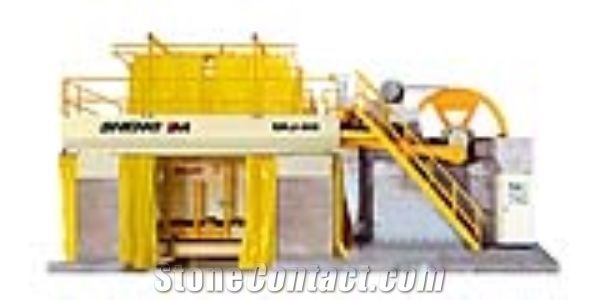

SKJ-80 Gang saw for marble
FOB Price:
Type:
Stone Factory MachinesStone Block Cutting MachinesMulti Blade Gang Saw
Usage:
Granite, Marble
Supplier
Eatablished :Jan 27,1986
Main Product:
Stone Machine, Stone Cutting Machine, Stone Polishing Machine, Stone Profiling Machine, Bridge Saw, Profiling Cutting Machine|
Technical Data
Parameters |
Unit |
SKJ-80 |
SKJ-100 |
Block max. height |
mm |
2000 |
2000 |
Block max. length |
mm |
3200 |
3200 |
Max. block width |
mm |
2000 |
2500 |
Blade length |
mm |
4400 |
4400 |
Machine overall length |
mm |
12800 |
12800 |
Max. no. of blades |
No |
80 |
100 |
Machine overall height |
mm |
6200 |
6200 |
Cutting Speed |
mm/hour |
0-305 |
0-305 |
Strokes per minute |
rpm |
90 |
90 |
Blade stroke |
mm |
800 |
800 |
Machine overall width |
mm |
5500 |
6000 |
Main motor power |
kW |
110 |
110 |
Components
-

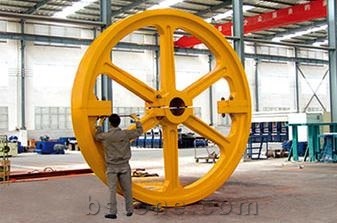

Flywheel
-

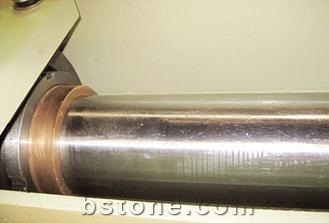

Static pressure guides of the blades frame
