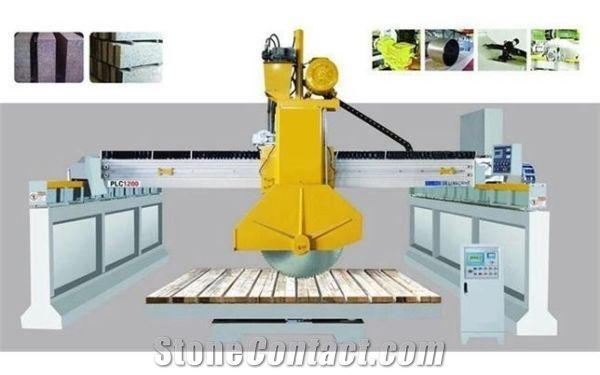

PLC-1200/1400 INFRARED BRIDGE CUTTING MACHINE
FOB Price:
Type:
Stone Factory MachinesStone Slab Cutting MachinesInfrared Bridge Cutting Machine
Usage:
Granite, Marble
Supplier
Eatablished :Jan 26,2016
Main Product:
Stone Machine, Stone Cut Polishing Machine, Terrazzo Stone Making Machine, Artificial Marble Block Press , Terrazzo Cement Marble Machine, Quartz Press Machine|
Machinery Function Features
It uses of large-span bridge structure, beam guide oil-immersed sealed beam, anti-wear lubricant in the guide and the slide block, form a thin oil film between beam protective film has at the same time, the material loss is reduced to the extreme in the feeding system adopts imported frequency converter can realize stepless speed regulation of cutting, equipped with a 360 - degree rotating table, rotating flexible, accurate positioning, high rigidity, smooth makes the machine cutting and processing, processing is high value stone tombstone, handicraft, luyandan ideal equipment.
Technical Data
Parameters |
Unit |
PLC-1200 |
PLC-1400 |
Machine height |
mm |
4200 |
4400 |
Max. Vertical stroke |
mm |
800 |
800 |
Main motor power |
kW |
18.5 |
22 |
Approximate weight without table |
kg |
6800 |
7000 |
Blade diameter |
mm |
Φ600-Φ1200 |
Φ800-Φ1400 |
Machine length |
mm |
6000 |
7000 |
Working table rotating angle |
° |
0-90°/45° |
0-90°/45° |
Max. working dimensions(L×W×H) |
mm |
L2800*W2000 |
L3200*W2000 |
Cooling water requirement(1.5 bar min. pressure) |
l/min |
66.7 |
66.7 |
Machine width |
mm |
5000 |
4300 |
Total power |
kW |
23 |
26.5 |
