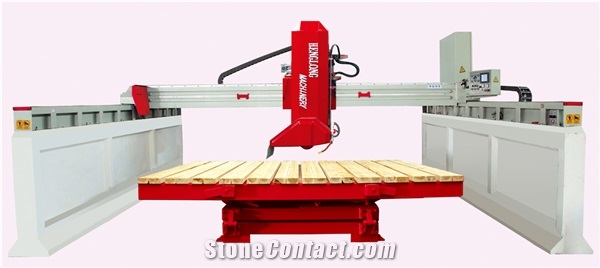

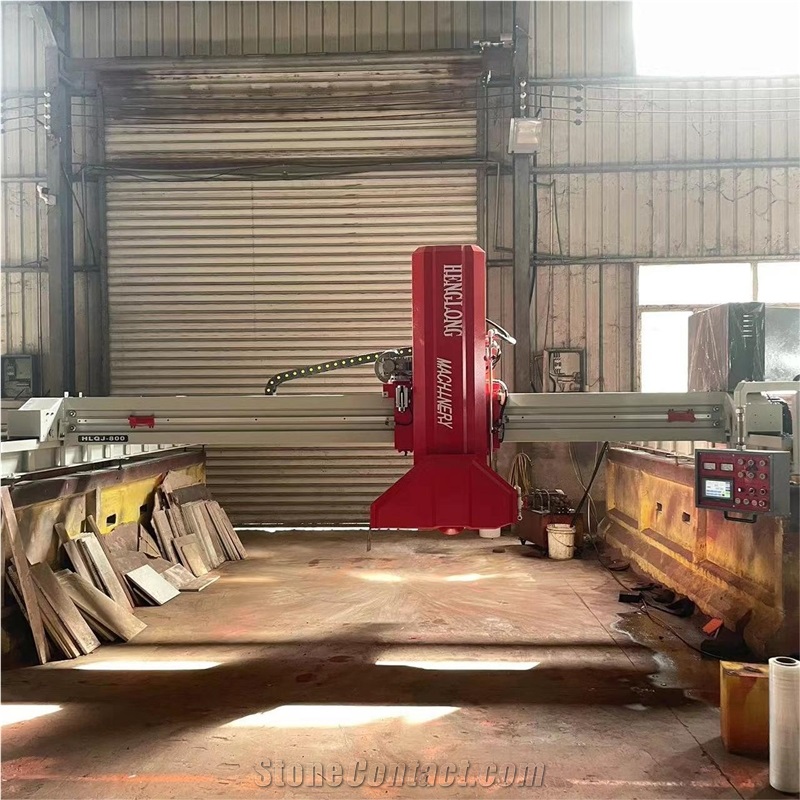

HLQC-600/800 Infrared Plc System Stone Bridge Cutting Machine
FOB Price:$11000-20000
Type:
Stone Factory MachinesStone Slab Cutting MachinesInfrared Bridge Cutting Machine
Usage:
Granite, Marble, Limestone, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time:
14days
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Remote troubleshooting, Field troubleshooting
Supplier
Eatablished :Dec 22,2002
Main Product:
Automatic Polishing Machine, Automatic Cutting Machine, Bridge Cutting Machine, Stone Processing Machine, Terrazzo Polishing Machine, Stone Slabs/Blocks|
Machinery Function Features
HLQC-600/800 infrared automatic stone bridge cutting machine has two type, adopting PLC system and Human-machine interface, togethering with ultra-high precision rotary encoder positioning and infrared device, with Chinese & English double operation language, using inverter to control left-right feeding,adjusting the speed according to stone material, using hydraulic lifting system which equiped through 4 guide post, also this machine provide the unique side beam protection device, main spare parts adopt imported well-quality materials.
The whole machine is featured with high cutting efficiency, high cutting precision, high stability, easy to operate, specially high value granite and big size marble
Technical Data
Parameters |
Unit |
HLQC-600 |
HLQC-800 |
Working table dimensions(L×W) |
mm |
3200x2000 |
3200x2000 |
Blade diameter |
mm |
600 |
800 |
Working table tilting angle |
° |
0-85 |
0-85 |
Machine height |
mm |
2200 |
2200 |
Z Axis Stroke |
mm |
350 |
380 |
Hydraulic station motor power |
kw |
3.5 |
3.5 |
Total power |
kw |
24 |
24 |
Working table rotating angle |
° |
0-90/0-360 |
0-90/0-360 |
Max. working dimensions(L×W×H) |
mm |
3200*2000*180 |
3200*2000*260 |
Machine width |
mm |
4300 |
4300 |
Approximate weight without table |
Kg |
5600 |
5600 |
Crossbeam motor power |
kw |
2.2 |
2.2 |
Head motor power |
kw |
18.5 |
18.5 |
Cooling water requirement(1.5 bar min. pressure) |
m3/h |
3 |
3 |
Main motor power |
kw |
18.5 |
18.5 |
Machine length |
mm |
6500 |
7000 |
Max. thickness cutting capacity |
mm |
180 |
260 |
Processed Stone Photos
-

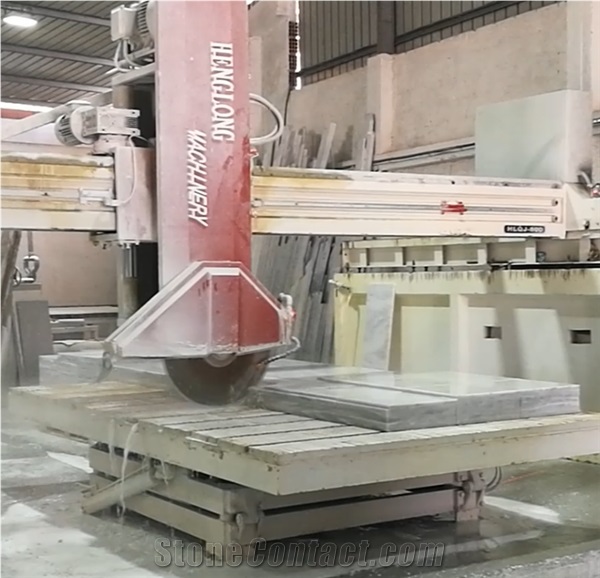

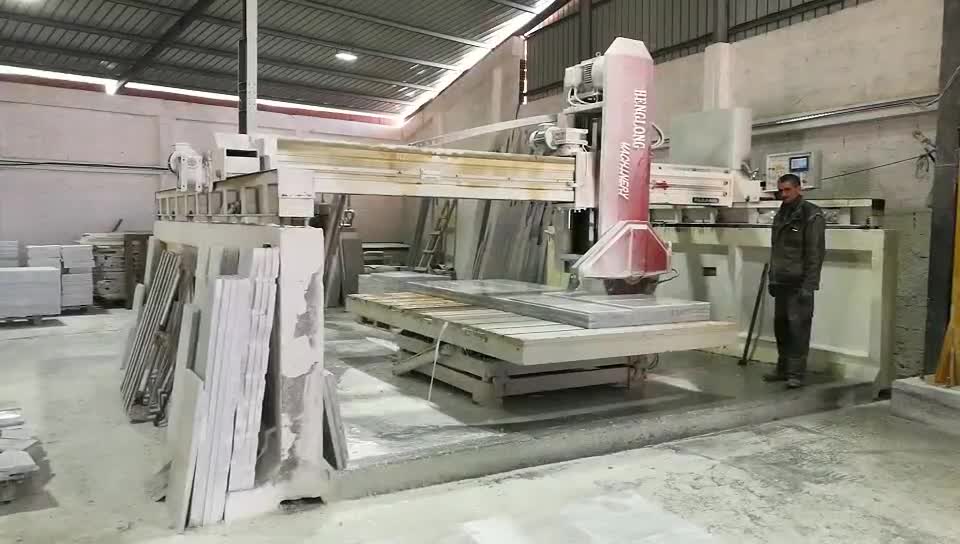

cutting
Components
-

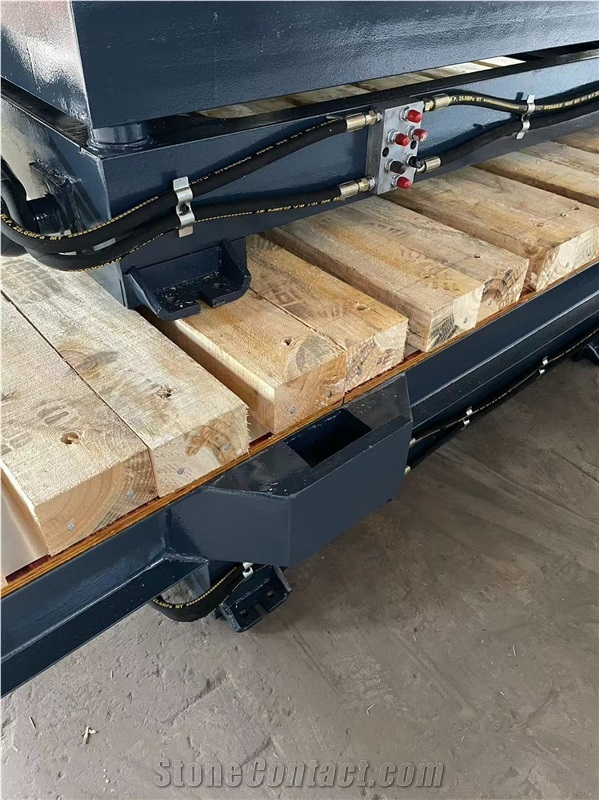

bridge
Consumables
-

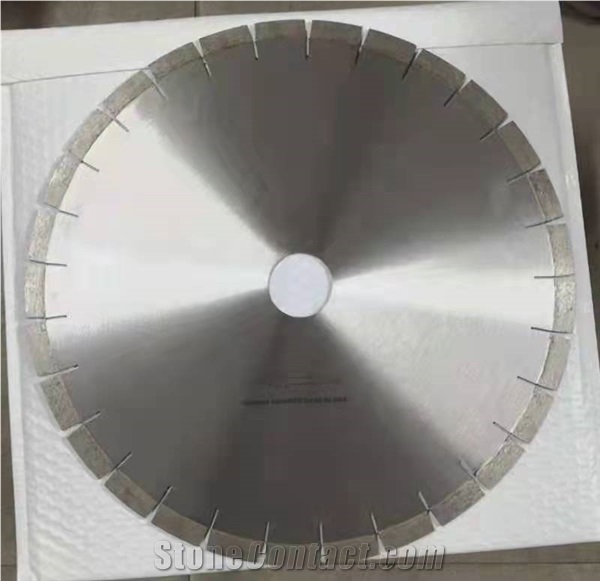

blade
