50.81 Bank Chain Saw Machine
FOB Price:
Type:
Stone Quarry MachinesStone Chain Saw MachinesBank Chain Saw Machines
Usage:
Marble, Limestone, Quartzite, Sandstone, Travertine
After-Sale
Warranty:12 Months
Install and Guarantee:Customer pay for installation
Maintenance:Online software upgrade
Supplier
Eatablished :Dec 31,1913
Main Product:
Quarry Chain Saw, Tunnel Chain Saw Machines, Squaring Chain Saw Machine, Bank Chain Saw Machines|
Machinery Function Features

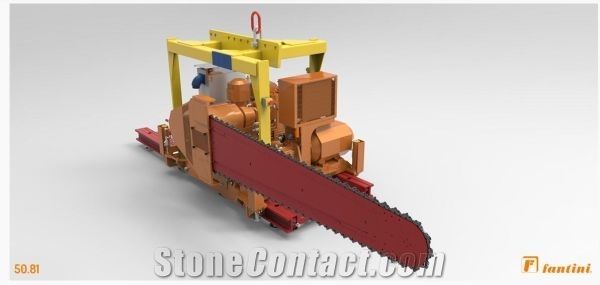

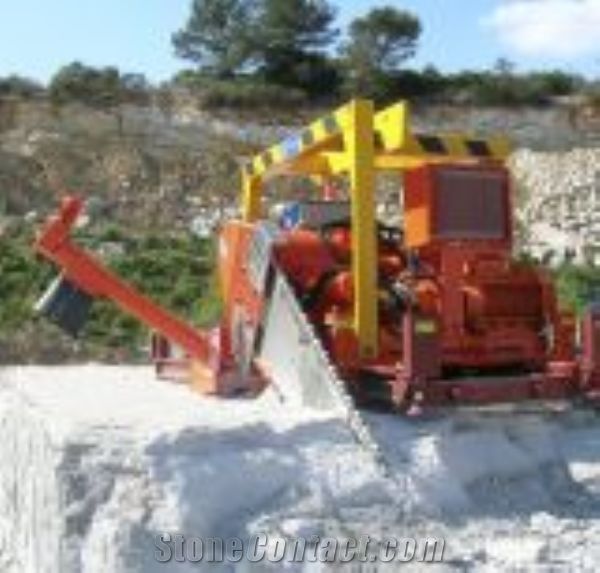

The Fantini 50.81 chain saw machine is designed for use in medium hardness stone quarries and can execute cuts to a depth of up to di 3.4 m. In the case of hard type marble and stone, the cutting depth is reduced to 2.8 m.

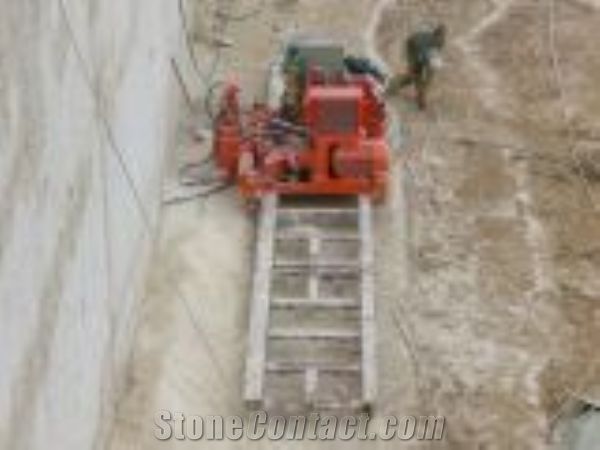

The machine can perform horizontal and vertical cuts without the need for cooling water and is available in either the modular rail (RA/P), or single rail (BU), version; in the latter configuration, the machine can be repositioned by moving it along a single rail, without the need for lifting equipment.
Technical Specifications
Installed power: 50 Kw
Weight: 5,200-5,700 Kg
Arm rotation: 180°
Chain speed: 0-0.7 m/sec
Cutting width: 38 mm
Effective cutting depth: 3.40 m max
Cutting speed: 0-13 cm/min
The technical specifications may be subject to change
Technical Data
Parameters |
Unit |
50.81 |
Overall machine length |
mm |
5900 |
Overall machine height |
mm |
1700 |
Arm rotation |
° |
180 |
Cutting speed |
cm/min |
0-13 |
Total installed power |
kW |
50 |
Chain rotation speed |
mt/sec. |
0-0.7 |
Overall machine width |
mm |
1840 |
Cutting width |
mm |
38 |
Weight |
Kg |
5200-5700 |
Effective cutting depth Max. |
mt |
3.40 |
