70RA-PD Quarry Bank Sawing Machine
FOB Price:
Type:
Stone Quarry MachinesStone Chain Saw MachinesBank Chain Saw Machines
Usage:
Marble, Limestone, Quartzite, Sandstone, Travertine
After-Sale
Warranty:12 Months
Install and Guarantee:Customer pay for installation
Maintenance:Online software upgrade
Supplier
Eatablished :Dec 31,1913
Main Product:
Quarry Chain Saw, Tunnel Chain Saw Machines, Squaring Chain Saw Machine, Bank Chain Saw Machines|
Machinery Function Features

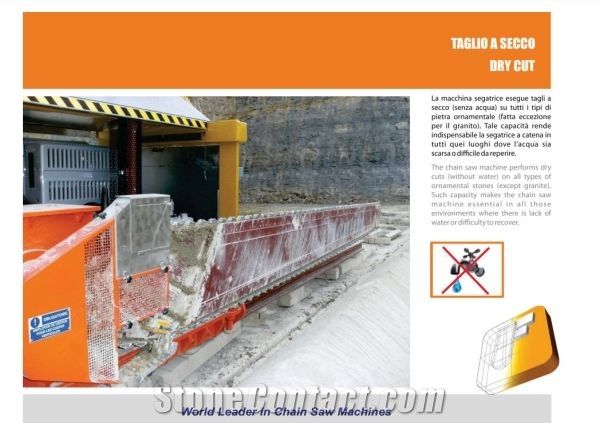

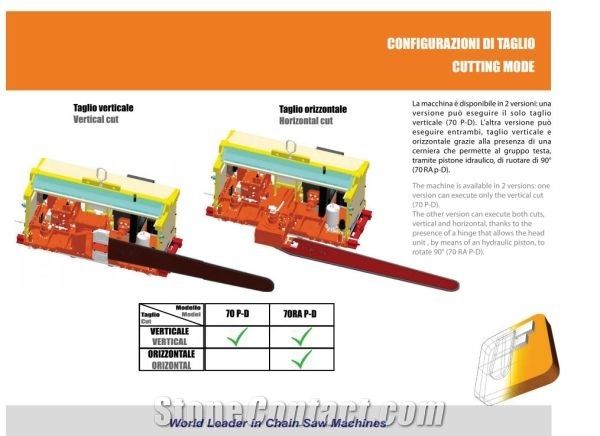

Chain Saw Model 70.RA/PD can make cuts of up to 5.1 metres, and was designed and built to make vertical and horizontal cuts on hard and/or abrasive stones without the need for cooling water.

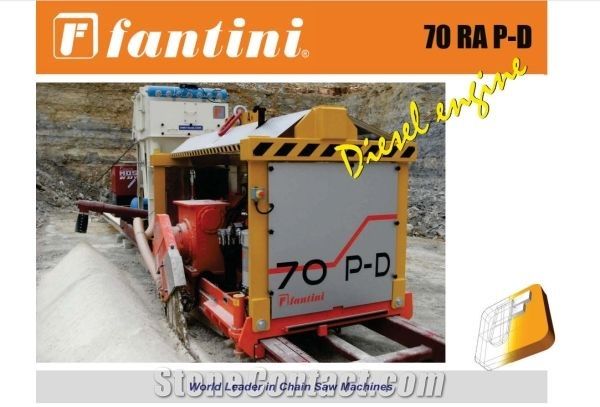

The machine is fitted with a diesel engine which allows completely autonomous operation, eliminating the need for any electrical wiring connections to generators or power grids. This model is particularly useful in working environments that are not connected to the power grid.
Technical Specifications
Installed power: 77.1 Kw at 1500 rpm
Weight: 10,000 Kg
Arm rotation: 360°
Chain speed: 0.1-0.7 m/sec
Cutting width: 38 mm

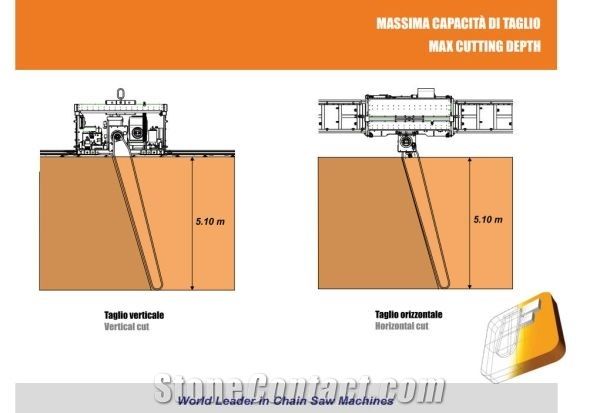

Effective cutting depth: 5.10 m max
Cutting speed: 0-13 cm/min
Technical characteristics may be subject to variations
Technical Data
Parameters |
Unit |
70.RA/PD |
Chain rotation speed |
mt/sec. |
0.1-0.7 |
Weight |
Kg |
10000 |
Arm rotation |
° |
360 |
Hydraulic oil tank capacity |
litre |
300 |
Grease tank capacity |
Kg |
30 |
Total installed power |
kW |
77.1 |
Overall machine width |
mm |
2157 |
Overall machine length |
mm |
3500 |
Overall machine height |
mm |
2724 |
Diesel Tank Capacity |
L |
130 |
Cutting width |
mm |
38 |
Noise level |
dBA |
97 |
Cutting speed |
cm/min |
0-13 |
Effective cutting depth Max. |
mt |
5.1 |
