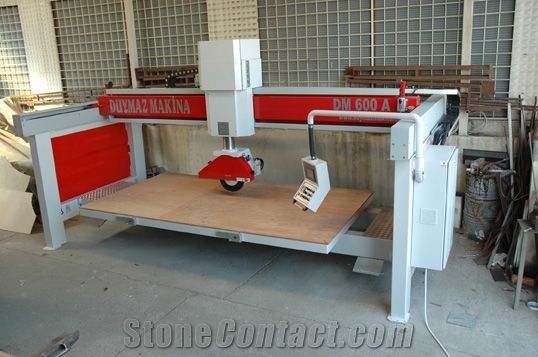

DM600-A Bridge Cutting Machine
FOB Price:
Type:
Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine
Usage:
Marble, Limestone, Onyx, Quartzite, Sandstone, Travertine
After-Sale
Warranty:12 Months
Install and Guarantee:Customer pay for installation
Maintenance:Online software upgrade
Supplier
Eatablished :Dec 31,1975
Main Product:
Bridge Cutting Machine, Mermer Kesim Makinalari, Granit Kesim Makinalari|
You may also like
Machinery Function Features
Duymaz Makina olarak müşteri memnuniyetini, satış ve satış sonrası bakım hizmetlerinde kendimize en önemli misyon edindik.
Akdeniz Sanayi Sitesi 5004 Sk. N.133 Antalya / TÜRKİYE
T: +90.242.221.46.07
F: +90.242.221.12.40
E: [email protected]
http://duymazmakina.com

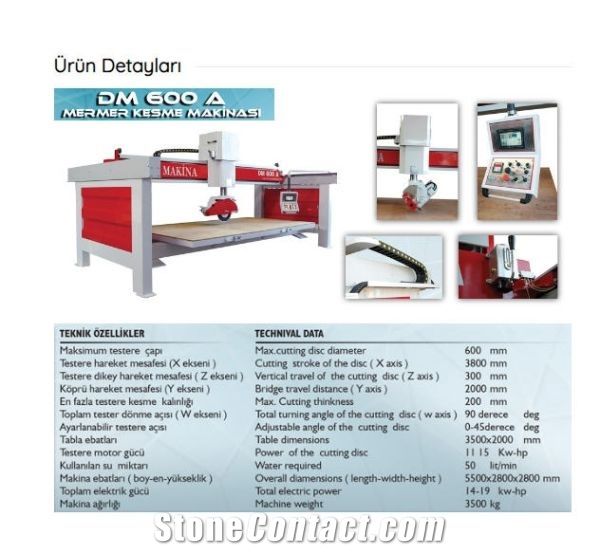

Technical Data
Parameters |
Unit |
DM600-A |
Head raising/lowering stroke(Z axis travel) |
mm |
300 |
Max.length of the cut slab |
mm |
3500 |
Machine width |
mm |
2800 |
Cooling water requirement(1.5 bar min. pressure) |
l/min |
50 |
Machine height |
mm |
2800 |
Dimensions of the work table(L×W) |
mm |
3500x2000 |
Approximate weight without table |
kg |
3500 |
C axis blade rotation |
° |
0-45 |
Machine length |
mm |
5500 |
Max. workable thickness |
mm |
200 |
Vertical cutting spindles motor power |
kW |
11 |
Max.width of the cut slab |
mm |
2000 |
Horizontal stroke(X axis travel) |
mm |
3800 |
Tools holder head inclination(A axis blade rotation) |
° |
90 |
Disc diameter |
mm |
600 |
Bridge transversal stroke(Y axis travel) |
mm |
2000 |
