Joborn CNC AI Vision Intellegent 5 Axis Bridge Saw Cutting Machine

Name: Joborn CNC AI Vision Intellegent 5 Axis Bridge Saw Cutting Machine
Brand: FUJIAN JOBORN MACHINERY CO.,LTD.
SKU: 6621
Price: 38000 USD
Availability: InStock

FOB Price:$38000-43000

Type: Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine

Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine

After-Sale

Lead Time: 25~30 days after prepayment received

Warranty:12 Months

Install and Guarantee:Customer pay for installation, Remote guidance installation, Third-party team installation

Maintenance:Online software upgrade, Regular guidance & maintenance, Remote troubleshooting

Supplier

FUJIAN JOBORN MACHINERY CO.,LTD.

JOBORN MACHINERY

China level 4YR

Eatablished :Jul 28,2015

Main Product:

Stone Block Cutting Machine, Bridge Saw Machine, Stone Polishing Machine, CNC Bridge Cutting Machine, Bridge Cutting Machine, Stone Profiling Machine|

Contact supplier

Start Order

You may also like

CNC 450/600/700-5 AI Bridge Cutting Machine

4 Axis CNC Bridge Saw 4+1 Granite And Marble Stone Cutting Machine

5 Axis CNC Stone Cutting Bridge Saw For Granite

Latest 5 Axis CNC Marble Stone Bridge Saw Machine Assembly Line

K 900 Plus Cnc Saw 5 Axes

Product Detail
Company Profile

Overview
Components
Video
Customer Case

Machinery Function Features

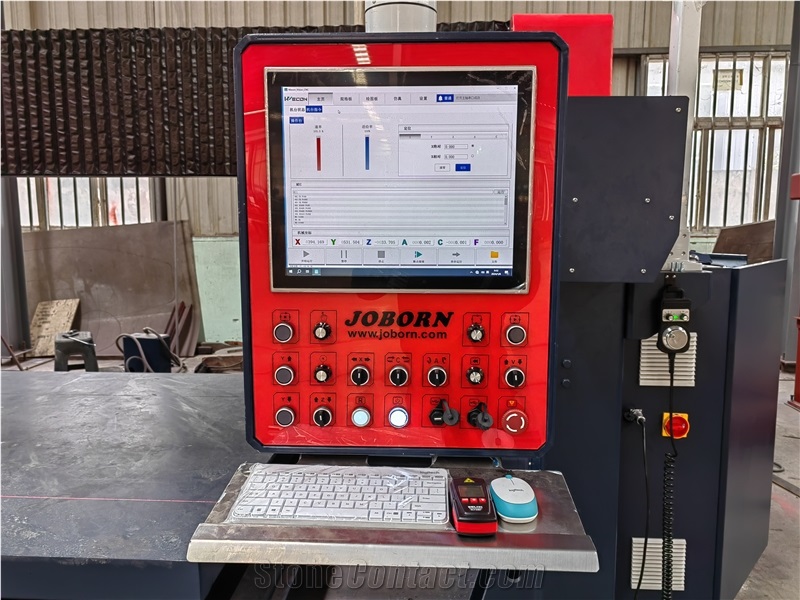

Main Feature: 1.5 Axis linkage control with CNC control system; 2.Easy to use interface with 17" color touch-screen; 3.The machine is equipped with an industrial computer, embedded touch screen, supports CAD file import; 4.The machine adopts integrated structure, the frame and beam are welded by high-quality carbon steel plate and profiles, solid and reliable, high stability; 5.The X-axis lateral movement adopts servo motor + high-precision planetary reducer + linear guide rail, and then with high-precision helical rack and pinion drive; 6.Y-axis longitudinal movement adopts double servo motor + high-precision planetary reducer + linear guide rail, and then with high-precision helical rack and pinion drive; 7.The Z-axis main machine lifting adopts servo motor + high-precision planetary reducer + linear guide rail, and then with high-precision ball screw drive; 8.A-axis head tilt rotation 0-90° and C-axis head plane rotation 0-360° are driven by servo motor + precision robot RV reducer, supporting five-axis linkage, high dimensional precision and shape precision; 9.Working platform can tilt 85 degrees, easy for slabs loading; 10.Photo taking & tool setting function; 11.Milling cutter function; 12.Suction cup function(optional); 13.Thickness measurement function(optional);

Technical Data

Parameters	Unit	CNC450-5 AI	CNC600-5 AI	CNC700-5 AI
Machine width (W)	4	3400	3400	3400
Maximum workable thickness	4	100	180	230
Average level of sound power	66	70	70	70
Maximum cutting width	4	1800	1800	1800
Cooling water (minimum pressure 1.5 bar)	30	3	3	3
Machine height (H)	4	3900	3900	3900
Machine length (L)	4	5800	5800	5800
Discs number	73	1	1	1
Min. workable material width	4	20	20	20
Max. workable material width	4	3000	3000	3000
Discs diameter	4	450	600	700
Installed electrical power	kw	27	31	34
Minimum strip length	4	100	100	100

Software

CNC control system. The machine is equipped with an industrial computer, an embedded touch screen, supports CAD file import, is equipped with a vision system, and is equipped with a high-definition industrial-grade camera to take pictures of the plates to be processed on the machine, automatically locate the position of the plates, and automatically generate programs through the intelligent system to cut the work;

Work Example

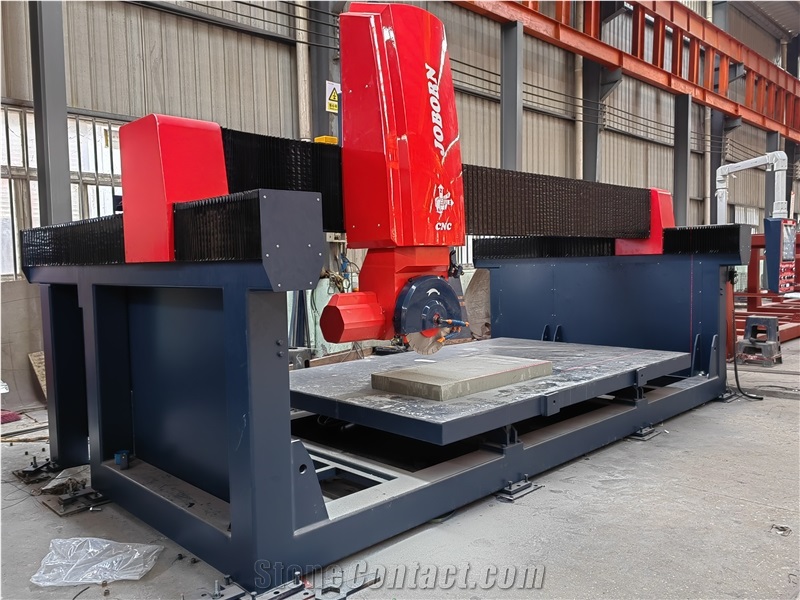

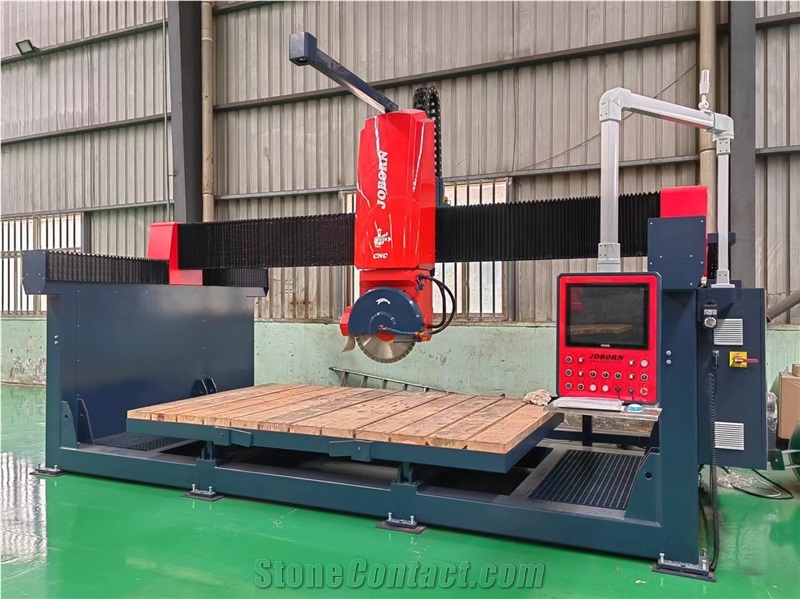

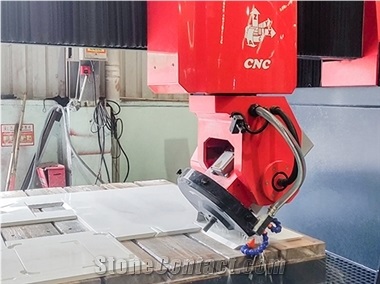

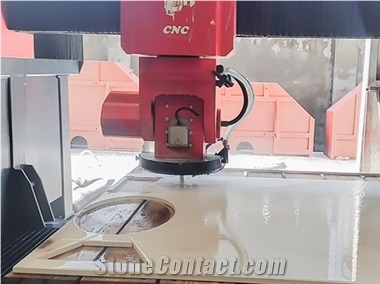

CNC450/600/700-5 AI five-axis CNC bridge cutting machine. This series adopts industrial computer and is equipped with Windows system, which can realize manual programming or PC programming and other programming methods to automatically complete processing operations. Cutting, grooving, countertop processing, special-shaped processing, etc.,

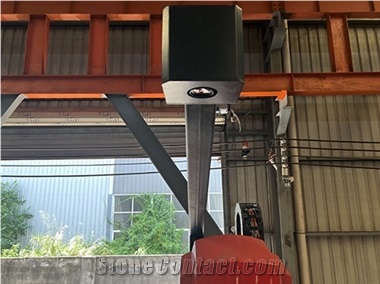

Standard camera function for visualization and easy operation. The tool setting function can measure the diameter of the saw blade in real-time and compensate for wear and tear,it could ensure makes the processing non stop.

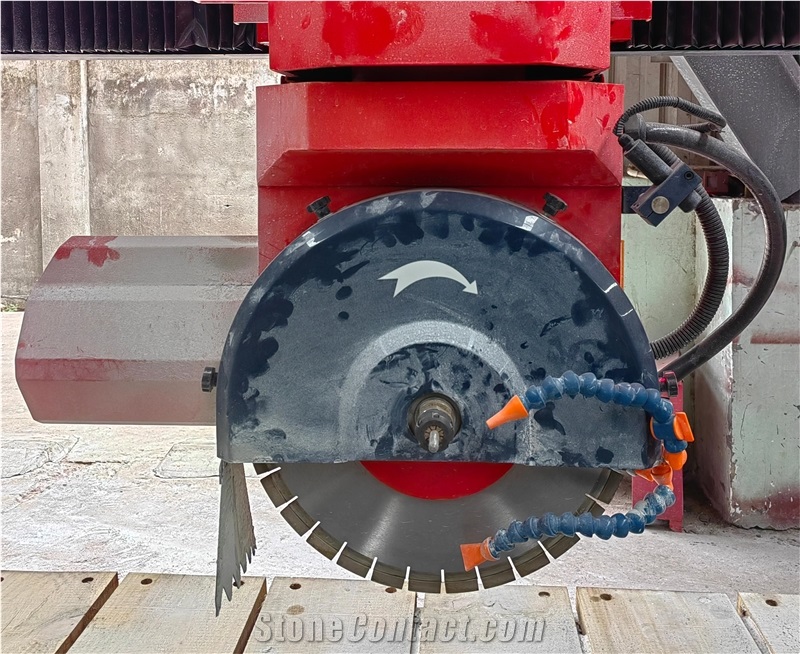

The structure adopts an integral steel frame, which has been treated with stress relief in multiple processes, and has a stable structure, easy installation and high precision. The main motor adopts the spindle motor, which can be equipped with a milling cutter.

In terms of transmission, the XY axis adopts high-precision rack and pinion transmission and high-precision linear guide rail guidance. The Z axis is driven by a ball screw and guided by a high-precision linear guide. A-axis and C-axis all use precision robot reducer.

The whole machine has high positioning accuracy, repeated positioning accuracy, good cutting accuracy and high stability, and is especially suitable for the processing of high-value and large-sized granite, marble and slate.

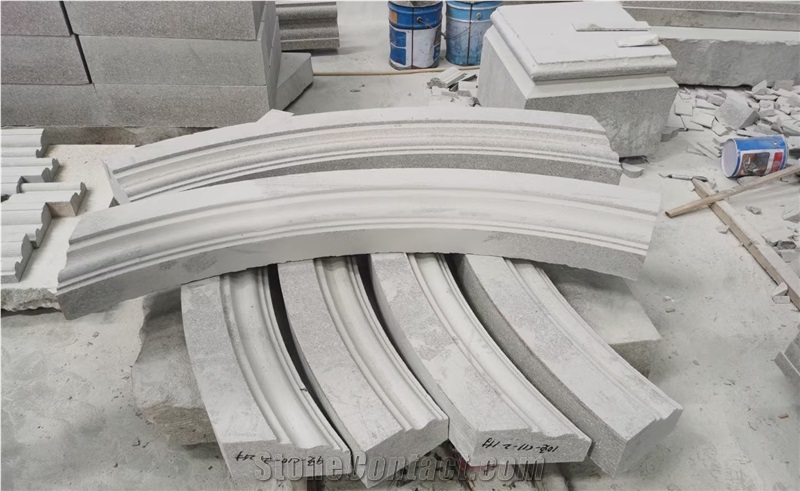

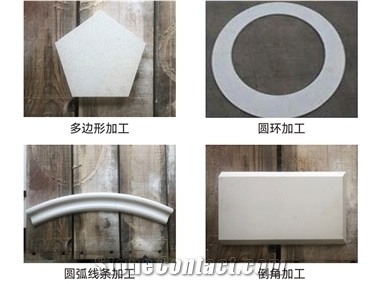

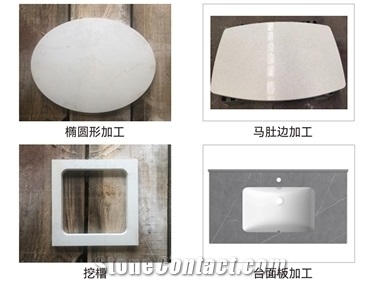

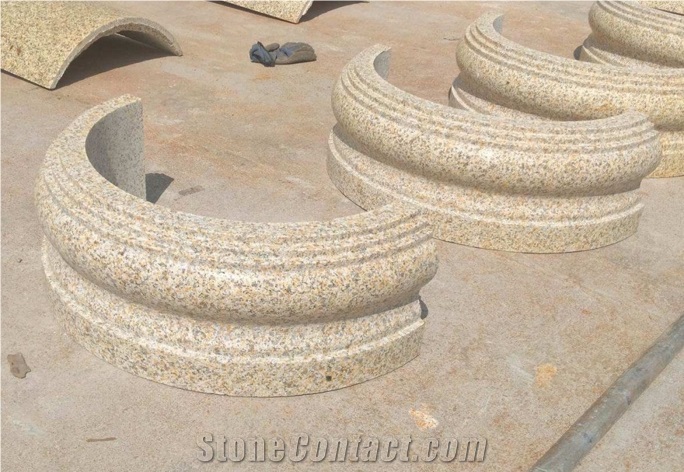

Processed Stone Photos
